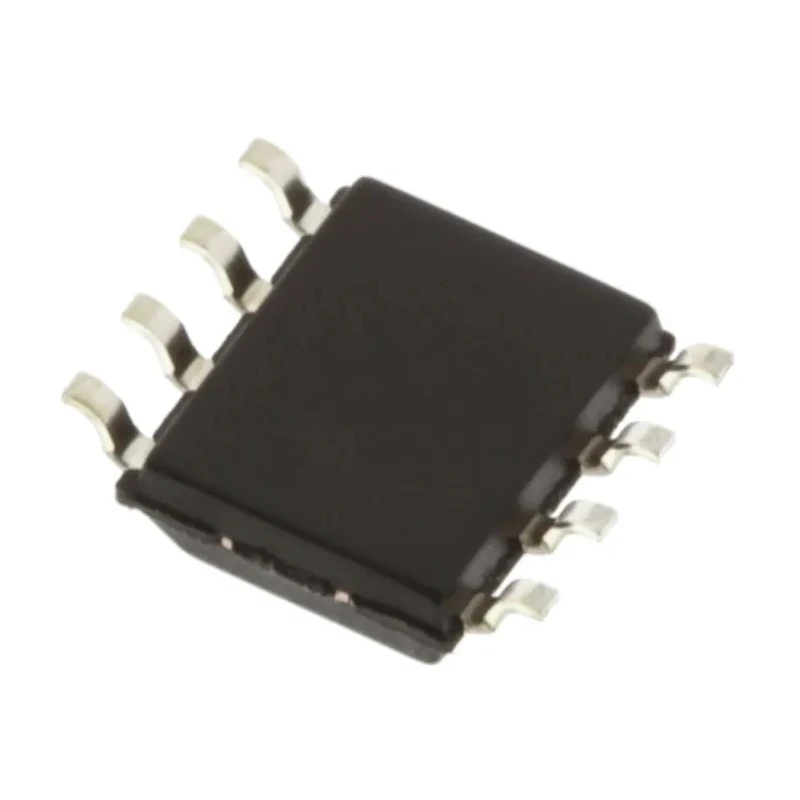

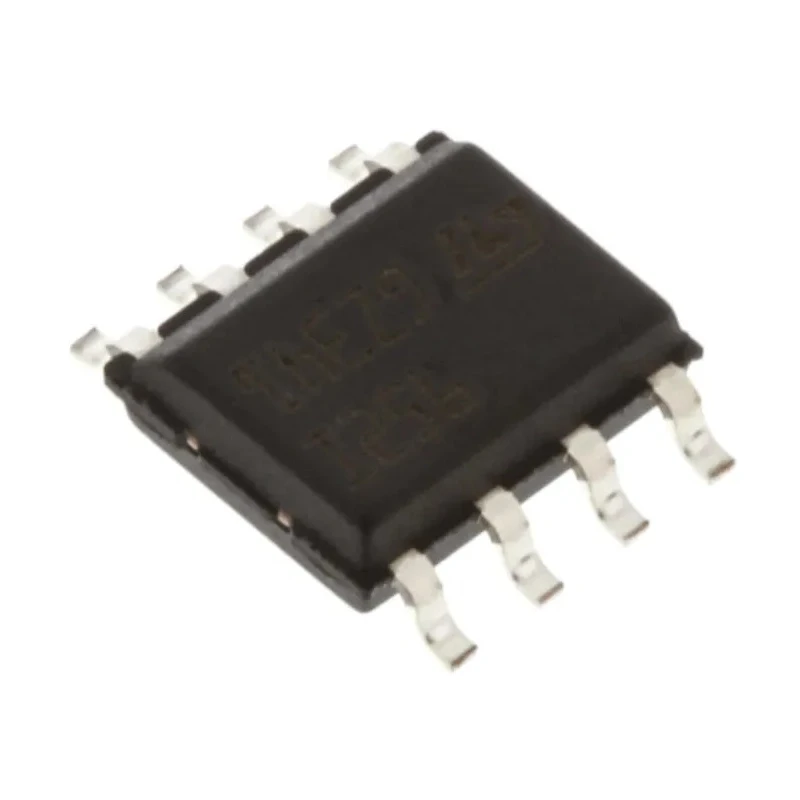

STMicroelectronics Operational Amplifier 3 MHz, 12V SOIC Dual Channel 8-Pin TS952IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS952IDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS952 |
| Output Current | 10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7535Brand: STMicroelectronicsManufacturers Part No.: TS952IDT |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 8 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 80 nA |
| Low current consumption | 0.9 mA (at 3 V) |
Key Features
- Operates with supply voltage from 3 V to 12 V.
- Low input offset voltage of 8 mV ensures precision performance.
- High slew rate of 1 V/μs enables fast response.
- Input bias current of 200 nA supports low power consumption.
- Wide operating temperature range from -40°C to 125°C.
- Complies with RoHS and automotive standard AEC-Q100.
- Output current capability of 10 mA supports various load requirements.
- Extremely low input offset current of 80 nA contributes to accuracy.
Product Description
STMicroelectronics TS952IDT is a dual channel operational amplifier designed for precise, low distortion signal amplification with a gain bandwidth product of 3 MHz. Packaged in an 8-pin SOIC surface mount, it operates with a supply voltage range between 3 V and 12 V, facilitating versatility in electronic circuit designs.
This amplifier supports rail-to-rail input common mode voltage and output voltage swing, providing improved signal handling at low and high voltage extremes. It exhibits low input offset voltage (8 mV) and input offset current (80 nA), which contribute to high-accuracy analogue signal processing.
Featuring a slew rate of 1 V/μs and low input bias current of 200 nA, the TS952IDT ensures responsive and energy-efficient operation. Its compact physical dimensions (4.9 mm x 3.9 mm x 1.25 mm) enable integration in space-constrained applications.
Operating temperature ranges from -40°C to 125°C make it suitable for industrial and automotive environments. The device is RoHS compliant and meets AEC-Q100 automotive standards, indicating reliability and environmental safety.
Supply voltage from 3 V to 12 V supports diverse applications. Dual channel configuration enhances circuit design flexibility. Low distortion and real rail-to-rail input/output for precision. Low current consumption of 0.9 mA at 3 V minimizes power usage.
Output current capability of 10 mA suits various load conditions.
This operational amplifier is ideal for industrial, automotive, and electronic component manufacturing applications where precision and reliability are demanded. Its compact SOIC package and robust specifications make it a strong candidate for integration in demanding designs requiring high speed and low noise analog amplification.
Enhance your circuit designs with STMicroelectronics operational amplifiers available for streamlined procurement and rapid implementation. Browse EnvMart categories for more semiconductor components and Operational Amplifier variants from STMicroelectronics and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, allowing for effective signal amplification in various applications.
It operates with a supply voltage range from 3 V to 12 V, providing flexibility for different electronic circuit designs.
This operational amplifier has an output current capability of 10 mA, which supports various load requirements in circuit designs.
The dimensions of this model are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height, making it suitable for space-constrained applications.
The input offset voltage is 8 mV, contributing to its precision performance in analog signal processing.
It operates within a temperature range from -40°C to 125°C, making it suitable for both industrial and automotive environments.
The slew rate is 1 V/μs, which enables fast response times in signal processing applications.
The input bias current is 200 nA, which supports low power consumption during operation.
This model is packaged in an 8-pin SOIC surface mount, facilitating easy integration into electronic circuits.
It complies with the AEC-Q100 automotive standard, indicating its reliability for automotive applications.
The input offset current is 80 nA, which contributes to the accuracy of the amplifier in signal processing tasks.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
