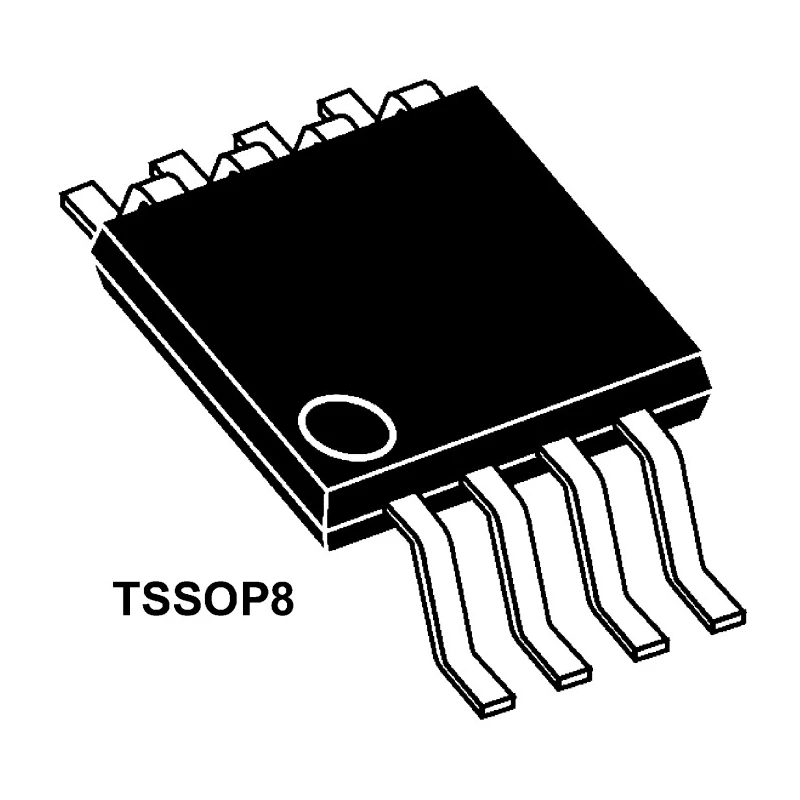

STMicroelectronics Operational Amplifier Dual Channel 1.1 MHz Gain Bandwidth, 8-Pin TSSOP LM358PT

STMicroelectronics LM358PT is a dual channel operational amplifier designed for surface mount applications with an 8-pin TSSOP package. Featuring a gain bandwidth product of 1.1 MHz, this component is ideal for precision electronic circuits requiring low power consumption and stable frequency response.

The LM358PT comprises two independent, internally frequency-compensated amplifiers capable of operating from a single power supply voltage ranging between 3V and 5V. It exhibits a low input bias current of 20 to 150 nA and an input offset voltage of 2 to 7 mV, enabling accurate amplification of weak signals with minimal drift.

Operating temperature range extends from 0°C to 70°C, making it suitable for industrial, automotive, and commercial applications. The device complies with the automotive standard AEC-Q100, ensuring robustness and reliability under demanding environmental conditions.

The compact form factor with dimensions of 3 mm length, 4.4 mm width, and 1 mm height allows for efficient PCB space utilization. The maximum output current rating of 60 mA supports a wide variety of output drive requirements in analog signal processing, sensor interfacing, and control systems.

Dual high gain, internally frequency-compensated operational amplifiers. Single power supply operation from 3V to 5V. Input bias current of 20 to 150 nA ensuring low leakage currents. Unity gain bandwidth of 1.1 MHz for wide frequency response.

Low input offset voltage between 2 to 7 mV for accurate signal conditioning. Slew rate of 0.6 V/μs for moderate rate signal changes. Automotive certified to AEC-Q100 standard. Compact 8-pin TSSOP surface mount package. Operating temperature range of 0°C to 70°C.

Maximum output current of 60 mA.

This operational amplifier is broadly applicable in industrial instrumentation, automotive electronics, power supplies, and general-purpose linear applications. Its design supports stable operation in noisy electrical environments and is suitable for analog signal conditioning, filtering, and amplification tasks.
