STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTB24-800BWRG

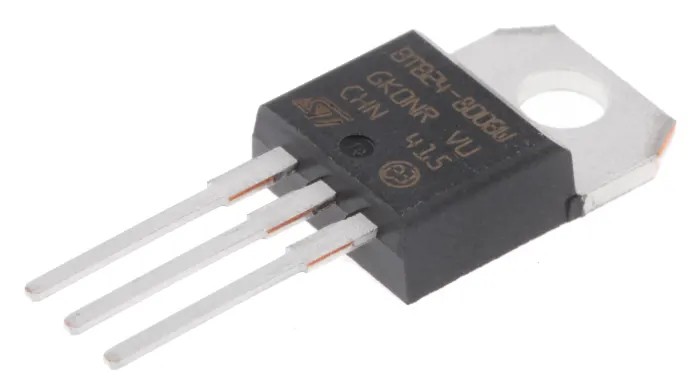

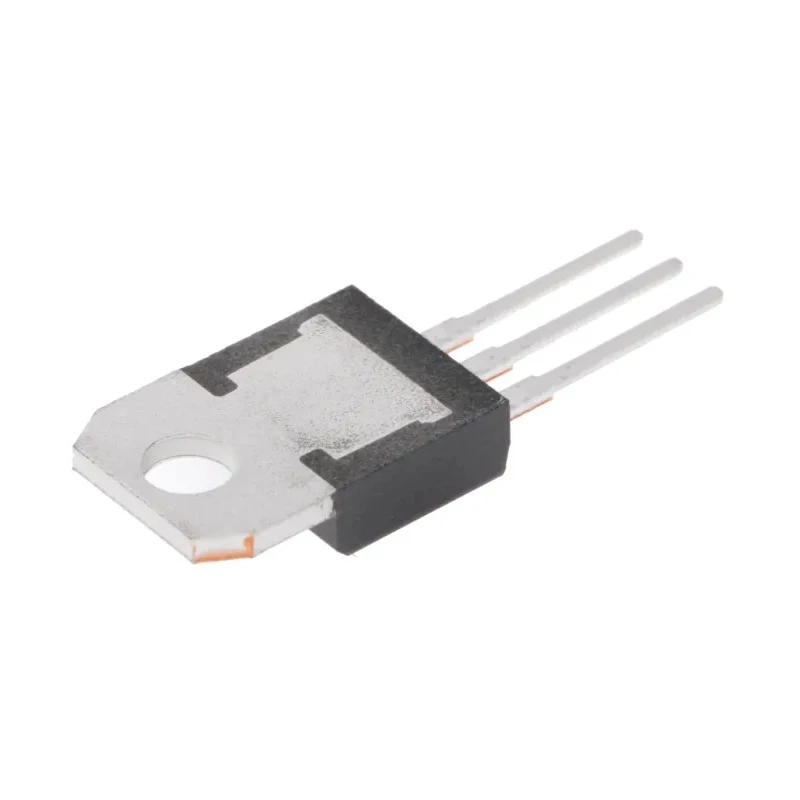

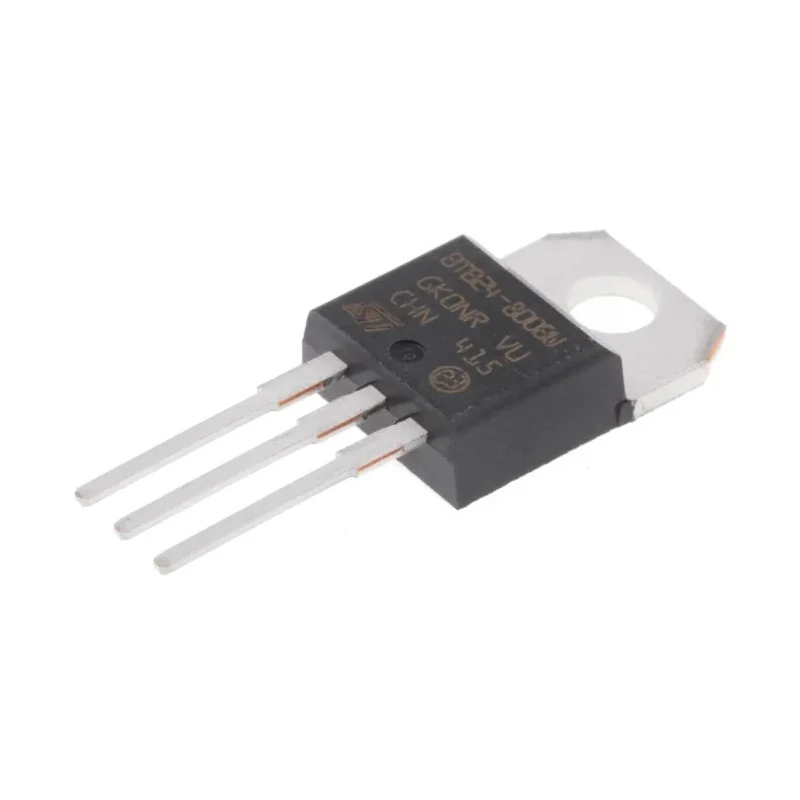

STMicroelectronics BTB24-800BWRG is a high-performance TRIAC component in a through-hole TO-220 package designed for robust AC power switching and control. It features a peak repetitive voltage rating of 800 V and a rated average on-state current of 25 Amperes, making it suitable for use in household appliances, industrial equipment, and motor control systems.

This TRIAC offers a low gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA, enabling efficient and precise triggering. It also supports surge currents up to 260 A, providing enhanced reliability during transient load events. The device maintains conduction with a maximum holding current of 75 mA and exhibits a low peak off-state current of 5 μA for high efficiency and reduced power loss.

The compact form factor, with dimensions of approximately 9.15 mm in height and 10.4 mm in length, allows easy PCB integration, especially where through-hole mounting is preferred for mechanical robustness. The operating temperature range from -40°C to 125°C ensures stable operation in a variety of environmental conditions.

Ideal for industrial, household, and commercial applications involving AC power control, the BTB24-800BWRG enables reliable switching performance in circuits requiring single TRIAC configuration.

This TRIAC supports a rated average on-state current of 25A. Features a TO-220 package type suitable for through-hole mounting. Maximum gate trigger current is 50 mA allowing precise triggering control. Can operate reliably from -40°C up to 125°C operating temperatures.

Peak surge current rating of 260 A accommodates transient load conditions. Single configuration with 3 pins for easy circuit integration. Repetitive peak off-state current is very low, rated at 5 μA. Maximum holding current is 75 mA to maintain conduction after triggering.

The device has a compact height of 9.15 mm and length of 10.4 mm. Designed without automotive standard certification but suitable for many electrical and power control applications. Explore more discrete semiconductor components and TRIACs from STMicroelectronics and other leading manufacturers at EnvMart to find the perfect fit for your application needs.
