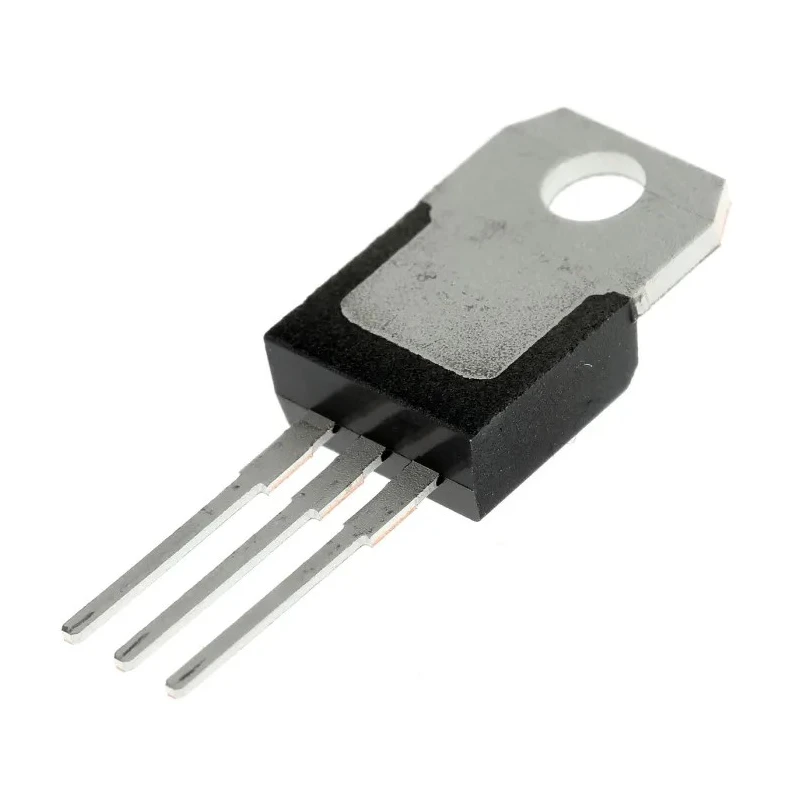

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA08-600TWRG

STMicroelectronics BTA08-600TWRG is a robust through hole 3-pin TRIAC designed for power control and switching applications in industrial and electronic circuits. It delivers an 8 A average on-state current capability, making it suitable for moderate power devices.

Packaged in the widely used TO-220 format, this TRIAC enables easy mounting and heat dissipation, ensuring enhanced reliability for demanding electrical loads.

The device features a maximum gate trigger current of 5 mA and gate trigger voltage of 1.3 V, providing low-power triggering characteristics which improves overall circuit efficiency. It supports a repetitive peak reverse voltage of 800 V and a surge current rating of up to 84 A, capable of handling transient electrical stresses.

Operating over a wide temperature range of -40°C to 125°C, it is suitable for use in various industrial settings including manufacturing equipment, HVAC controls, lighting systems, and motor speed controllers.

The compact height of 15.9 mm and length of 10.4 mm make it a space-saving solution while maintaining high performance. Its single configuration and 3-pin design simplify integration into custom circuit boards.

This TRIAC provides a peak gate power dissipation of 1 W and maximum holding current of 10 mA, ensuring both endurance and low power consumption during operation. Supports rated average on-state current of 8 A for reliable operation.

Packaged in TO-220 for easy mounting on PCBs or heat sinks. Maximum gate trigger current of 5 mA ensures efficient triggering. Repetitive peak reverse voltage rating of 800 V ideal for high voltage circuits. Surge current rating of 84 A to handle transient overloads.

Designed for operating temperatures from -40°C to 125°C for robustness. Compact size with dimensions 15.9 mm height by 10.4 mm length. Single configuration TRIAC with 3 pins for ease of use. Peak gate power dissipation rated at 1 W to prevent device damage.

Maximum holding current is 10 mA to optimize energy consumption.

This product is ideal for industrial, manufacturing, electronics assembly, and electrical appliance control applications. It is compatible with a range of PCB designs and offers dependable performance in both commercial and consumer electronic devices.

Explore the line of STMicroelectronics TRIACs and discrete semiconductors at EnvMart for high quality and reliability in power switching solutions.
