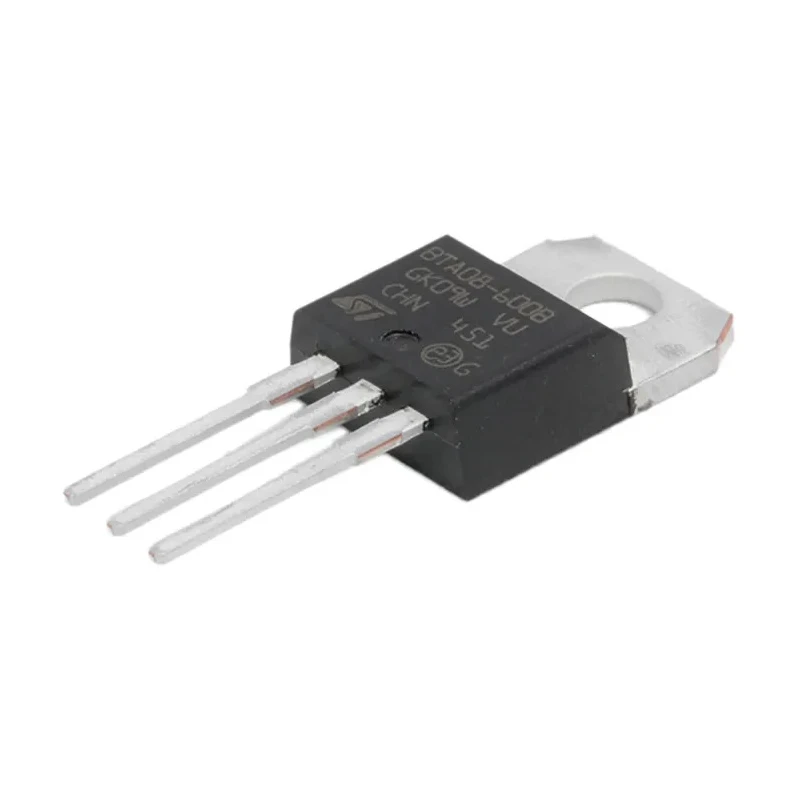

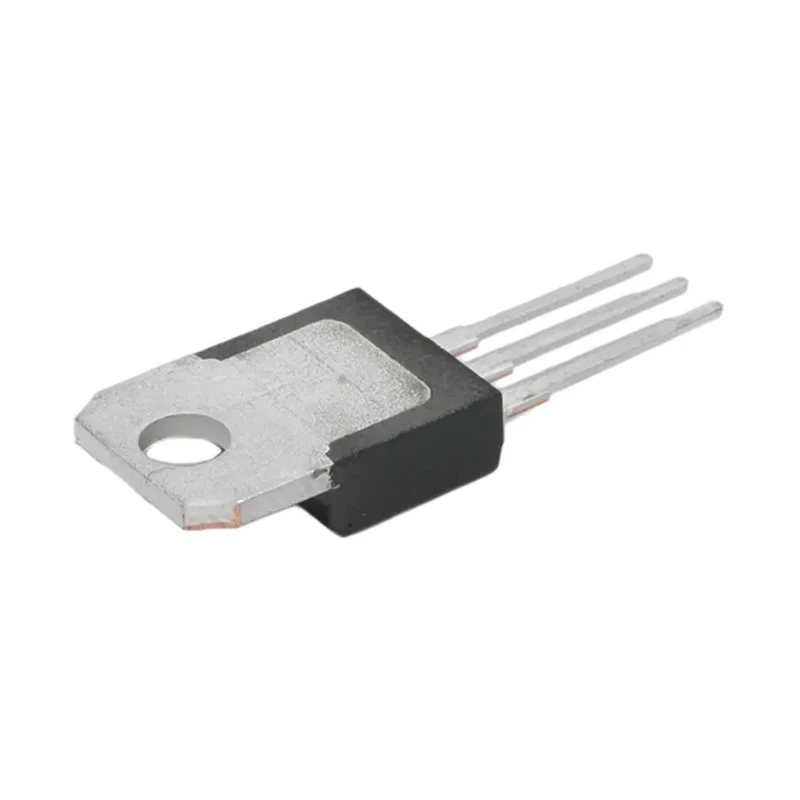

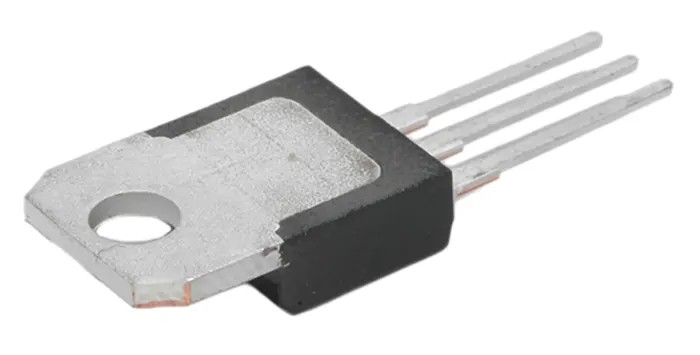

STMicroelectronics Through Hole 3-Pin TRIAC, 8A On-State Current, 800V Repetitive Peak Reverse Voltage BTA08-600BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA08-600BRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-2564PBrand: STMicroelectronicsManufacturers Part No.: BTA08-600BRG |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 84A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- The TRIAC supports a rated average on-state current of 8A for efficient power handling.
- It features a repetitive peak reverse voltage of 800V suitable for medium voltage AC control.
- Maximum gate trigger voltage is 1.3V and maximum gate trigger current is 100mA for reliable switching.
- The device comes in a TO-220 through-hole package for effective heat dissipation.
- Operating temperature ranges from -40°C to 125°C for versatile environment applicability.
- Peak on-state voltage is 1.55V to minimize conduction losses during operation.
- Surge current rating of 84A allows withstanding transient electrical loads.
- Compact 3-pin single configuration simplifies circuit design and integration.
Product Description
STMicroelectronics BTA08-600BRG is a high-quality through-hole 3-pin TRIAC semiconductor designed for industrial and commercial applications requiring robust AC power switching and phase control. With a rated average on-state current of 8A and repetitive peak reverse voltage of 800V, this device is suitable for use in motor controls, lighting dimmers, heater circuits, and other power control systems.
The TRIAC features a maximum gate trigger voltage of 1.3V and a gate current trigger of 100mA, ensuring efficient triggering with minimal power requirements. The TO-220 package facilitates effective heat dissipation and mechanical stability in through-hole mounting designs.
Designed for durability, its operating temperature range of -40°C to 125°C ensures reliable performance in harsh environmental conditions common in industrial control equipment and home appliance electronics.
Additional key parameters include a peak on-state voltage of 1.55V, a peak gate power dissipation of 1W, a surge current rating of 84A, and a maximum holding current of 50mA. The device’s compact physical dimensions (length 10.4mm and height 15.9mm) enable integration in space-constrained circuit layouts.
The TRIAC’s single configuration and 3-pin design simplify circuit integration. It does not carry specific certifications or automotive standards but offers trusted STMicroelectronics semiconductor quality. The device is RoHS compliant, ensuring adherence to modern environmental standards.
This component is widely used in industrial electronics, power management solutions, manufacturing equipment, and HVAC controls, providing reliable AC switching capabilities. Choose the STMicroelectronics BTA08-600BRG for your discrete semiconductor needs requiring stable and efficient TRIAC switching performance.
Explore more discrete semiconductors and TRIACs in our Electronics & Electricals category to enhance your electronic project or industrial automation system.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTA08-600BRG has a rated average on-state current of 8A, making it suitable for efficient power handling in various applications.
This model supports a maximum repetitive peak reverse voltage of 800V, suitable for medium voltage AC control.
The device comes in a TO-220 package type, which is designed for through-hole mounting and effective heat dissipation.
The surge current rating for the BTA08-600BRG is 84A, allowing it to withstand transient electrical loads.
The maximum gate trigger voltage for this model is 1.3V, which ensures reliable switching with minimal power requirements.
The operating temperature range of the BTA08-600BRG is from -40°C to 125°C, making it versatile for various environmental conditions.
The peak on-state voltage for the BTA08-600BRG is 1.55V, which helps minimize conduction losses during operation.
The maximum holding current for this TRIAC is 50mA, which is important for its operation in various circuits.
This TRIAC features a compact 3-pin configuration, simplifying circuit design and integration.
The height of the BTA08-600BRG is 15.9mm and its length is 10.4mm, allowing for integration in space-constrained layouts.
This TRIAC is commonly used in motor controls, lighting dimmers, heater circuits, and other power control systems.
Yes, the BTA08-600BRG is RoHS compliant, ensuring it adheres to modern environmental standards.
