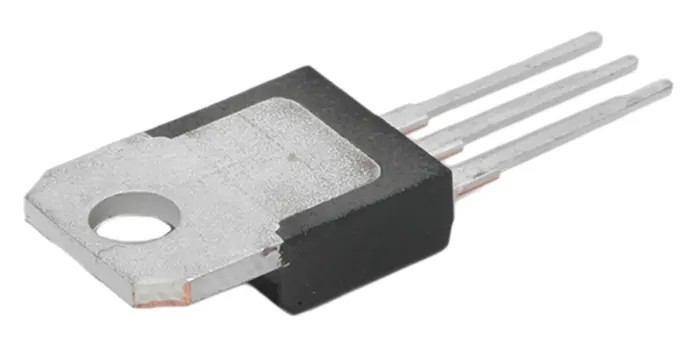

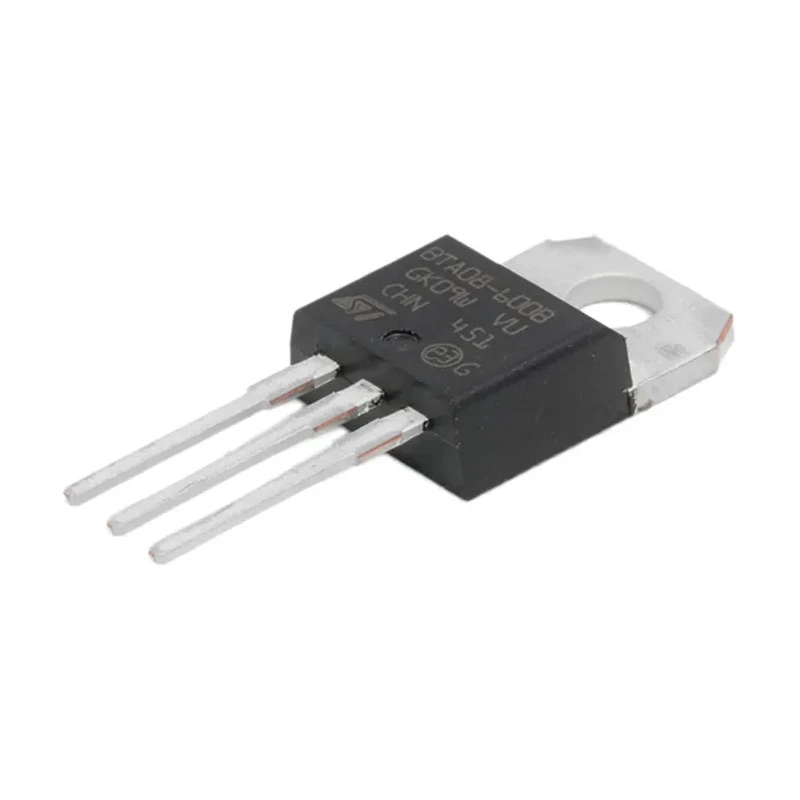

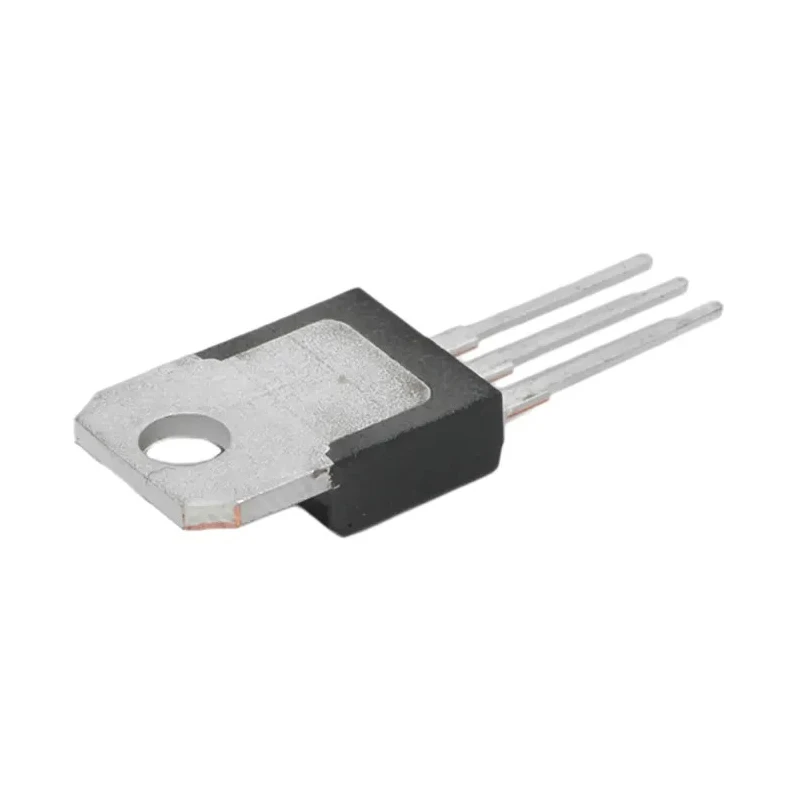

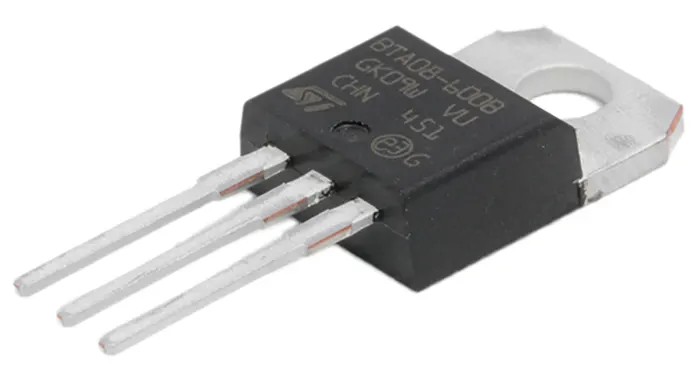

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA08-600BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA08-600BRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-2564Brand: STMicroelectronicsManufacturers Part No.: BTA08-600BRG |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 84A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 8 A suitable for medium power control.
- TO-220 package with through hole mounting for reliable PCB integration.
- Maximum gate trigger current of 100 mA ensures efficient triggering.
- Repetitive peak reverse voltage of 800 V withstands high voltage spikes.
- Operates in temperature range from -40°C to 125°C for harsh environments.
- Peak gate power dissipation of 1 W provides handling of gate drive energy.
- Compact size with height 15.9 mm and length 10.4 mm enables space-efficient designs.
- Single configuration TRIAC with 3 pins for switching AC loads.
Product Description
STMicroelectronics BTA08-600BRG is a high-performance TRIAC semiconductor device designed for power control and switching in industrial, commercial, and consumer electronics.
This 3-pin TRIAC supports an 8 A rated average on-state current and withstands repetitive peak reverse voltage up to 800 V, making it suitable for controlling moderate power AC loads.
The device features a TO-220 package with through hole mounting, which facilitates strong mechanical and electrical connections on printed circuit boards commonly used in power electronics.
The maximum gate trigger voltage of 1.3 V and a gate trigger current of 100 mA allow for precise and reliable triggering, while the surge current rating of 84 A ensures robust operation during transient overloads.
Operating temperature range from -40°C to 125°C enables usage in demanding environments, including industrial machinery and HVAC systems. The compact dimensions, with a height of 15.9 mm and length of 10.4 mm, allow integration into space-constrained designs.
Typical applications include industrial process control, lighting regulation, motor speed controls, and home appliance power modulation. Rated average on-state current 8 A. Repetitive peak reverse voltage 800 V. Gate trigger voltage 1.3 V and trigger current 100 mA.
Through hole TO-220 package. Operating temperature from -40°C to 125°C. Surge current rating 84 A. Compact size for PCB mounting. Single configuration with 3 pins. Peak on-state voltage 1.55 V. Peak gate power dissipation 1 W.
This product is new and made in India by STMicroelectronics. It is categorized under discrete semiconductors in industrial and electronic component applications. Explore EnvMart’s extensive electronic components catalog for reliable power semiconductors suited for various engineering and manufacturing needs.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTA08-600BRG has a rated average on-state current of 8 A, making it suitable for medium power control applications.
This TRIAC can withstand a repetitive peak reverse voltage of up to 800 V, allowing it to handle high voltage spikes effectively.
The BTA08-600BRG features a maximum gate trigger voltage of 1.3 V and a maximum gate trigger current of 100 mA for efficient triggering.
This model has a height of 15.9 mm and a length of 10.4 mm, making it compact for PCB integration.
The operating temperature range for the BTA08-600BRG is from -40°C to 125°C, suitable for harsh environments.
This TRIAC has a surge current rating of 84 A, ensuring robust operation during transient overloads.
The BTA08-600BRG is packaged in a TO-220 format, designed for through hole mounting on PCBs.
The maximum holding current for the BTA08-600BRG is 50 mA, which is critical for maintaining its on-state.
Typical applications for this TRIAC include industrial process control, lighting regulation, motor speed controls, and home appliance power modulation.
The peak gate power dissipation for the BTA08-600BRG is 1 W, allowing it to handle gate drive energy effectively.
This model features a single configuration with 3 pins, facilitating its integration into various circuits.
The BTA08-600BRG is manufactured in India by STMicroelectronics, ensuring compliance with industry standards.
