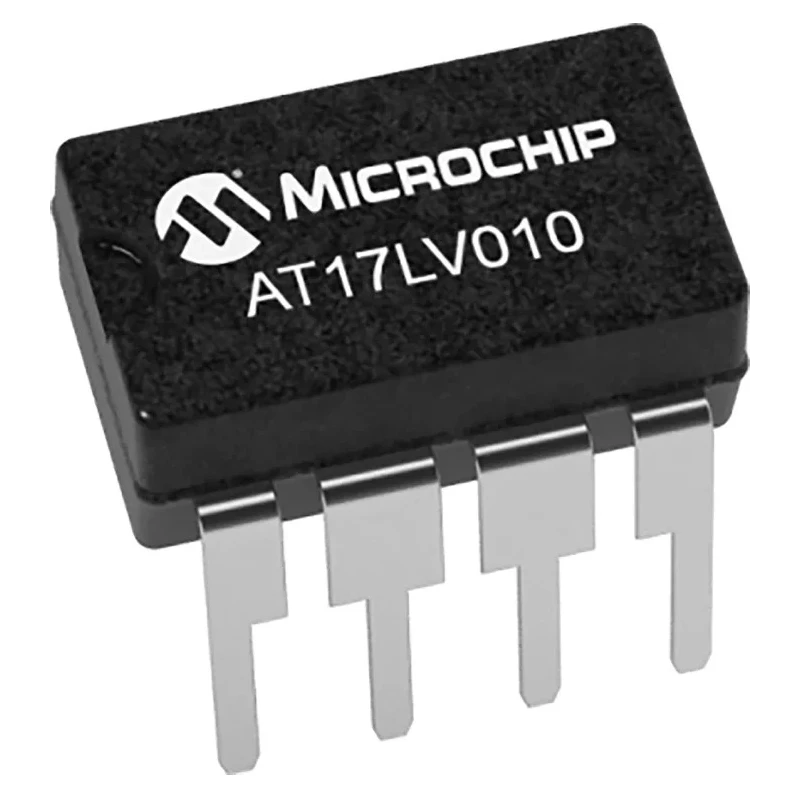

Microchip 1 MB EEPROM 8-Pin PDIP 2 Wire Memory AT17LV010-10PU

Microchip AT17LV010-10PU is a 1 MB Serial EEPROM device housed in an 8-pin PDIP through-hole package, designed for efficient programming and configuration of FPGA devices via a 2-wire interface. This memory chip offers a storage capacity of 1 megabyte (1M Bit organization) with a single bit per word, making it suitable for a wide range of industrial and commercial electronic applications.

Operating across a voltage range of 3 V to 5.5 V, it supports high-speed serial data transfer at a maximum clock frequency of 10 MHz. The compact PDIP form factor with dimensions of 9.27 mm length and 6.35 mm width facilitates straightforward mounting and integration into printed circuit boards.

Built for durability, the AT17LV010-10PU provides a 90-year data retention period and operates reliably within a temperature range from -40°C to 85°C, making it ideal for robust electronics environments. Its low 5 mA supply current enhances energy efficiency, benefiting portable and low-power FPGA applications.

This EEPROM is widely compatible with FPGA devices including Altera FLEX and APEX series, Atmel AT6000 and AT40K families, Xilinx XC3000, XC4000, XC5200, Spartan, and Virtex FPGAs, as well as Motorola MPA1000 FPGAs. Its simple serial-access protocol supports cascading multiple devices for expansive memory configurations.

Provides 1 megabyte memory capacity with 1 million bits organization. Operates with a supply voltage range of 3 V to 5.5 V. Supports a maximum clock frequency of 10 MHz for fast data access. Designed in a through-hole 8-pin PDIP package measuring 9.27 mm by 6.35 mm.

Ensures data retention for up to 90 years under specified conditions. Operates reliably across temperatures ranging from -40°C to 85°C. Has a low supply current consumption of 5 mA, suitable for power-sensitive applications.

Compatible with multiple FPGA manufacturers including Altera FLEX, APEX, Xilinx Spartan and Virtex series. Features a simple serial access protocol enabling easy FPGA configuration and device cascading. Ideal for industrial, laboratory, manufacturing, and electronic development use cases.

Select the Microchip AT17LV010-10PU EEPROM for a reliable, high-capacity serial memory solution supporting various FPGA platforms and industrial electronics at EnvMart.
