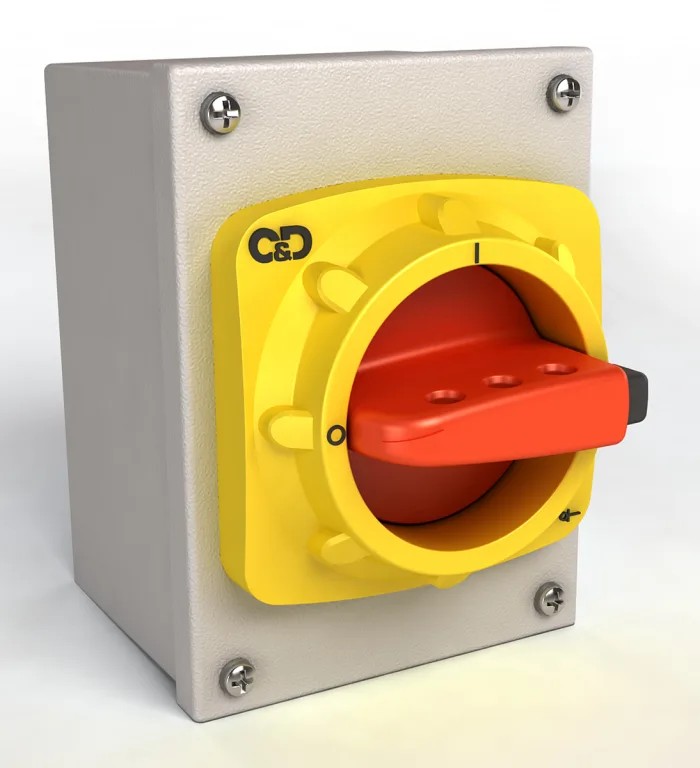

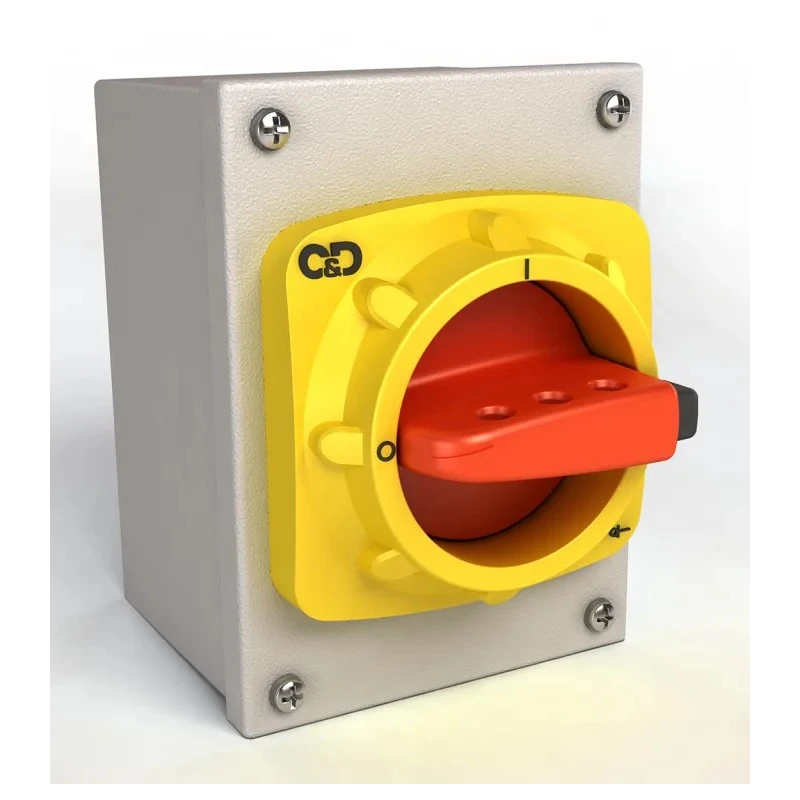

Craig & Derricott 6-Pole Base Isolator Switch IP65 20A 15 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Craig & Derricott |
| Length | 135mm |
| Model | IP65 |
| Depth | 80mm |
| IP Rating | IP65 |
| Width | 100mm |
| Mount Type | Base |
| Series | SDMG |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -5°C |
| Switching Current | 20A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red |
| Number of Poles | 6 |
| Standards/Approvals | EN/IEC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-1811Brand: Craig & DerricottManufacturers Part No.: SDMG206EB |
| Switching AC Voltage | 690V ac |
| Switching Power | 15kW |
Key Features
- Features a durable steel switch disconnector design.
- Six poles suitable for three-phase electrical systems.
- IP65 ingress protection ensures resistance to dust and water.
- Handles up to 20A switching current and 15 kW switching power.
- Equipped with a red handle and screw terminal type.
- Includes auxiliary contacts and padlock compatibility for enhanced safety.
- Operates in temperature range from -5°C to 40°C.
- Complies with EN/IEC standards for electrical equipment safety.
Product Description
Craig & Derricott SDMG206EB 6-Pole Base Isolator Switch IP65 20A 15 kW is a high-quality switch disconnector with robust steel enclosure designed to safely isolate electrical circuits in industrial and commercial applications.
Designed for three-phase systems, this base-mounted isolator switch features six poles and supports switching AC voltage up to 690V AC, with a switching current rating of 20 amps and power rating of 15 kW.
The product offers mechanical interlock that prevents cover removal when in the off position and padlocked, improving operator safety. It is equipped with auxiliary contacts to support control circuitry and screw terminals for secure wiring connections. The handle is bright red for clear visibility in switchgear panels.
With IP65 ingress protection, it resists dust ingress and water jets, making it suitable for harsh industrial environments. Operating temperature is rated from -5°C up to 40°C. The isolator complies with IEC/BS EN 60947-3 and IEC/BS EN 60947-5-1 standards, ensuring trusted international quality and safety compliance.
This switch disconnector can accommodate a selection of additional auxiliary contacts and neutral assemblies, allowing flexible configuration for varied electrical applications. Durable steel switch disconnector housing provides long-lasting protection.
Six poles enable comprehensive circuit isolation in three-phase systems. Auxiliary contacts included to facilitate electrical control signaling. Padlock compatibility enhances safety by preventing unauthorized operation.
IP65 rating protects against dust and water ingress in industrial settings. Red handle offers high visibility and easy operation. Compact dimensions facilitate installation even in limited space switchboards. Complies with international safety standards EN/IEC.
This Isolator Switch is ideal for industrial, manufacturing, electrical installation, and automation applications where reliable circuit isolation and safety is critical. Explore other isolator and electrical switchgear options by Craig & Derricott at EnvMart to complement this robust product.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power of this isolator switch is 15 kW.
It has a switching current rating of 20A.
This switch is designed for three-phase electrical systems, featuring six poles for comprehensive circuit isolation.
It has an IP65 ingress protection rating, ensuring resistance to dust and water.

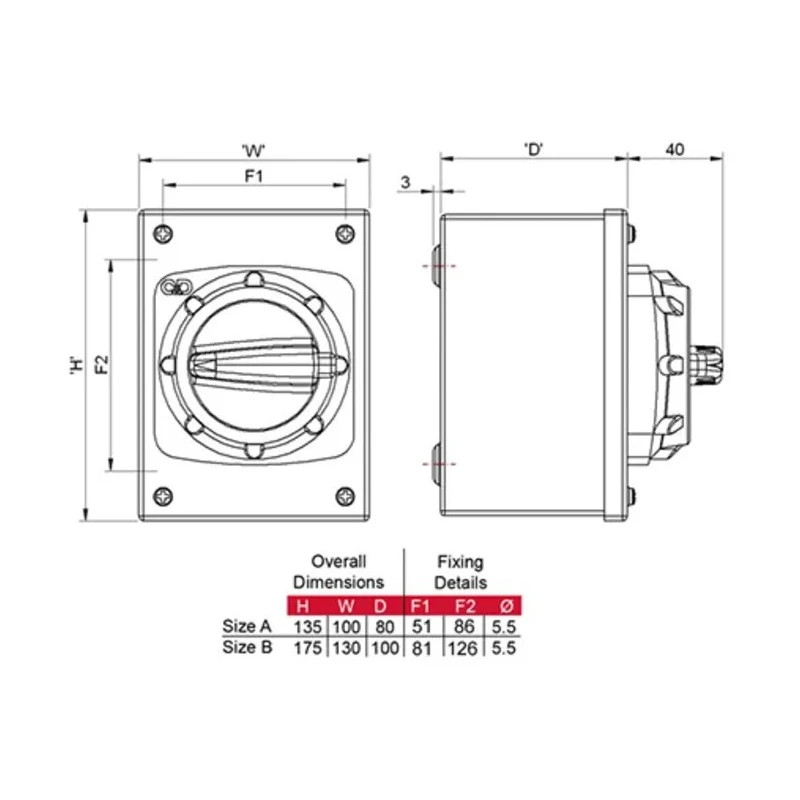

The dimensions of this isolator switch are 135mm in length, 100mm in width, and 80mm in depth.
The operating temperature range is from -5°C to 40°C.
Yes, it includes a mechanical interlock that prevents cover removal when in the off position and is compatible with padlocks for enhanced safety.
It uses screw terminal type connections for secure wiring.
It complies with EN/IEC standards for electrical equipment safety, specifically EN/IEC 60947-3 and EN/IEC 60947-5-1.
The handle is bright red, providing high visibility for operation.
Yes, it can accommodate a selection of additional auxiliary contacts and neutral assemblies for flexible configuration.
The country of origin for this isolator switch is the United Kingdom.
