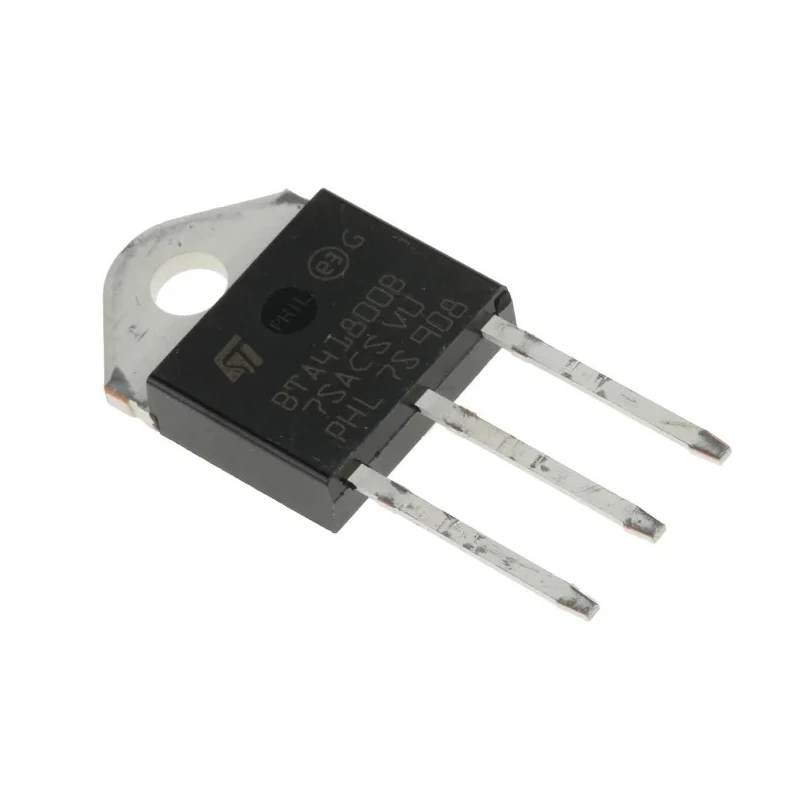

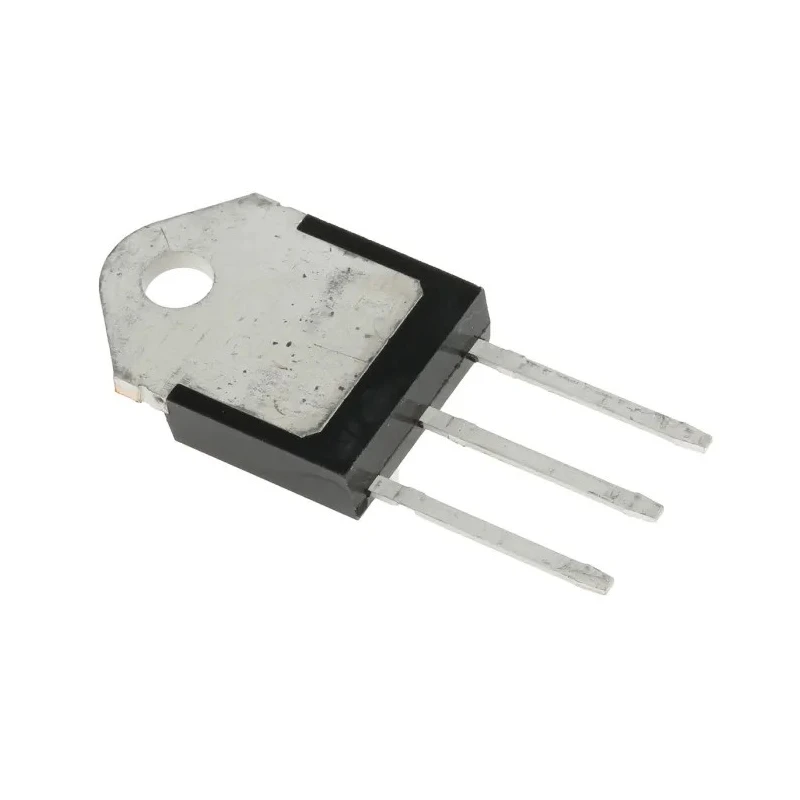

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA41-800BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 12.85mm |
| Length | 15.5mm |
| Model | BTA41-800BRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-0518PBrand: STMicroelectronicsManufacturers Part No.: BTA41-800BRG |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 40A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 420A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 80mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 40 A for robust power handling.
- Single configuration for efficient switching applications.
- Maximum gate trigger current of 100 mA ensures reliable activation.
- Operating temperature range from -40°C to 125°C for versatile industrial use.
- Compact dimensions with 12.85 mm height and 15.5 mm length.
- Peak surge current rating of 420 A to handle transient power conditions.
- Low peak on-state voltage of 1.55 V reduces power loss.
- Mounted using Through Hole package type TOP for secure PCB installation.
Product Description
STMicroelectronics BTA41-800BRG is a high-performance TRIAC designed for power control in electronic circuits. This Through Hole 3-pin device features an 800 V repetitive peak reverse voltage and supports an average on-state current of 40 A, enabling it to efficiently handle significant loads in industrial and commercial applications.
The TRIAC provides a maximum gate trigger voltage of 1.3 V and a gate trigger current of 100 mA, ensuring precise triggering and control. It supports a wide operating temperature range from -40°C to 125°C, which makes it suitable for challenging environments. The compact package with a height of 12.85 mm and length of 15.5 mm facilitates easy integration on PCBs.
Additional capabilities include a surge current rating of 420 A to endure short bursts of high current, and a low peak on-state voltage of 1.55 V which aids in reducing power loss during conduction. The device mounts via a TOP Through Hole package, providing reliable mechanical and electrical connections.
This TRIAC is ideal for use in power electronics, motor control, lighting control, and HVAC systems, as well as various industrial automation and manufacturing equipment requiring efficient AC power switching.
Rated average on-state current of 40 A for robust power handling. Single configuration for efficient switching applications. Maximum gate trigger current of 100 mA ensures reliable activation. Operating temperature range from -40°C to 125°C for versatile industrial use.
Compact dimensions with 12.85 mm height and 15.5 mm length. Peak surge current rating of 420 A to handle transient power conditions. Low peak on-state voltage of 1.55 V reduces power loss. Mounted using Through Hole package type TOP for secure PCB installation.
Designed without automotive standards compliance, suited for general electronics projects. Repetitive peak off-state current of 5 μA minimizes leakage currents. Explore more high-quality semiconductor components and TRIACs tailored for power electronic applications in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 40 A, allowing it to handle significant power loads efficiently.
The maximum gate trigger voltage for the BTA41-800BRG is 1.3 V, ensuring reliable activation of the device.
This TRIAC has a peak surge current rating of 420 A, which allows it to endure short bursts of high current.
The operating temperature range for the BTA41-800BRG is from -40°C to 125°C, making it suitable for various industrial environments.
The dimensions of this TRIAC are 12.85 mm in height and 15.5 mm in length, facilitating easy integration into PCBs.
This model uses a Through Hole package type for secure PCB installation.
The peak on-state voltage for this TRIAC is 1.55 V, which helps reduce power loss during conduction.
The maximum gate trigger current for the BTA41-800BRG is 100 mA, ensuring precise control and triggering.
This TRIAC has a repetitive peak reverse voltage rating of 800 V, making it suitable for high-voltage applications.
The maximum holding current for this model is 80 mA, which is important for maintaining conduction in the device.
This TRIAC is ideal for power electronics, motor control, lighting control, HVAC systems, and various industrial automation applications.
The BTA41-800BRG is manufactured in India.
