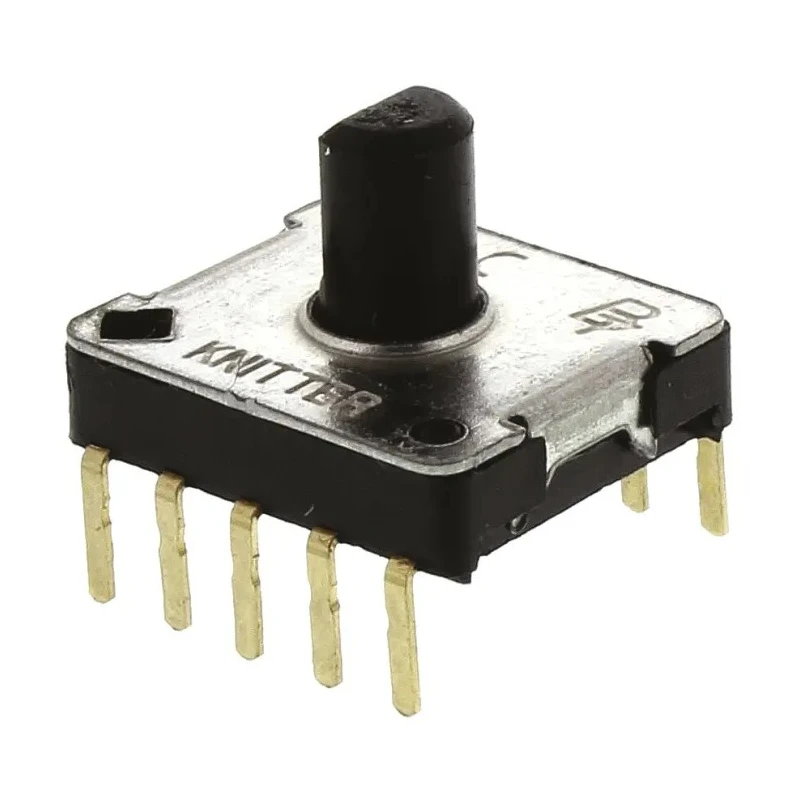

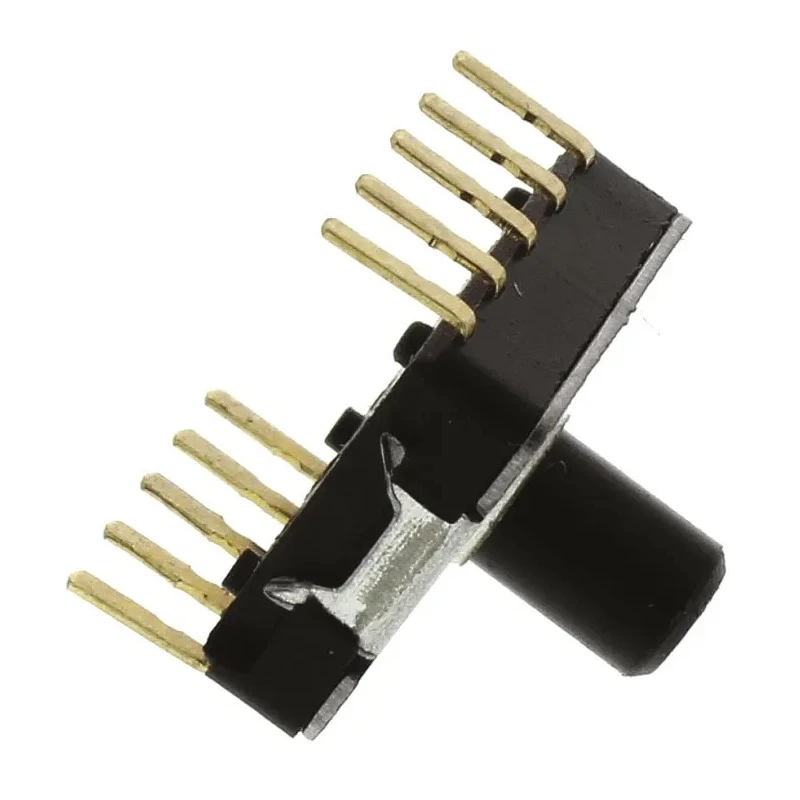

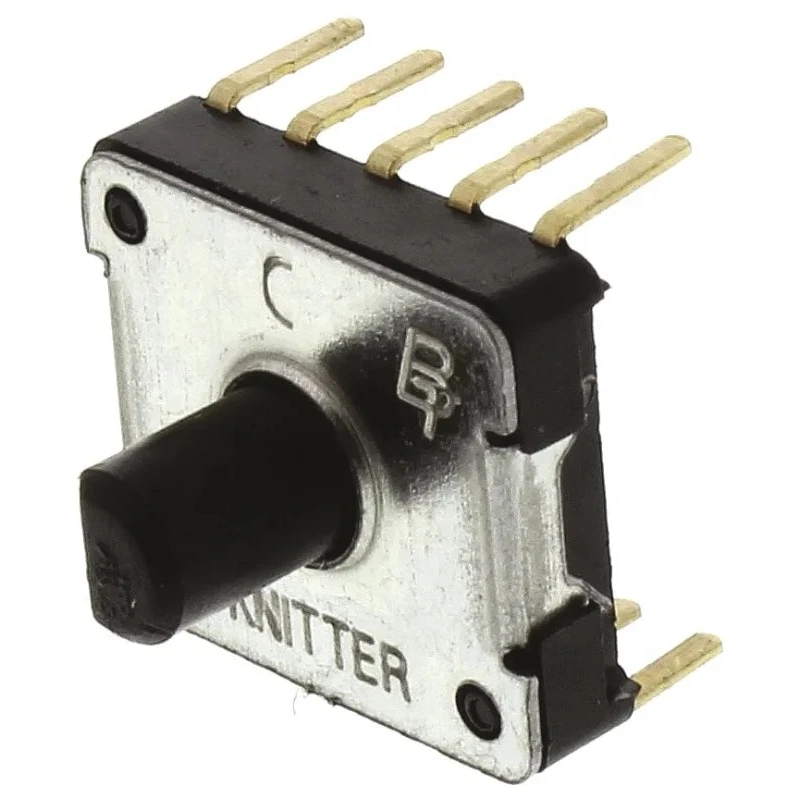

KNITTER-SWITCH MRS, 9 Position SP9T Rotary Switch, 100mA, 16V DC, PCB Mount, Solder Terminals, Black Actuator SP9T

KNITTER-SWITCH SP9T is a 9 Position Rotary Switch from the MRS series, offering reliable signal switching in electronic and electrical applications. This miniature rotary switch is suitable for PCB mounting and features a compact design with dimensions of 11.4mm width, 9.8mm height, and 11.4mm depth.

The switch uses Fibreglass Reinforced Polybutylene Terephthalate housing material, providing robustness and long service life. It is designed to handle up to 100mA contact current at a maximum DC voltage of 16V, making it suitable for moderate low voltage circuits.

This switch features single pole contact configuration and nine switch positions spaced at a 40° angle of throw, ensuring precise selection control. With an On-On switch configuration and black actuator, it is user-friendly and designed for durability.

Operating temperature ranges from -20°C to 80°C, allowing operation in various environments. The switch terminals are solder type, ensuring secure and reliable PCB mounting. Mechanical life is rated at 10,000 operations, confirming its reliability in repeated switching scenarios.

The operating force required is 250 ± 100 gf.cm, facilitating smooth switching action. The footprint includes pin spacing of 2.54mm between pins and 5.08mm between rows, suitable for standard PCB layouts.

This rotary switch finds applications in industrial automation, instrumentation, telecommunications, and other electronics requiring reliable and precise multi-position switching. Set includes one KNITTER-SWITCH MRS 9 Position SP9T Rotary Switch with all specified technical features.

Browse EnvMart's Electronics & Electricals category for more rotary switches and components designed to meet industrial and commercial needs. This Rotary Switch provides 9 distinct positions with a 40° angle of throw between positions.

It operates with a contact current of 100mA at a maximum of 16V DC. Constructed with Fibreglass Reinforced Polybutylene Terephthalate housing for durability. Has a single pole switch configuration with On-On type operation and solder terminal type for easy PCB mounting.

The actuator is black colored and the switch is not illuminated. Operates reliably within temperatures from -20°C to 80°C. The switch has a mechanical life span of 10,000 operations. Pin spacing is designed with 2.54mm between pins and 5.08mm between rows for PCB compatibility.
