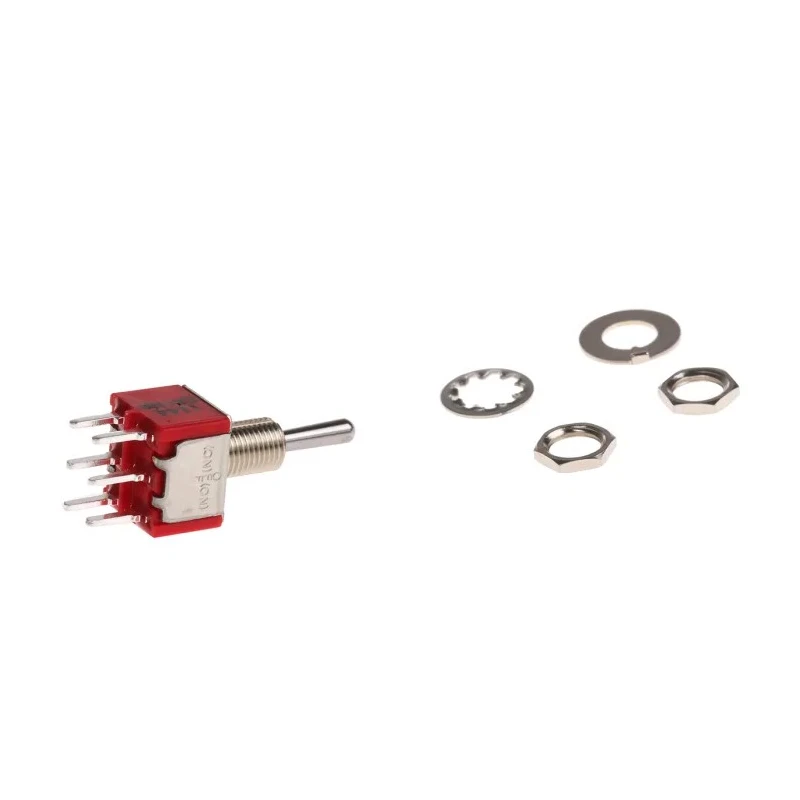

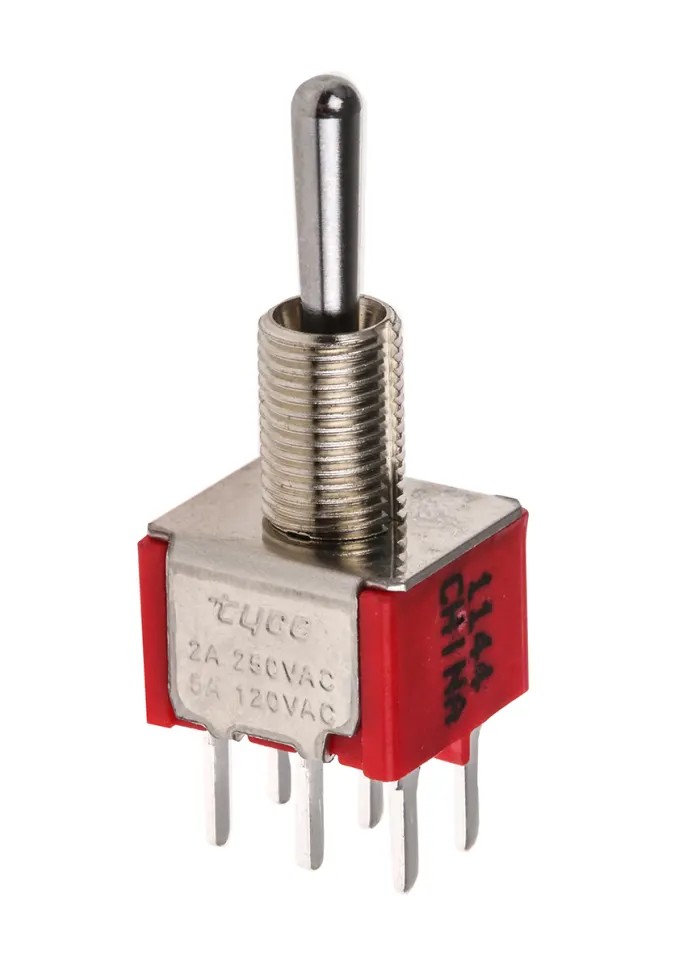

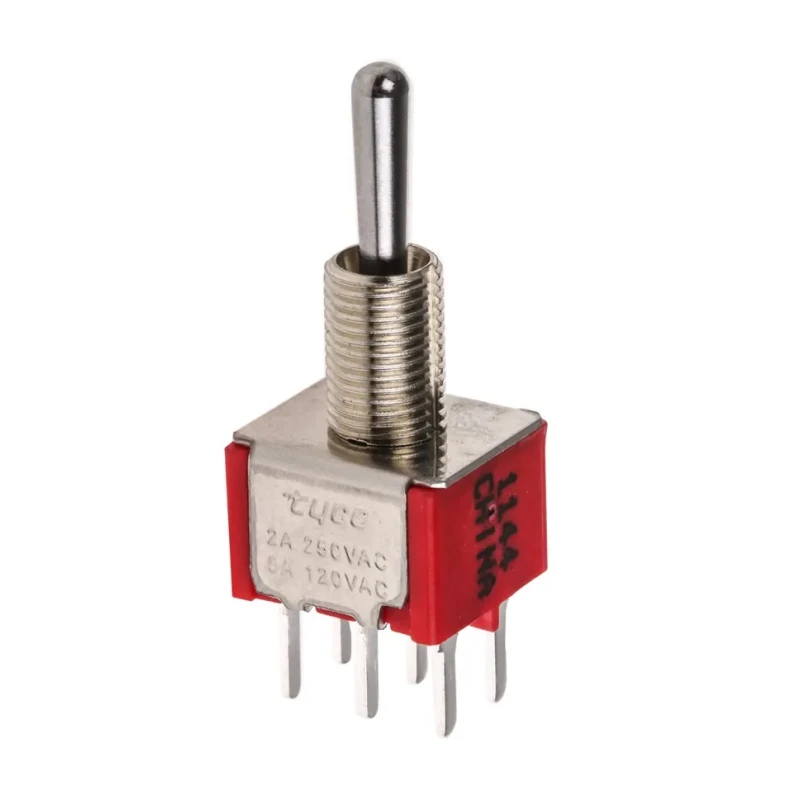

TE Connectivity Gemini A Series Toggle Switch, PCB Mount, Momentary-Off-Momentary, DPDT, Through Hole Terminal 1-1825139-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9993Brand: TE ConnectivityManufacturers Part No.: 1-1825139-7 |
| Switch Operation | Momentary-Off-Momentary |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Designed for PCB mounting with through hole terminals for secure installation.
- Switch contact current rated at 5 A, suitable for moderate electrical loads.
- Provides reliable operation at 28 V dc and 115 V ac contact voltages.
- Epoxy sealed terminals and stainless steel frame ensure durability and corrosion resistance.
- Actuator made of phenolic material with a length of 10.41 mm for precise control.
- IP67 rated for protection against dust and water ingress in industrial environments.
- Compact dimensions with a panel cutout size of 6.35 mm and total size approximately 0.5 x 0.45 x 0.35 inches.
- Operational temperature range from -30°C to 85°C for versatile application environments.
Product Description
TE Connectivity 1-1825139-7 Gemini A Series Toggle Switch is a high-quality PCB mount switch designed for demanding electrical applications requiring momentary-off-momentary switch operation in a double pole, double throw (DPDT) configuration. Rated for contact currents of 5 A, this switch is suitable for switching moderate loads with reliable mechanical and electrical performance.
This switch features epoxy sealed terminals and a stainless steel frame with brass tin-plated solder support, ensuring durability and stable connectivity. It is constructed with a phenolic actuator measuring 10.41 mm in length, providing tactile precision for user operation during switching. The toggle switch has a panel cutout diameter of 6.35 mm, designed for easy integration into panels and housings.
The Gemini A Series Toggle Switch is rated for IP67 protection, making it resistant to dust and water exposure, ideal for industrial, automation, electrical, and control system environments. It operates reliably within a temperature range from -30°C to +85°C, supporting harsh operating conditions. The switch's (On)-Off-(On) configuration allows momentary control with break-before-make contact timing to prevent short circuits, enhancing safety.
This product conforms to RoHS directives, reflecting its compliance with environmental standards. This toggle switch is often used in circuit control, industrial automation, and equipment control panels.
DPDT contact configuration with momentary-off-momentary switch operation. 5 A contact current rating at 28 V dc and 115 V ac voltages. Through hole terminal design for PCB mounting. Epoxy sealed terminals and stainless steel frame enhance durability and corrosion resistance.
Phenolic actuator with 10.41 mm length for precise operation. IP67 rated for dust and water protection. Compact size with 0.5 inch length, 0.45 inch width, and 0.35 inch height. Operational temperature range from -30°C to +85°C.
RoHS compliant for environmental safety. Gemini A product series. Explore more Toggle Switches and related accessories in the Electronics & Electricals category at EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole, double throw (DPDT) contact configuration, allowing for versatile switching capabilities.
It operates reliably within a temperature range from -30°C to +85°C, making it suitable for various environmental conditions.
The switch has compact dimensions of approximately 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
The switch is rated for a contact current of 5 A, making it suitable for moderate electrical loads.
It is designed to operate at contact voltages of 28 V dc and 115 V ac.
This model is designed for PCB mounting with through hole terminals, ensuring secure installation.
The switch is rated IP67, providing protection against dust and water ingress, suitable for industrial environments.
The actuator is made of phenolic material, which contributes to its tactile precision during operation.
The required panel cutout size for this toggle switch is 6.35 mm.
The switch operates in a momentary-off-momentary configuration, allowing for temporary activation.
Yes, it conforms to RoHS directives, indicating compliance with environmental safety standards.
The toggle switch is manufactured in India.
