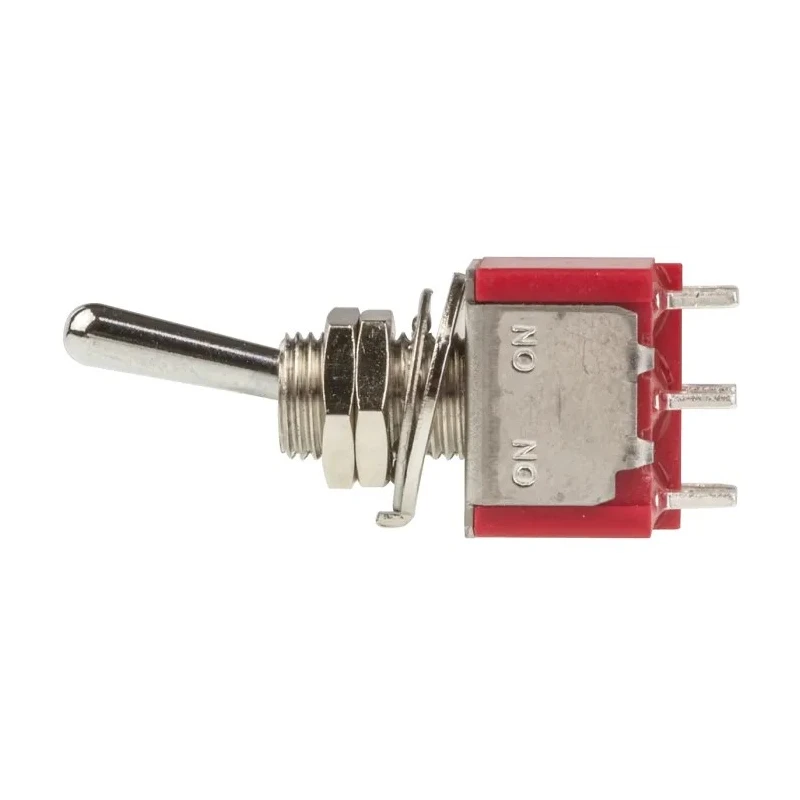

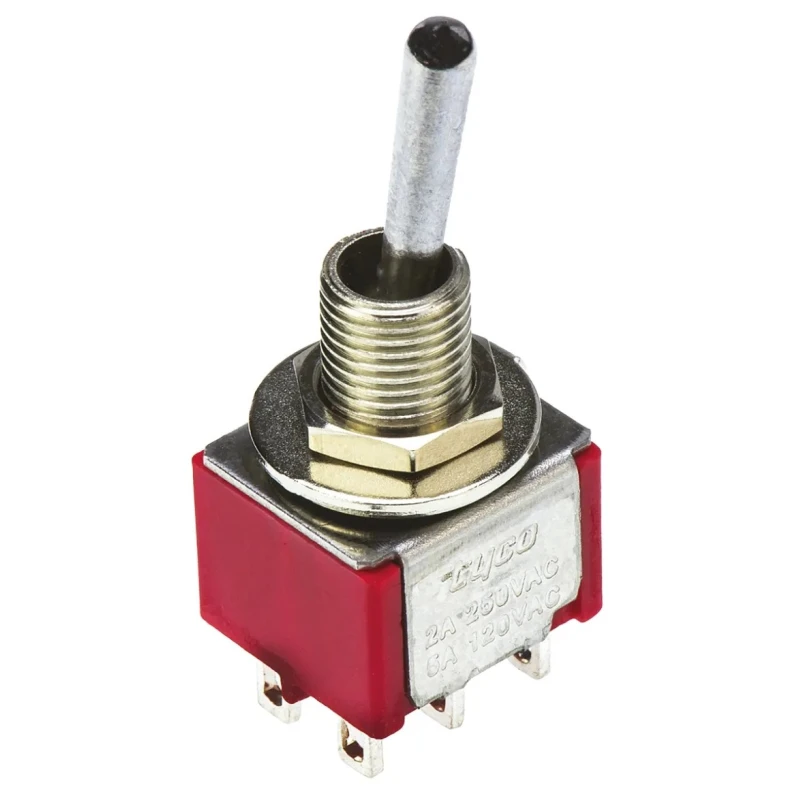

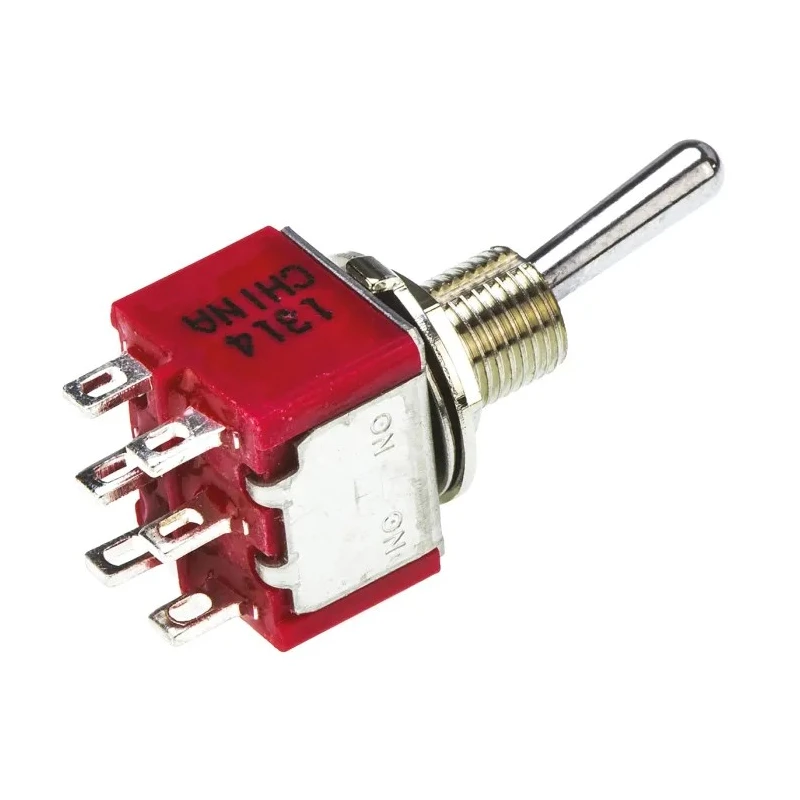

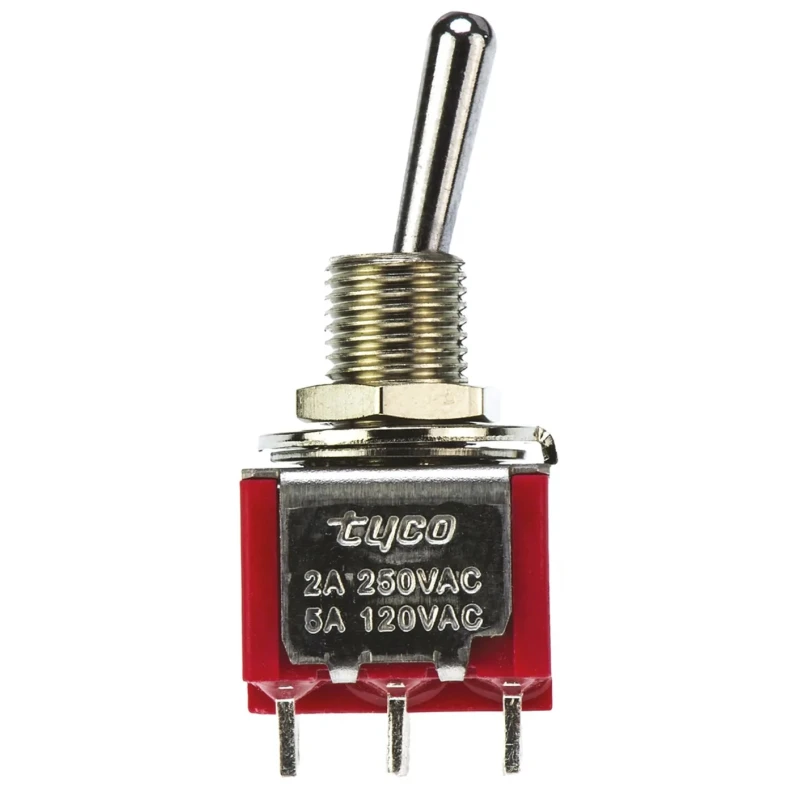

TE Connectivity Toggle Switch PCB Mount On-On DPDT Solder Terminal 28 V dc 240 V ac 2-1825138-8
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP55 |
| Width | 0.45in |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, cULus, IEC, EN, UL |
| Pay online using | Or choose to pay later via bank transfer |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Phenolic |
Key Features
- Dual pole double throw (DPDT) contact configuration provides switching between two circuits.
- On-On switch operation with 5 ampere rated contact current for reliable performance.
- Designed for PCB mounting with solder terminals for secure and stable connection.
- Rated for contact voltages of 28 V DC and 240 V AC suitable for diverse applications.
- Constructed with phenolic actuator material and epoxy sealed terminals ensuring durability and electrical safety.
- Compact dimensions with 0.50 inch length and 0.45 inch width, fitting small-scale electronic assemblies.
- Features an IP55 ingress protection rating for dust and water resistance.
- Mechanical life expectancy of 6000 cycles ensuring extended operational reliability.
Product Description
TE Connectivity 2-1825138-8 Toggle Switch is a high-quality PCB mount switch with On-On double pole double throw (DPDT) operation, rated for 5A contact current. It features solder terminals designed for reliable electrical connections on printed circuit boards. The switch supports 28 V DC and 240 V AC contact voltages, making it versatile for various industrial, automation, and electrical applications.
The switch is constructed with a phenolic actuator material and includes epoxy sealed terminals providing robust insulation and protection. With a compact length of 0.50 inches and width of 0.45 inches, the device is suitable for tight spaces in electrical assemblies. Its IP55 rating ensures resistance to dust and water ingress, enhancing durability in harsher operating environments.
Designed to withstand a broad temperature range from -30°C to 85°C, this Toggle Switch offers reliable performance in diverse climatic conditions. The mechanical life of 6000 cycles guarantees long-term operational use. Compliance with RoHS, cULus, IEC, EN, and UL standards affirms the product's quality and safety suitability for industrial and commercial usage.
Applications include electrical automation systems, laboratory equipment, industrial machinery controls, and panel mount electrical devices requiring compact, durable, and efficient switching solutions.
Dual pole double throw contact configuration. On-On switching operation with 5 ampere current rating. PCB mounting with solder terminal type for secure connections. 28 V DC and 240 V AC contact voltage ratings. Phenolic actuator and epoxy sealed terminals for durability.
Compact 0.50 inch length and 0.45 inch width dimensions. IP55 ingress protection for dust and water resistance. Mechanical life of 6000 cycles for long-lasting performance. Operating temperature range from -30°C to 85°C.
Certified to RoHS, cULus, IEC, EN, and UL standards. Explore a wide range of industrial and electrical switches in the Electronics & Electricals category on EnvMart, designed to meet diverse technical and operational requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual pole double throw (DPDT) contact configuration, allowing for switching between two circuits.
It is rated for contact voltages of 28 V DC and 240 V AC, making it suitable for various applications.
The switch has a contact current rating of 5 amperes, ensuring reliable performance in electrical circuits.
This unit is designed for PCB mounting and features solder terminals for secure connections.
It has compact dimensions of 0.50 inches in length and 0.45 inches in width, suitable for small-scale electronic assemblies.
This switch has an IP55 ingress protection rating, providing resistance to dust and water ingress.
The mechanical life expectancy is rated at 6000 cycles, ensuring extended operational reliability.
It operates effectively within a temperature range of -30°C to 85°C, suitable for diverse climatic conditions.
The actuator is made from phenolic material, and the terminals are epoxy sealed for added durability and electrical safety.
It is certified to RoHS, cULus, IEC, EN, and UL standards, affirming its quality and safety for industrial use.
This toggle switch operates in an On-On configuration, allowing for two active positions.
The required panel cutout size for installation is 6.35 mm, ensuring a proper fit in mounting applications.
