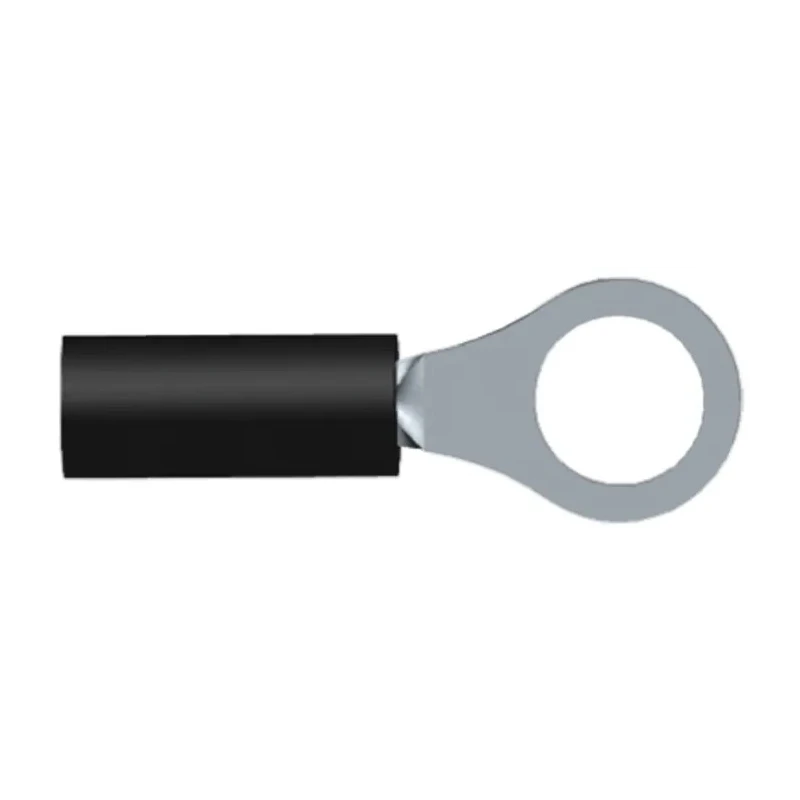

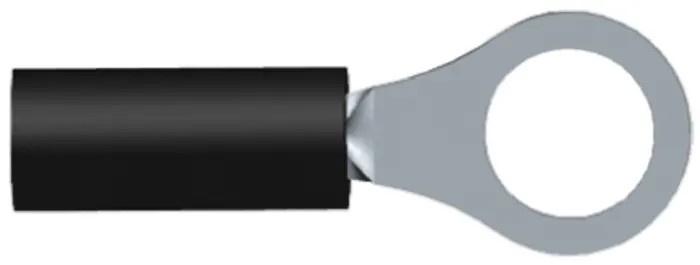

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 24 AWG 22 AWG Wire Size Black 151441
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Model | 151441 |
| Insulation | Insulated |
| Overall Length | 19.9mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5600PBrand: TE ConnectivityManufacturers Part No.: 151441 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Stud Size | M5 |
Key Features
- Constructed from high conductivity copper for optimal electrical performance.
- Features a nylon insulated sleeve for wire protection and identification.
- Designed for M5 stud size with 19.9mm overall length for versatile installation.
- Serrations in the wire barrel ensure maximum contact and tensile strength after crimping.
- Suitable for industrial, aerospace, and automotive electrical wiring applications.
- Color coded for easy wire size and tooling identification.
- Designed to prevent wire strand fraying and allow quick wire insertion.
- Compatible with specialised crimping tools to ensure a uniform and reliable crimp.
Product Description
TE Connectivity 151441 PIDG Insulated Ring Terminal with M5 stud size is engineered for use with wire sizes 24 AWG and 22 AWG, featuring a black nylon insulation sleeve for durability and ease of identification. The high conductivity copper construction with tin plating assures excellent electrical connectivity and corrosion resistance.
This ring terminal includes serrations inside the wire barrel that provide superior contact and tensile strength when crimped, while a copper sleeve supports wire insulation to reduce fraying. The funnelled wire entry facilitates fast, reliable wire insertion during high-speed production environments.
The design enables uniform crimps and is compatible with specialized tool dies, ensuring consistent performance in demanding industrial, aerospace, automotive, and power supply wiring applications. This terminal is color-coded to simplify wire size recognition and tooling selection.
Common uses include instrumentation, control panels, lighting systems, power supplies, transportation equipment, lifting gear, motors, and appliances. These terminals adhere to stringent MIL-T-7928 standards (Type II, Class 1 and 2), underscoring their reliability and performance in critical environments.
Constructed from high conductivity copper for optimal electrical performance. Features a nylon insulated sleeve for wire protection and identification. Designed for M5 stud size with 19.9mm overall length for versatile installation.
Serrations in the wire barrel ensure maximum contact and tensile strength after crimping. Suitable for industrial, aerospace, and automotive electrical wiring applications. Color coded for easy wire size and tooling identification.
Designed to prevent wire strand fraying and allow quick wire insertion. Compatible with specialised crimping tools to ensure a uniform and reliable crimp. Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements for robust performance.
Explore more high-quality Ring Terminals and power connectors at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is compatible with wire sizes 24 AWG to 22 AWG.
It is designed for an M5 stud size.
The terminal is constructed from high conductivity copper with a tin plating, and features a nylon insulated sleeve.
The overall length of this terminal is 19.9 mm.
The maximum operating temperature is 105°C.
The design includes serrations in the wire barrel that provide maximum contact and tensile strength after crimping, ensuring excellent electrical connectivity.
Yes, it features a funnelled wire entry that facilitates fast and reliable wire insertion, making it suitable for high-speed production environments.
Common applications include instrumentation, control panels, lighting systems, power supplies, transportation equipment, lifting gear, motors, and appliances.
This terminal adheres to MIL-T-7928 standards (Type II, Class 1 and 2), ensuring reliability and performance in critical environments.
The insulation material used is nylon, which provides protection and identification for the wire.
It is compatible with specialized crimping tools to ensure a uniform and reliable crimp.
The country of origin for this terminal is India.
