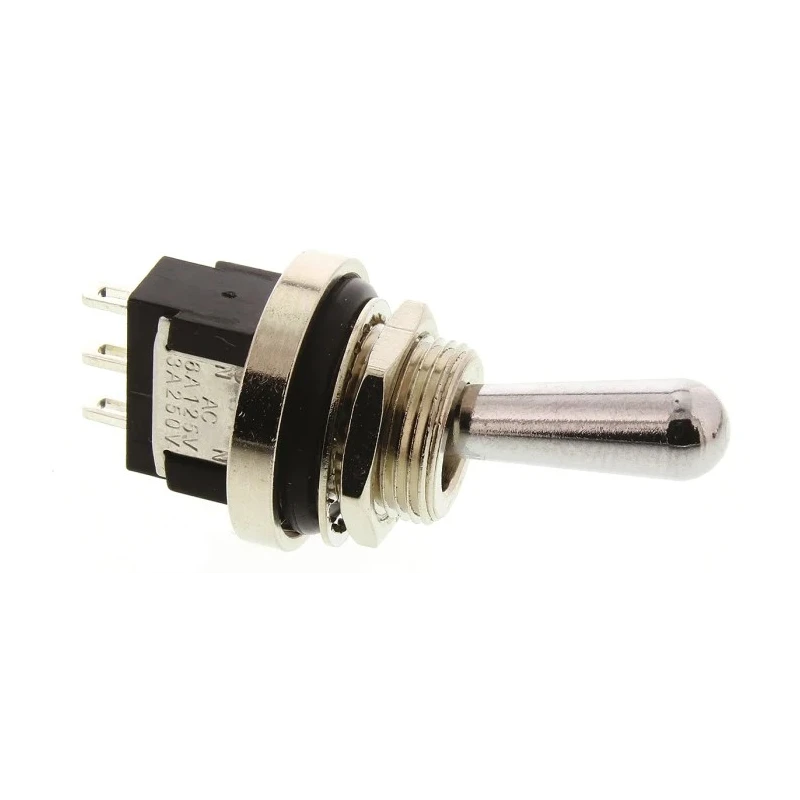

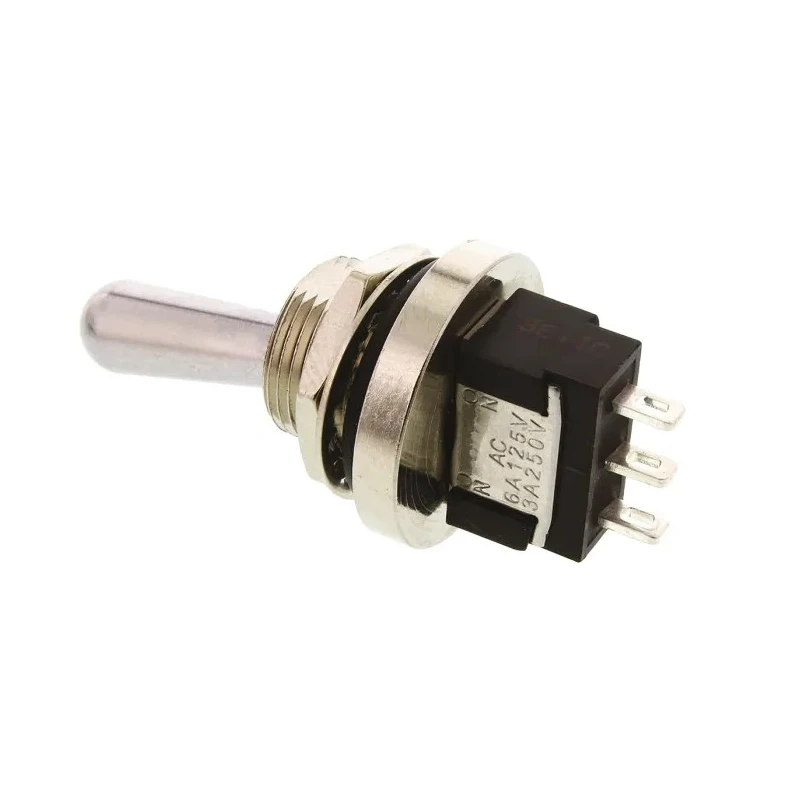

KNITTER-SWITCH Toggle Switch Panel Mount On-On SPDT Solder Terminal 30 V dc 250 V ac MTW106D
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Mounting | Bushing 15/32-32 THD locking through flat bush, key 14 mm |
| Model | MTW106D |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 140°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -45°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-3404PBrand: KNITTER-SWITCHManufacturers Part No.: MTW106D |
| Switch Operation | On-On |
| Actuator Length | 17mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Copper |
Key Features
- This toggle switch features a robust copper actuator with a length of 17 mm.
- It supports a switch contact current of 4 amperes suitable for various electrical applications.
- The mechanical life expectancy is 100,000 operations, ensuring durability.
- Designed for extreme temperatures, operating from -45°C to 140°C.
- The switch has a bushing 15/32-32 THD locking mount with a 14 mm key for secure panel installation.
- It offers excellent insulation resistance greater than 1000 MΩ at 500 V dc for safety.
- The IP67 rating provides protection against dust and water ingress, suitable for harsh environments.
- This non-illuminated switch complies with RoHS standards for environmental safety.
Product Description
KNITTER-SWITCH MTW106D Toggle Switch is a high-quality panel mount On-On SPDT switch designed for reliable electrical control in a variety of industrial and automation applications. This switch is constructed with a durable copper actuator of 17 mm length and solder terminals for secure connections.
Rated for 30 V dc and 250 V ac voltages and able to carry a contact current of 4 A, it is suitable for low to moderate power switching. The switch's mechanical lifespan of 100,000 operations guarantees longevity and operational efficiency.
Designed for use in challenging environments, this toggle switch operates reliably within a temperature range from -45°C to 140°C. It features an IP67 rating, providing excellent protection against dust ingress and water immersion, ensuring functionality in harsh industrial settings.
The mounting is achieved via a bushing 15/32-32 THD locking through a flat bush keyed at 14 mm, assuring stable installation on control panels. It also includes neoprene O-rings between toggle and bushing and between bushing and panel to enhance sealing and durability.
With insulation resistance greater than 1000 MΩ at 500 V dc and no illumination, this switch meets RoHS compliance, supporting environmental standards. It is engineered to support safe and efficient operations in electrical, automation, industrial control, and manufacturing sectors.
This toggle switch features a robust copper actuator with a length of 17 mm. It supports a switch contact current of 4 amperes suitable for various electrical applications. The mechanical life expectancy is 100,000 operations, ensuring durability.
Designed for extreme temperatures, operating from -45°C to 140°C. The switch has a bushing 15/32-32 THD locking mount with a 14 mm key for secure panel installation. It offers excellent insulation resistance greater than 1000 MΩ at 500 V dc for safety.
The IP67 rating provides protection against dust and water ingress, suitable for harsh environments. This non-illuminated switch complies with RoHS standards for environmental safety. Ideal for industrial, automation, and electrical control system applications.
Explore more products in the Toggle Switch category at EnvMart for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch is rated for 30 V dc and 250 V ac, making it suitable for various electrical applications.
The maximum operating temperature for this model is 140°C, allowing it to function in high-temperature environments.
The mechanical life expectancy of this switch is 100,000 operations, ensuring longevity in its use.
It has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
This switch features solder terminals, which provide secure connections for electrical applications.
The switch supports a contact current of 4 amperes, suitable for low to moderate power switching.
It is mounted using a bushing 15/32-32 THD locking through a flat bush, keyed at 14 mm for secure installation.
The minimum operating temperature for this model is -45°C, allowing it to operate in cold environments.
Yes, this switch complies with RoHS standards, supporting environmental safety.
The actuator length of this toggle switch is 17 mm, designed for effective operation.
The contact configuration of this switch is SPDT (Single Pole Double Throw), allowing for versatile switching options.
This toggle switch is suitable for industrial, automation, and electrical control system applications.
