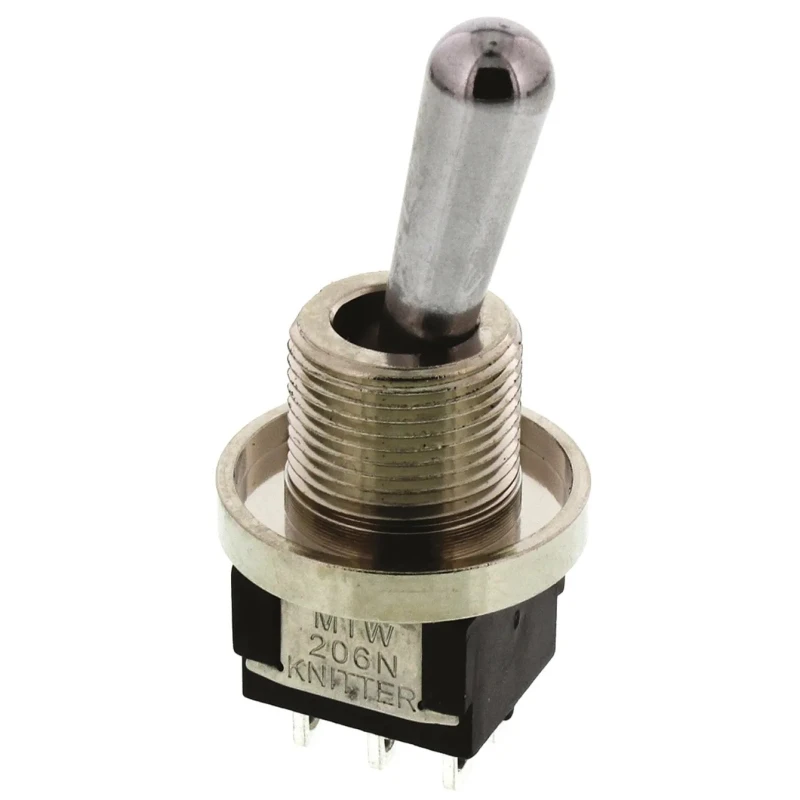

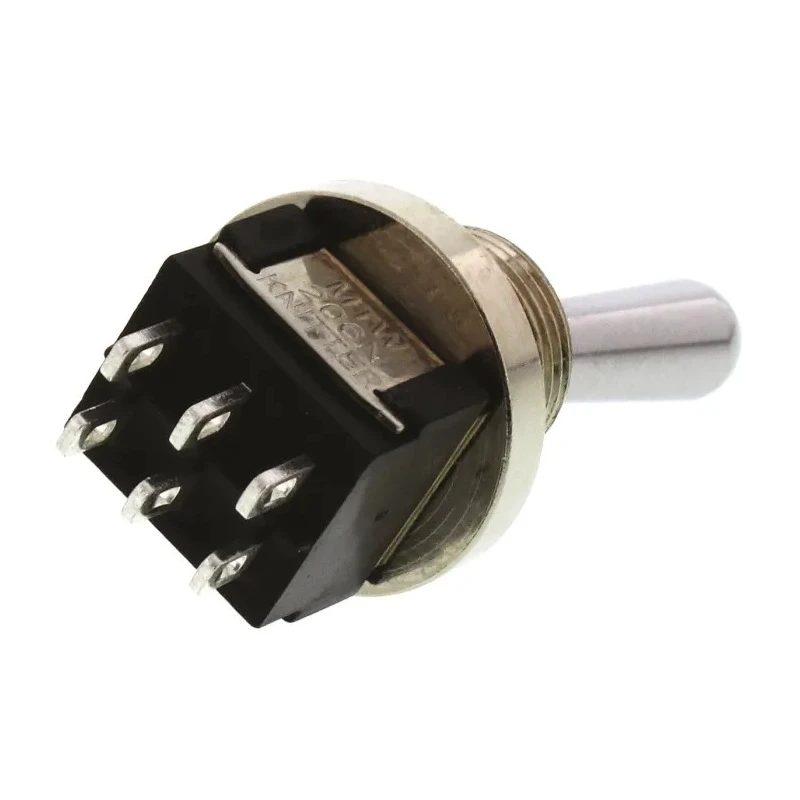

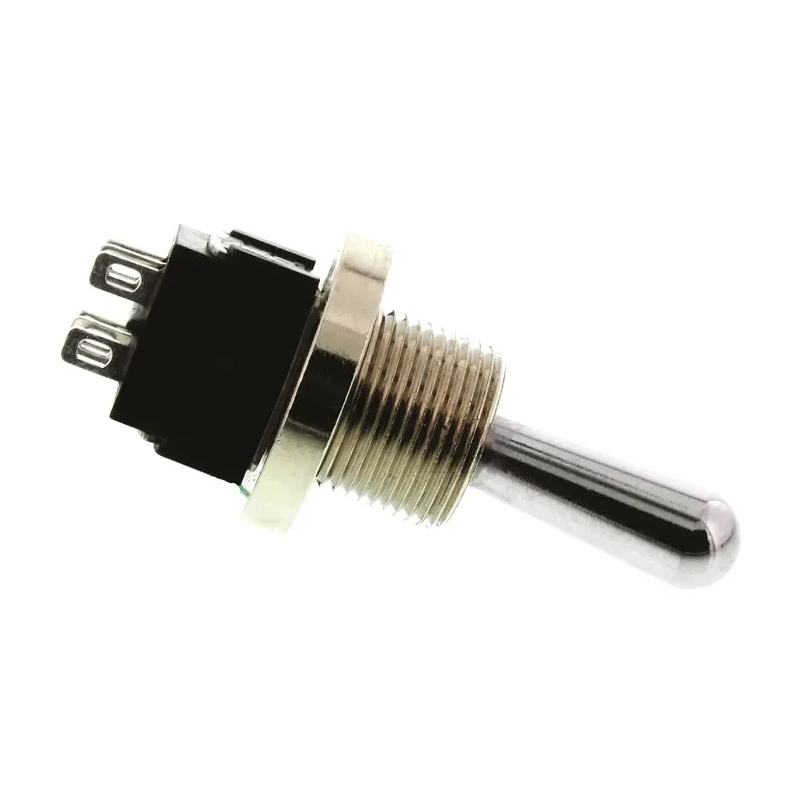

KNITTER-SWITCH Toggle Switch Panel Mount On-On DPDT Solder Terminal 30 V dc 250 V ac MTW206N
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Mounting | Bushing 15/32-32 THD locking through flat bush, key 14 mm |
| Model | MTW206N |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 140°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -45°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-3401PBrand: KNITTER-SWITCHManufacturers Part No.: MTW206N |
| Switch Operation | On-On |
| Actuator Length | 17mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Copper |
Key Features
- The switch features solder terminal connections for reliable wiring.
- It has an actuator length of 17 mm made of copper material.
- The device offers an IP67 rating ensuring dust tight and water-resistant operation.
- Operational temperature range is from -45°C minimum to 140°C maximum.
- The switch supports mechanical life of up to 100,000 operations.
- Mounting is via bushing with 15/32-32 thread locking and a 14 mm key flat for secure panel fit.
- Insulation resistance is greater than 1000 MΩ at 500 V dc providing excellent electrical isolation.
- The switch complies with RoHS standards.
Product Description
KNITTER-SWITCH MTW206N Toggle Switch is a robust panel mount double pole double throw (DPDT) switch featuring On-On operation suitable for various electrical and automation control applications. It supports solder terminal connections and is rated for switching currents of 4 A at 30 V dc and 250 V ac, ensuring versatility across low voltage DC and AC circuits.
The switch measures an actuator length of 17 mm, constructed with high-grade copper for durability and excellent conductivity. Its IP67 rating guarantees protection against dust ingress and temporary water immersion, making it reliable under harsh environments.
Operating temperature ranges from -45°C to +140°C, allowing functionality in a wide range of conditions. The mechanical lifespan of this switch extends up to 100,000 operations, providing long-term performance reliability. The mounting is done via bushing with a 15/32-32 thread and locking flat key measuring 14 mm, ensuring stable and secure panel installation.

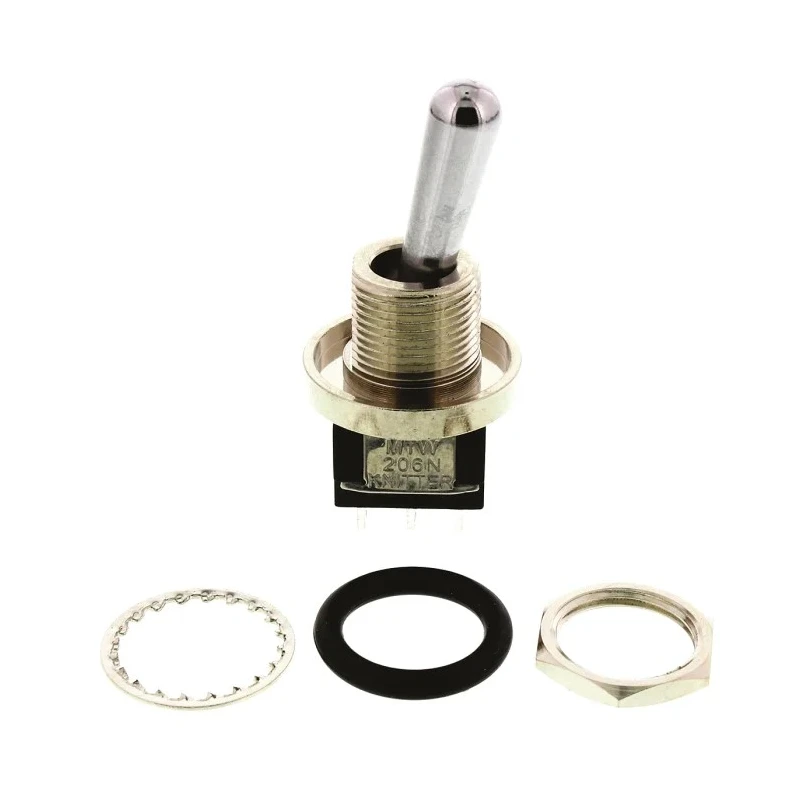

Designed with neoprene O-rings between toggle and bushing, as well as between bushing and panel, it offers enhanced sealing to protect internal components. The switch complies with RoHS environmental standards, supporting responsible manufacturing practices.
The switch has solder terminals for secure electrical connections. Its contact configuration is double pole double throw (DPDT) with On-On switch operation. Insulation resistance exceeds 1000 MΩ at 500 V dc, enhancing electrical safety.
It is not illuminated, focusing on functional switch applications in industrial automation. The product originates from China and is supplied in new condition.
This toggle switch is ideal for industrial equipment, automation controls, instrumentation panels, and other commercial electrical installations requiring reliable manual switching solutions. Explore more Toggle Switches in the Electronics & Electricals category at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 140°C.
This toggle switch features a double pole double throw (DPDT) contact configuration.
It has an IP67 rating, ensuring dust tightness and water resistance.
The switch uses solder terminals for secure electrical connections.
The mechanical life of the MTW206N is rated for up to 100,000 operations.
It is rated for a contact DC voltage of 30V and an AC voltage of 250V.
The actuator length of this model is 17 mm.
The minimum operating temperature is -45°C.
It is mounted via a bushing with a 15/32-32 thread and a 14 mm key flat for secure installation.
The switch complies with RoHS standards, supporting responsible manufacturing practices.
This model features an On-On switch operation.
It is suitable for industrial equipment, automation controls, and instrumentation panels.
