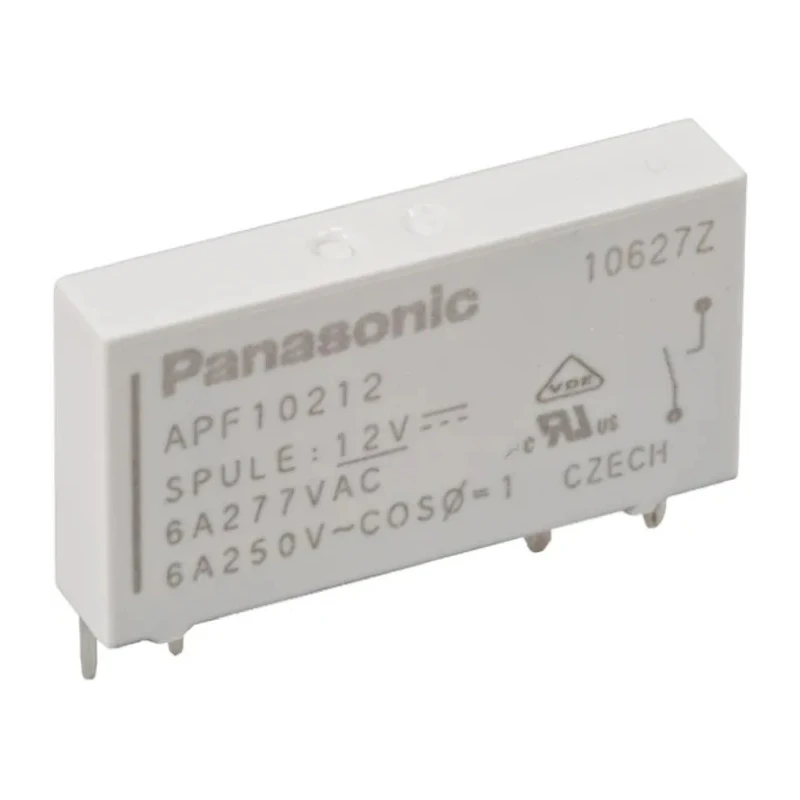

Panasonic PCB Power Relay 12V dc Coil 6A Switching Current SPST APF10212

Panasonic APF10212 PCB Power Relay is designed for reliable switching operations in industrial and commercial environments. This power relay features a 12V dc coil with a switching current capacity of 6A using a Single Pole Single Throw (SPST) contact configuration, well suited for printed circuit board (PCB) mounting due to its slim 5mm profile.

The relay's sealed construction allows it to withstand automatic washing processes without deterioration, while the silver alloy contacts ensure low contact resistance and robust electrical connections. It supports switching of up to 6A at 250V AC and features a coil resistance of 847 ohms consuming only 170mW coil power, contributing to energy-efficient operation.

With a wide operating temperature range from -40°C to 85°C, this relay caters to a variety of industrial applications including programmable controllers, measuring equipment, timers, counters, temperature controllers, and office machinery. Its high breakdown voltage of 4000V and surge voltage of 6000V deliver enhanced durability and operational safety.

Installation is facilitated by through hole terminal type and the compact dimensions (length 28mm, width 5mm, height 15mm) support high-density PCB layouts. The product meets multiple standards and approvals, including RoHS environmental compliance, UL safety certification, and VDE for quality assurance. It is manufactured in Czech Republic.

Additional accessories such as PCB relay sockets with LED indication and hold down clips are available separately to complement this relay for enhanced functionality. This Panasonic power relay is an optimal choice for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring dependable power switching.

Compact design with 5mm width allows high density PCB mounting. Sealed construction suitable for automatic washing processes. High switching capacity supporting 6A at 250V AC with AC15-DC15 ratings. Silver alloy contact material ensures reliable electrical conductivity.

Operating temperature range from -40°C to 85°C for versatile industrial applications. Coil resistance of 847 ohms and coil power of 170mW for efficient operation. High breakdown voltage of 4000V and surge voltage of 6000V for durability.

Through hole terminal type with SPST contact configuration. Typical applications include industrial and office equipment, timers, counters, and programmable controllers. Manufactured in Czech Republic with RoHS, UL, and VDE standards compliance.
