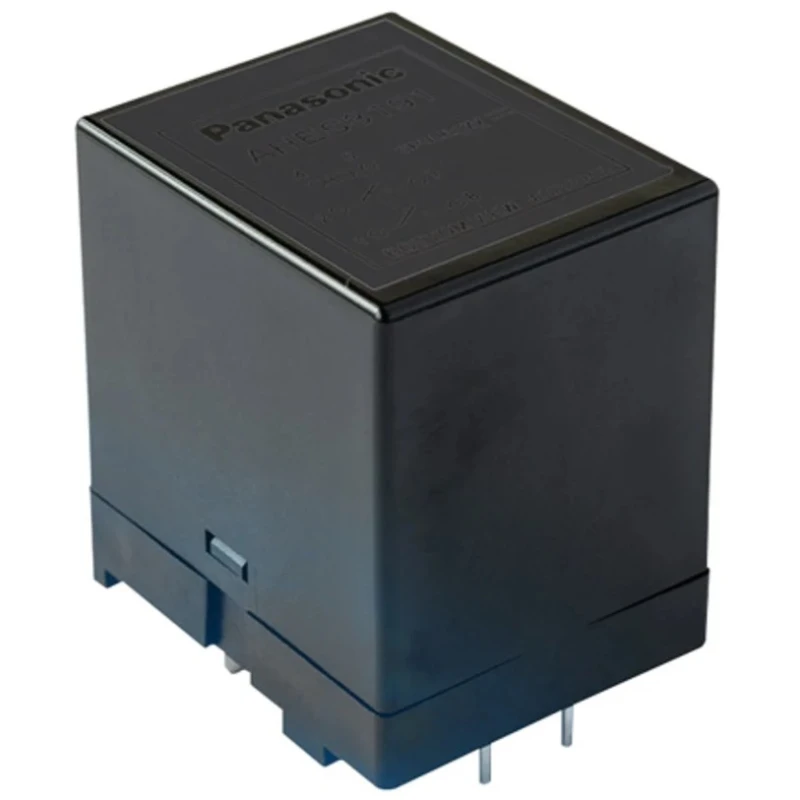

Panasonic PCB Power Relay 12V dc Coil 35A Switching Current DPST AHES3291
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 40mm |
| Length | 30mm |
| Model | AHES3291 |
| Width | 36mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS |
| Coil Resistance | 76.6Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 480V |
| Coil Power | 1.88W |
Key Features
- Compact design ensures easy integration into PCB circuits.
- Coil voltage of 12V dc enables efficient switching operations.
- Supports high switching current of 35A for demanding industrial applications.
- DPST contact configuration offers double-pole, single-throw functionality.
- Wide operating temperature range extends from -40°C to 85°C for robust performance.
- Silver alloy contacts provide excellent conductivity and longevity.
- Compliant with VDE and RoHS standards for safety and environmental compliance.
- Suitable for photovoltaic power generation systems, UPS, inverters, air conditioners, and industrial equipment.
Product Description
Panasonic AHES3291 PCB Power Relay features a 12V dc coil and a robust 35A switching current capacity in a DPST contact configuration. This relay is compact in size with dimensions of 40mm height, 36mm width, and 30mm length, making it ideal for PCB mounting applications.
The relay operates over a wide temperature range from -40°C to 85°C, ensuring reliable performance under harsh industrial and environmental conditions. It uses silver alloy contacts with a low contact resistance of 100mΩ, enhancing switching efficiency and durability.
This power relay’s coil resistance is 76.6Ω with a coil power rating of 1.88W, supporting stable operation. It can handle switching DC voltage up to 110V and AC voltage up to 480V, offering versatility in various electrical and electronic circuits.
Designed to meet VDE and RoHS standards, the AHES3291 is suited for use in photovoltaic power generation systems (solar inverters), uninterruptible power supplies (UPS), inverters, office air conditioners, and a wide range of industrial equipment.
Compact size for PCB mounting. 12V dc coil voltage for efficient control. High 35A switching current capacity. DPST contact configuration doubles circuit control capabilities. Wide operating temperature range for reliable use.
Durable silver alloy contacts with low resistance. Compliance with safety and environmental standards. Ideal for energy management and industrial applications.
Choose Panasonic AHES3291 power relay for robust, high-performance switching in critical power management and industrial automation systems. Explore more in our Electronics & Electricals collection at EnvMart for quality and reliability.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic AHES3291 power relay has a switching current capacity of 35A, making it suitable for demanding industrial applications.
This model operates with a coil voltage of 12V DC, enabling efficient switching operations.
The dimensions of the Panasonic AHES3291 relay are 40mm in height, 36mm in width, and 30mm in length, making it compact for PCB mounting applications.
The relay features a DPST (Double-Pole, Single-Throw) contact configuration, allowing for double circuit control capabilities.
The Panasonic AHES3291 operates over a wide temperature range from -40°C to 85°C, ensuring reliable performance in various conditions.
It uses silver alloy contacts, which provide excellent conductivity and longevity with a low contact resistance of 100mΩ.
This relay can handle switching DC voltage up to 110V and AC voltage up to 480V, offering versatility in electrical circuits.
The coil resistance of this relay is 76.6Ω, which supports stable operation.
Yes, the Panasonic AHES3291 is compliant with VDE and RoHS standards for safety and environmental compliance.
This relay is suitable for photovoltaic power generation systems, uninterruptible power supplies (UPS), inverters, air conditioners, and various industrial equipment.
The coil power rating for the AHES3291 is 1.88W, which contributes to its efficient operation.
This model is designed for PCB mounting, making it easy to integrate into circuit boards.
