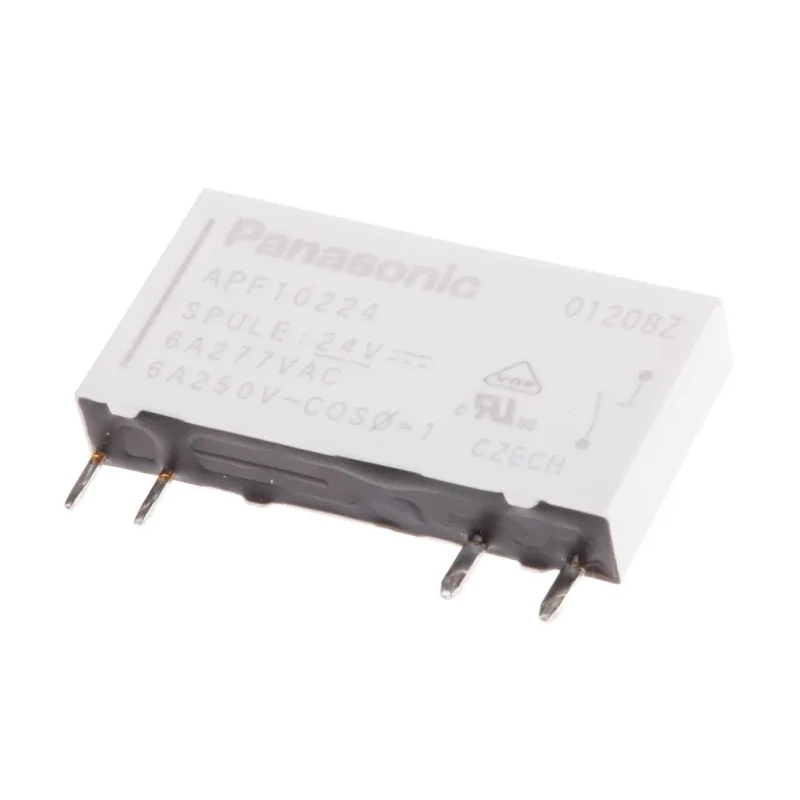

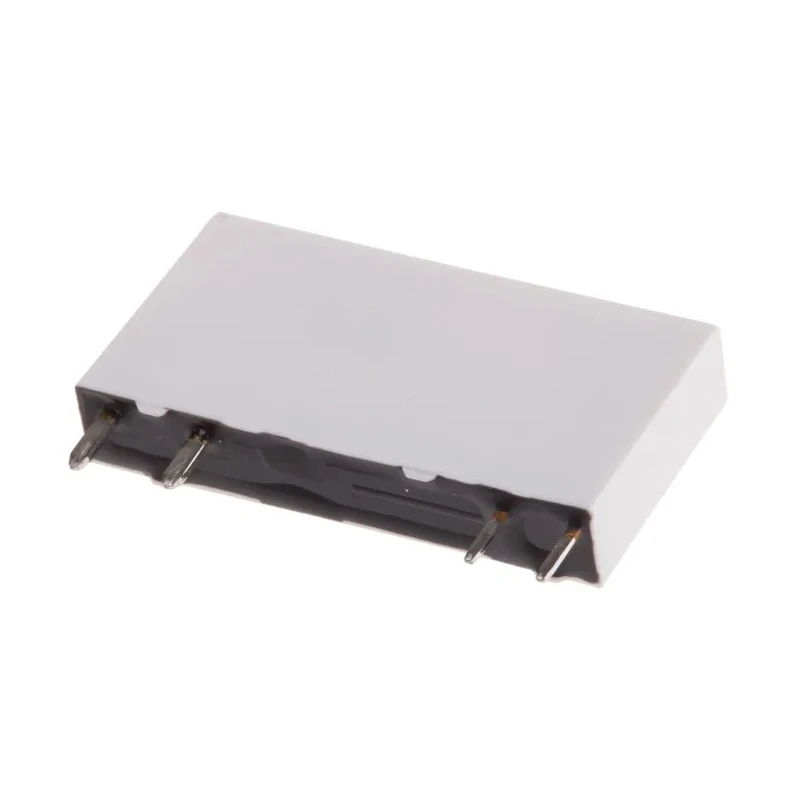

Panasonic PCB Power Relay 24V DC Coil 6A Switching Current SPST APF10224
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 28mm |
| Model | APF10224 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | APF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, VDE, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6465Brand: PanasonicManufacturers Part No.: APF10224Distrelec Article No.: 13711207 |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
Key Features
- Compact design with only 5mm width for high-density PCB mounting.
- Sealed construction supports automatic washing for reliability.
- Suitable for industrial, office, and household equipment use in Europe.
- High switching capacity at 6A 250VAC with high breakdown voltage of 4000V.
- Coil resistance rated at 3.4kΩ with low coil power consumption of 170mW.
- Suitable operating temperature range from -40°C to 85°C.
- Silver alloy contact material provides robust electrical connection.
- Contact resistance is low at 100mΩ ensuring efficient switching.
Product Description
Panasonic APF10224 PCB Power Relay features a 24V DC coil and supports a switching current of 6A with an SPST contact configuration, optimized for reliable operation in a variety of electrical and automation applications. With a slim 5mm width and sealed construction, this PCB-mounted power relay enables high-density circuit board designs and can withstand automatic washing processes.
This relay is ideal for use in programmable controllers, measuring equipment, timers, counters, temperature controllers, and various industrial, office, and household appliances across Europe. The APF series is known for a high switching capacity of 6A at 250VAC and AC15-DC15 classifications. It features a high breakdown voltage of 4000V along with surge voltages up to 6000V, enhancing its durability and reliability in harsh conditions.
The coil resistance is 3.4kΩ with a low coil power consumption of 170mW, allowing for energy-efficient operation. It has a wide operating temperature range from -40°C to 85°C, suitable for various environmental conditions. The contact material is silver alloy, ensuring excellent conductivity and low contact resistance of 100mΩ.
Terminals are of through hole type, facilitating easy mounting on printed circuit boards. The relay complies with international safety and quality standards including RoHS, VDE, and UL, ensuring it meets rigorous industry requirements for performance and safety.
A relay socket with LED indication and hold-down clip is available separately, enhancing ease of installation and monitoring. This product is manufactured in the Czech Republic and is shipped new with full technical support.
Panasonic PCB Power Relay APF10224 is perfect for applications in industrial automation, laboratory instrumentation, HVAC, manufacturing, and electrical control systems requiring a reliable, compact relay solution.
Explore the entire range of Power Relays at EnvMart for more advanced options and compatible accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 6A at 250VAC.
The coil voltage for this relay is 24V DC.
It has a width of 5mm, a height of 15mm, and a length of 28mm.
It features a Single Pole Single Throw (SPST) contact configuration.
The contact resistance is low at 100mΩ, ensuring efficient switching.
It operates within a temperature range of -40°C to 85°C.
The coil resistance is rated at 3.4kΩ.
It complies with RoHS, VDE, and UL standards, ensuring it meets industry requirements.
The coil power consumption is low at 170mW.
This model uses a through hole type terminal for easy mounting on printed circuit boards.
The contact material is silver alloy, providing robust electrical connection.
This relay is manufactured in the Czech Republic.
