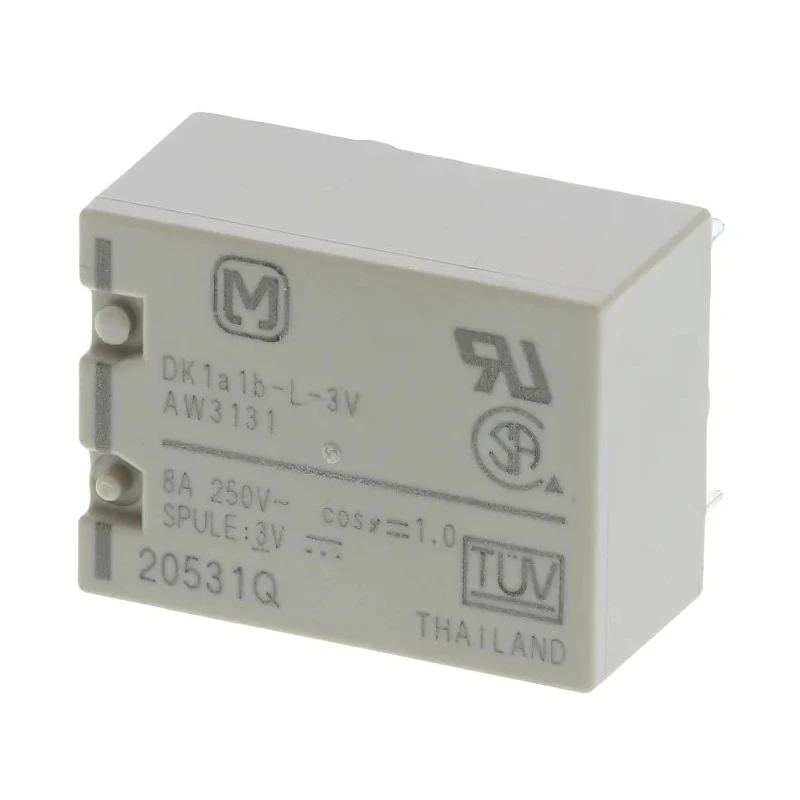

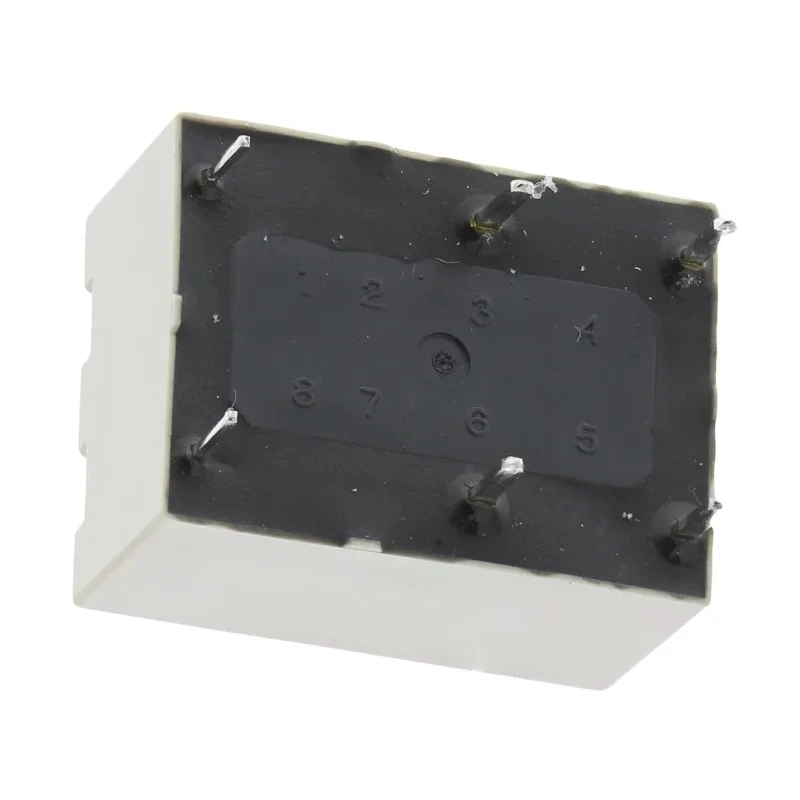

Panasonic PCB Power Relay 3V DC Coil 8A Switching Current SPDT DK1A1B-L-3V

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PCB Power Relay 3V DC Coil 8A Switching Current SPDT DK1A1B-L-3V

Name: Panasonic PCB Power Relay 3V DC Coil 8A Switching Current SPDT DK1A1B-L-3V
Brand: Panasonic
SKU: 352452
Price: 12.34 USD
Availability: InStock



Category Power Relays Brand Panasonic Condition New

Specifications

Country of Origin	Thailand
Brand	Panasonic
Height	9.7mm
Length	20mm
Model	DK1A1B-L-3V
Width	15mm
Mount Type	PCB
Contact Material	Gold Plated
Maximum Operating Temperature	65°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Through Hole
High Sensitivity	200 mW nominal operating power
Standards/Approvals	RoHS, UL, IEC, CE, VDE, TUV
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	699-6017Brand: PanasonicManufacturers Part No.: DK1A1B-L-3V
Coil Resistance	45Ω
Coil Voltage	3V dc
Switching DC Voltage	125V dc
Switching AC Voltage	125V ac
Coil Power	200mW

Key Features

This relay is designed for PCB mounting with through-hole terminals.
It operates reliably in temperatures ranging from -40°C to 65°C.
The coil resistance is 45Ω with a coil power of 200mW.
Switching voltage ratings include 125V DC and 125V AC.
The contact material is gold plated for enhanced conductivity and durability.
Compact dimensions of 20mm length, 15mm width, and 9.7mm height suit space-constrained applications.
Sealed construction offers reliability and facilitates automatic washing.
High sensitivity with nominal operating power of 200mW ensures efficient performance.

Product Description

Panasonic DK1A1B-L-3V is a PCB mount miniature power relay designed for high capacity and high sensitivity in industrial and automation applications. It features a 3V DC coil voltage with a coil resistance of 45Ω and nominal coil power consumption of 200mW, ensuring low power operation.

The relay supports a switching current of 8A with an SPDT contact configuration, suitable for both AC and DC switching voltages up to 125V AC or DC. Its gold-plated contacts provide excellent conductivity and resistance to corrosion, enhancing its durability and longevity.

With compact dimensions of 20mm (length) x 15mm (width) x 9.7mm (height) and sealed construction, it is designed for PCB mounting and through-hole terminal connections. The sealed design allows for automatic washing and protection from environmental contaminants.

The operating temperature range from -40°C to 65°C makes it suitable for a wide range of industrial, laboratory, HVAC, and manufacturing control environments. The relay is approved to comply with multiple international standards including RoHS, UL, IEC, CE, VDE, and TÜV, indicating high quality and safety.

Designed for power switching and industrial automation control systems. Suitable for PLCs, temperature controllers, timers, industrial machinery, and home appliance applications. Compact size with high surge withstanding capability up to 10,000V between coil and contacts.

Sealed construction ensures reliability in harsh environments. Gold-plated contacts for low contact resistance and durability. Low coil power consumption for energy efficient operation.

This relay is an ideal choice for engineers and designers requiring a reliable, compact, and sensitive PCB power relay for a variety of electrical and automation applications. Explore Panasonic products and reliable power relay solutions on EnvMart.
