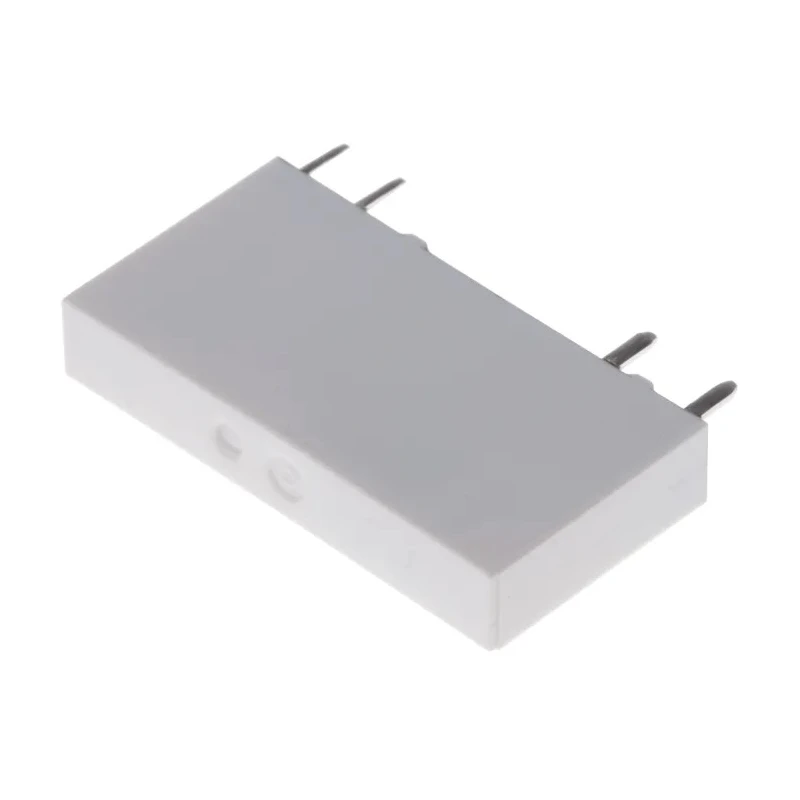

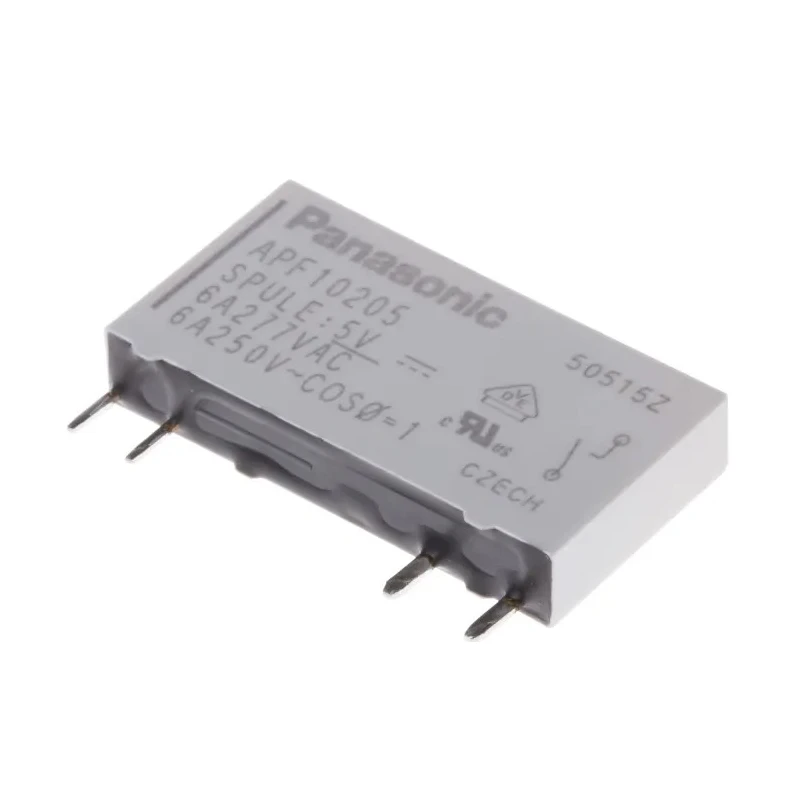

Panasonic PCB Power Relay 5V DC Coil 6A Switching Current SPST APF10205

Panasonic APF10205 PCB Power Relay is a high-performance power relay designed for PCB mounting with a compact form factor measuring 28mm in length, 15mm in height, and 5mm in width. Featuring a 5V DC coil and a switching current of 6A, this SPST relay allows reliable switching and control in various industrial, laboratory, electrical, and HVAC applications.

This relay's sealed construction makes it suitable for environments requiring automatic washing while maintaining superior durability. The contact material is made of silver alloy offering low contact resistance of 100mΩ for efficient electrical conduction. It supports high switching power up to 1.5kVAC and high breakdown voltages of 4000V along with 6000V surge voltage capacity, ensuring excellent performance under surge conditions.

Typical applications include programmable controllers, measuring equipment, timers, counters, temperature controllers, office equipment, and household appliances targeting European market standards. The relay operates reliably over a wide temperature range from -40°C to 85°C and meets international safety and environmental standards including UL, VDE, and RoHS.

The coil resistance of 147Ω and coil power rating of 170mW contribute to its low energy consumption. A separate PCB relay socket with LED indicator and hold down clip enhances ease of installation and status indication, although approvals applicable to the relay do not extend to the socket.

This power relay features a single-pole single-throw (SPST) contact configuration. Compact PCB mount design with only 5mm width supports high density circuit boards. Silver alloy contacts ensure low contact resistance and long operational life.

Sealed construction prevents contamination and allows for automated washing processes. Suitable for industrial, office, and household appliances designed to European standards. High switching capacity supports up to 6A at 250VAC with a switching power of 1.5kVAC.

Wide operating temperature range from -40°C to 85°C enables versatile environmental use. Includes coil resistance of 147Ω and a coil power of 170mW for efficient operation. Relay socket with LED indication and hold down clip available separately for ease of installation.

Complies with UL, VDE, and RoHS safety and environmental standards.

This relay is an ideal component for industrial automation, electrical equipment, HVAC systems, manufacturing control panels, and laboratory instruments requiring reliable and compact power switching solutions. Browse the Electronics & Electricals category to explore more Power Relays and related components.
