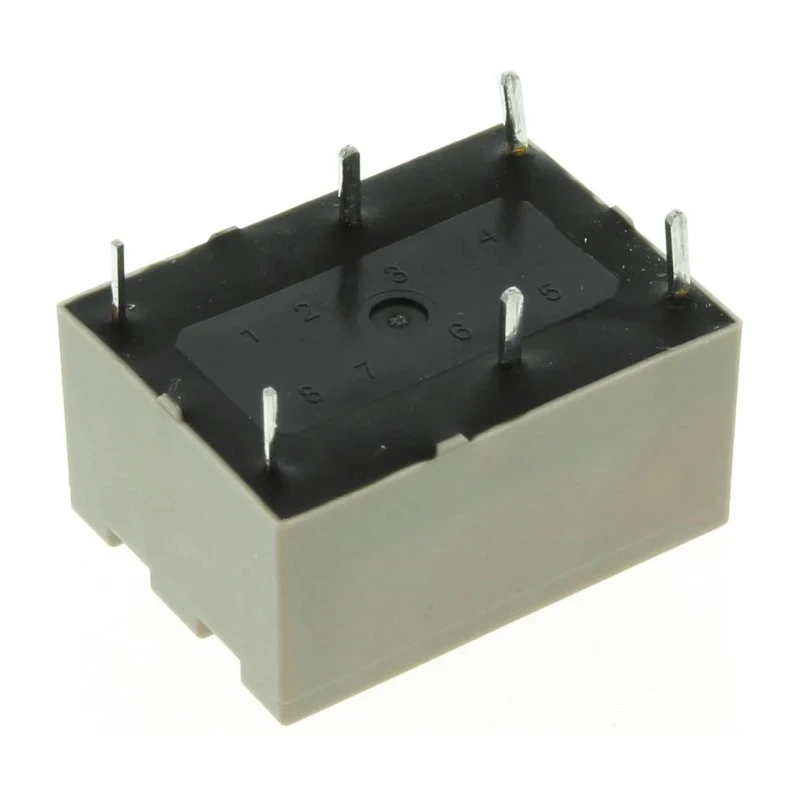

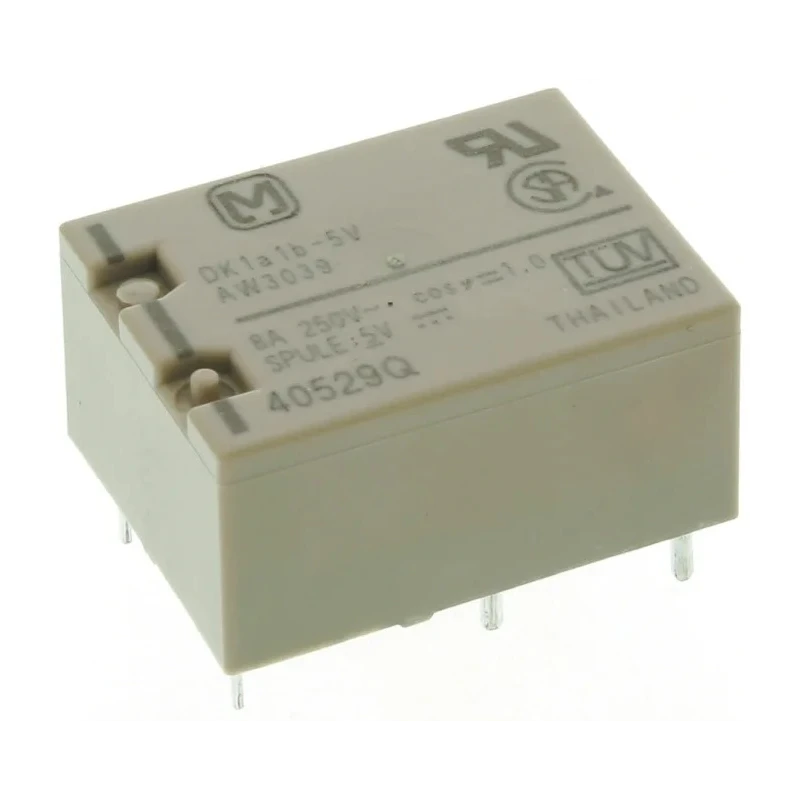

Panasonic PCB Power Relay 5V dc Coil 8A Switching Current DPST DK1A1B-5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 9.7mm |
| Length | 20mm |
| Model | DK1A1B-5V |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DK |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| High Sensitivity | 200 mW nominal operating power |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA, VDE, RoHS, TUV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6014Brand: PanasonicManufacturers Part No.: DK1A1B-5V |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
Key Features
- Compact size with dimensions of 20mm length, 15mm width, and 9.7mm height.
- High sensitivity coil with nominal operating power of 200 mW.
- Gold plated contacts delivering low contact resistance of 30 mΩ.
- Wide operating temperature range from -40°C to 65°C.
- Sealed construction allowing automatic washing and durability in industrial environments.
- Switching voltage capabilities of up to 125V AC and 125V DC.
- Through hole terminal type suitable for PCB mounting.
- High surge withstanding voltage of 10,000 V between coil and contacts.
Product Description
Panasonic DK1A1B-5V PCB Power Relay offers a reliable and compact solution for power switching in industrial machinery, PLC systems, temperature controllers, timers, and home appliances. Featuring a 5V DC coil and a Double Pole Single Throw (DPST) contact configuration, this relay handles switching currents up to 8A, making it suitable for various electrical automation applications.
Its sealed miniature design, measuring 20mm in length, 15mm in width, and 9.7mm in height, allows automatic washing and enhances durability. The relay includes gold plated contacts ensuring low contact resistance of 30 milliohms, boosting electrical performance and longevity. Operating temperatures range from -40°C to 65°C, enabling use in harsh environments.
The coil’s nominal operating power is 200 milliwatts, indicating high sensitivity and energy efficiency. Its switching capabilities support both 125V AC and 125V DC loads, with a robust surge withstand voltage of 10,000V between the coil and contacts providing high reliability in demanding power switching contexts.
Through hole terminal type facilitates secure PCB mounting, while compliance with widely recognized safety and quality standards such as UL, CSA, VDE, RoHS, and TUV ensures global industrial acceptance.
Compact size and sealed construction for robust industrial usage. High sensitivity coil with low power consumption. Gold plated contacts for enhanced conductivity and durability. Wide temperature operating range suitable for various environments.
Suitable for automation, control gear, and home appliances. High voltage switching capacity and surge withstand features.
This Panasonic DK series power relay is ideal for industrial, manufacturing, automation, HVAC, and electrical control applications requiring reliable PCB-mounted relays with precise electrical switching capabilities. Explore EnvMart for more industrial relays and power switching solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of up to 8A, making it suitable for various electrical automation applications.
The relay measures 20mm in length, 15mm in width, and 9.7mm in height, allowing for compact PCB mounting.
The coil voltage for this relay is 5V DC, which is essential for its operation.
The coil has a nominal operating power of 200 milliwatts, indicating high sensitivity and energy efficiency.
This relay features a Double Pole Single Throw (DPST) contact configuration, suitable for various switching applications.
The contact resistance is 30 milliohms, which enhances electrical performance and longevity.
The maximum operating temperature for the relay is 65°C, allowing it to function in a wide range of environments.
This relay complies with several recognized standards, including UL, CSA, VDE, RoHS, and TUV, ensuring global industrial acceptance.
The relay has a high surge withstand voltage of 10,000V between the coil and contacts, providing reliability in demanding applications.
This model features a through hole terminal type, which is suitable for secure PCB mounting.
The minimum operating temperature for this relay is -40°C, enabling its use in harsh conditions.
The contacts of this relay are made of gold plated material, which helps deliver low contact resistance and enhanced conductivity.
