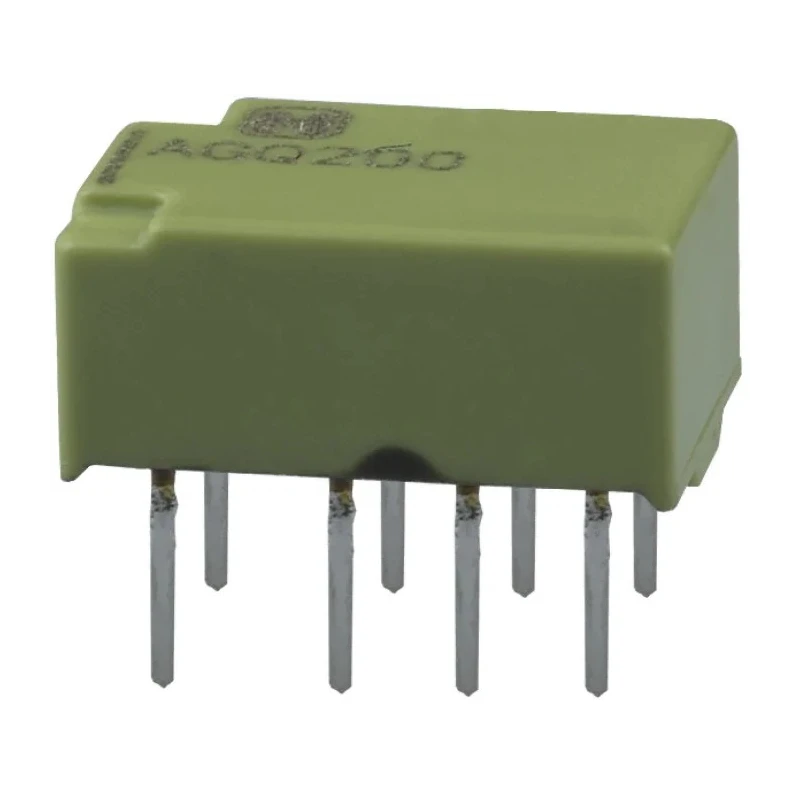

Panasonic PCB Signal Relay 12V DC Coil 1A DPDT Compact Flat Body AGQ26012
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.2mm |
| Length | 10.6mm |
| Model | AGQ26012 |
| Width | 7.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-C1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5929Brand: PanasonicManufacturers Part No.: AGQ26012 |
| Coil Resistance | 1440Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Compact flat body with dimensions 10.6 x 7.7 x 5.2 mm for space-efficient PCB mounting.
- Offers high surge resistance and sealed construction allowing automatic washing.
- Gold plated silver aluminium contacts ensure durable, low-resistance connectivity.
- Wide operating temperature range from -40°C to 85°C for versatile application environments.
- Coil resistance of 1440Ω and nominal coil power of 100 mW enhance energy efficiency.
- Typical uses include telecommunications, security equipment, measurement, and audio-visual electronics.
- Functional shock resistance of 705 m/s2 and destruction vibration resistance from 10 to 55Hz provide rugged performance.
- Compliant with RoHS standards ensuring environmental and safety compliance.
Product Description
Panasonic AGQ26012 PCB Signal Relay is a compact, highly reliable relay designed for PCB mounting with a 12V DC coil and a DPDT (Double Pole Double Throw) contact configuration. The relay features a compact flat body measuring 10.6 mm in length, 7.7 mm in width, and 5.2 mm in height, allowing high packaging density and space-saving in electronic assemblies.
This relay offers superior surge resistance with ratings of 2500V 2x10 μs and 1500V 2x160 μs, making it suitable for demanding industrial and electronic environments where voltage spikes occur. Its sealed construction permits automatic washing, ensuring durability in manufacturing processes.
The coil has a resistance of 1440 ohms and consumes nominal power of 100 mW, contributing to energy-efficient operation. The contacts are made of gold plated silver aluminium, enhancing conductivity and minimizing contact resistance over long service life.
Designed to operate reliably across a wide temperature range from -40°C to 85°C, the AGQ26012 relay also provides excellent vibration and shock resistance, with functional shock tolerance up to 705 m/s² and destruction vibration resistance between 10 to 55 Hz.
Compact design with dimensions suitable for dense PCB layouts. High sensitivity and durable contact materials for reliable switching. Sealed construction enabling automatic cleaning processes. Wide operating temperature range supports various industrial applications.
Compliant with RoHS standards for environmental safety. Applications include telephone switchboards, telecommunications, security systems, measurement instruments, and consumer electronics. Manufactured in Japan ensuring quality and performance standards.
This Panasonic PCB Signal Relay is ideal for industrial automation, telecommunications, and electronic device manufacturing sectors requiring compact, durable, high-performance relays. It is part of the FTR-C1 series known for compactness and reliability.
Explore the comprehensive range of Panasonic relays and related components on EnvMart for high-quality electronic signal control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AGQ26012 relay has dimensions of 10.6 mm in length, 7.7 mm in width, and 5.2 mm in height, making it suitable for space-efficient PCB mounting.
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The relay operates with a coil voltage of 12V DC and has a coil resistance of 1440Ω.
The maximum operating temperature for the AGQ26012 relay is 85°C, while the minimum operating temperature is -40°C.
The AGQ26012 relay has a switching current rating of 1A, making it suitable for various electronic applications.
The contacts of this relay are made from gold plated silver aluminium, which enhances conductivity and reduces contact resistance.
This relay is typically used in telecommunications, security equipment, measurement instruments, and audio-visual electronics.
The nominal coil power for this relay is 100 mW, contributing to its energy-efficient operation.
The AGQ26012 relay has a functional shock resistance of 705 m/s², providing rugged performance in demanding environments.
Yes, the AGQ26012 relay is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
This model offers destruction vibration resistance from 10 to 55 Hz, making it suitable for various industrial applications.
The relay is designed for PCB mounting, which allows for high packaging density in electronic assemblies.
