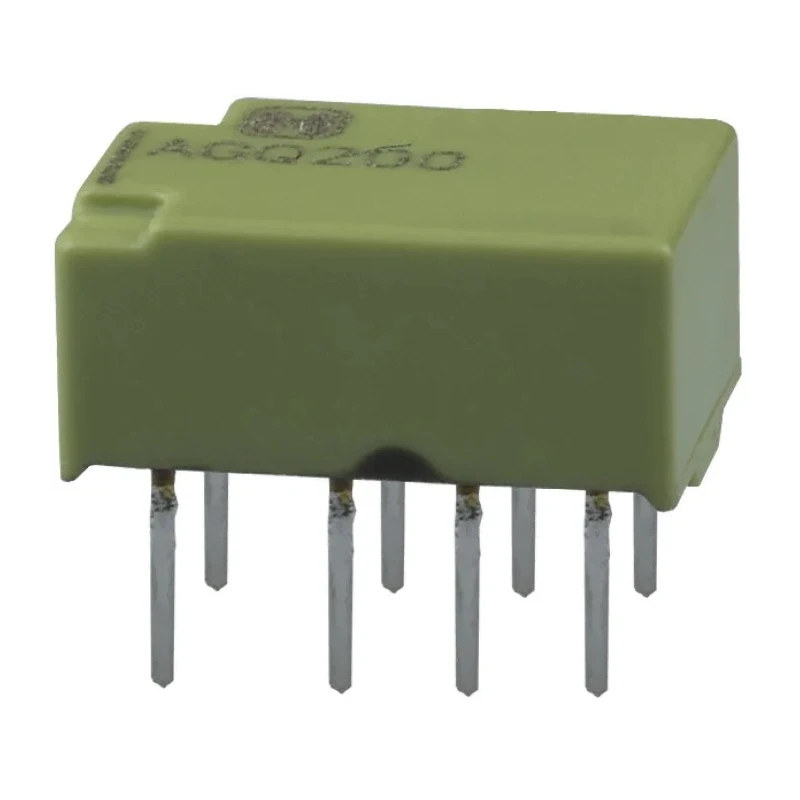

Panasonic PCB Signal Relay 12V DC Coil 1A DPDT AGQ21012
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.2mm |
| Length | 10.6mm |
| Model | AGQ21012 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | AGQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5904Brand: PanasonicManufacturers Part No.: AGQ21012 |
| Coil Resistance | 1.44kΩ |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- The compact dimensions of 10.6 x 7.2 x 5.2 mm enable high packaging density.
- The relay coil operates at 12V DC with a coil power consumption of 100 mW.
- Switching capabilities include 1A current, 125V AC and 110V DC voltage handling.
- Contact resistance is low at 100 milliohms, with gold plated contacts for reliable signal transmission.
- Suitable for telecommunications, security, measurement, and consumer electronic applications.
- High surge resistance rating of 2500V and durable sealed construction allows automated PCB washing.
- Operating temperature range spans from -40°C up to 85°C for industrial-grade use.
- Through hole terminal type ensures stable mounting and connectivity on PCBs.
Product Description
Panasonic AGQ21012 PCB Signal Relay features a compact flat body with a small footprint measuring 10.6 mm in length, 7.2 mm in width, and 5.2 mm in height. With a 12V DC coil and 1A switching current, this DPDT relay is ideal for switching signal lines in electronic equipment.
The relay coil consumes 100 milliwatts of power while providing high sensitivity and superior surge resistance, rated at 2500V (2 pulses × 10 microseconds) and 1500V (2 pulses × 160 microseconds). The gold plated contacts minimize contact resistance and ensure consistent performance over extended periods.
This sealed construction relay can withstand functional shocks of 705 m/s² and vibrations in the 10 to 55 Hz frequency range, making it suitable for demanding industrial environments. The design allows for automatic washing of circuit boards after relay mounting, enhancing manufacturing efficiency.
Its typical applications include use in telephone switchboards, telecommunications equipment, security systems, measurement instruments, and consumer electronic and audiovisual equipment where reliable signal switching is critical.
The compact physical dimensions support increased PCB mounting density within complex circuits. Low coil power consumption reduces energy usage and heat generation in sensitive electronics. High surge and vibration resistance enhance operational reliability under harsh conditions.
Gold plated contact material ensures long-lasting, corrosion-resistant electrical connections. Wide operating temperature range supports diverse environmental conditions. Originating from Japan, this Panasonic AGQ21012 relay meets RoHS compliance standards, reflecting responsible environmental manufacturing practices.
