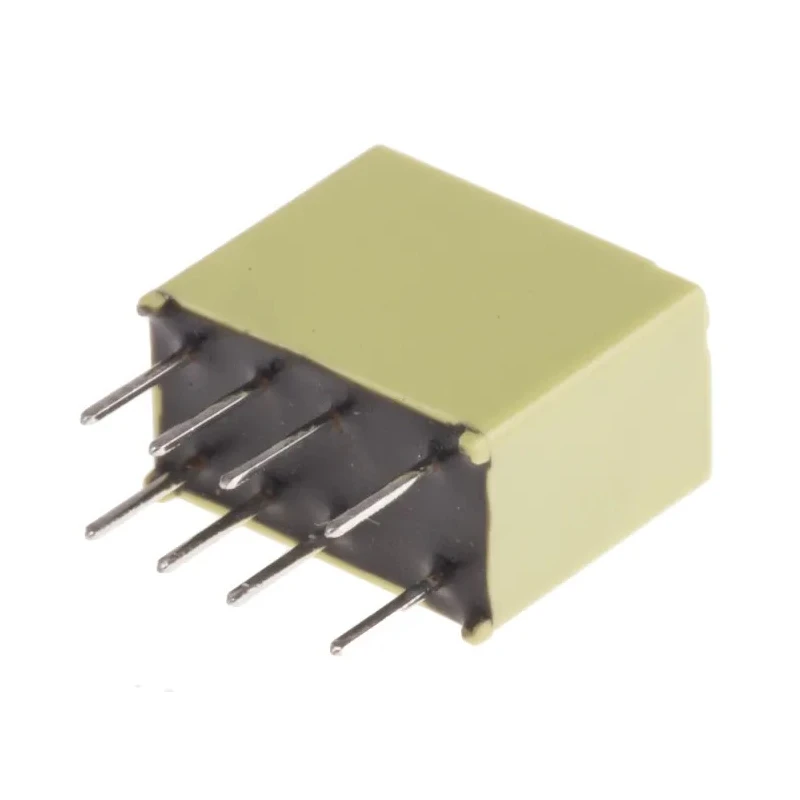

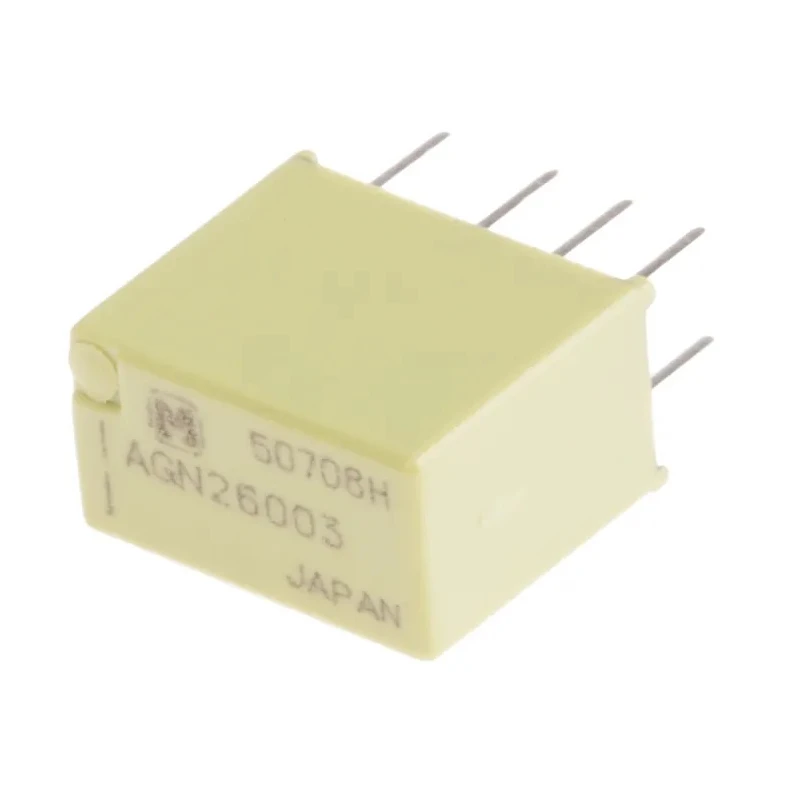

Panasonic Signal Relay Surface Mount 3V DC Coil 1A DPDT AGN26003
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.9mm |
| Model | AGN26003 |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5878Brand: PanasonicManufacturers Part No.: AGN26003 |
| Coil Resistance | 90Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Compact slim body dimensions of 10.9mm length, 5.7mm width, and 9mm height.
- High contact reliability with gold plated silver aluminium contacts.
- Operates within temperature range of -40°C to 85°C.
- Designed for surface PCB mounting with excellent surge resistance.
- Typical applications include telecommunications and measurement equipment.
- Power consumption of coil is 100mW with 90Ω coil resistance.
- Switching capability up to 125V AC and 110V DC voltage.
- Sealed construction allows automatic washing and enhanced durability.
Product Description
Panasonic AGN26003 Signal Relay is a surface mount device featuring a 3V DC coil and 1A switching current with DPDT contact configuration. This ultra-small PCB mount relay boasts a compact slim body measuring 10.9mm length, 5.7mm width, and 9mm height, ideal for high-density packing and low-height applications in industrial electronics.
The relay utilizes gold plated silver aluminium contacts that provide excellent contact reliability and durability. The coil resistance of 90Ω and coil power consumption of just 100mW ensure efficient operation. It supports switching voltages of 125V AC and 110V DC, making it versatile for a wide range of control and signal applications.
Designed with a sealed construction, the relay allows for automatic washing and offers outstanding surge resistance along with high vibration and shock resistance. It operates reliably in harsh environments with operating temperatures from -40°C to 85°C, making it suitable for telecommunications, measurement instruments, audio visual equipment, and other industrial uses.
This model belongs to the FTR-B3 series and is manufactured in Japan, complying with RoHS standards. The surface mount PCB terminal type facilitates easy and reliable installation on circuit boards.
Compact slim body dimensions of 10.9mm x 5.7mm x 9mm. Twin crossbar contacts ensure high contact reliability. Outstanding surge resistance for enhanced durability. Sealed construction design supports automatic washing. Operating temperature range from -40°C to 85°C for broad application use.
Gold plated silver aluminium contact material for long service life. Suitable for telecommunications, measurement, and audio visual equipment. Complies with RoHS standards. Discover a wide range of Signal Relays and electronic components in the Electronics & Electricals category at EnvMart to support your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 10.9mm in length, 5.7mm in width, and 9mm in height.
It supports a switching current of up to 1A.
The coil voltage for this relay is 3V DC.
It operates within a temperature range of -40°C to 85°C.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 90Ω.
It can switch up to 125V AC and 110V DC.
The contacts are made of gold plated silver aluminium, providing high contact reliability.
It is designed for surface mounting with PCB terminals.
It is suitable for telecommunications, measurement instruments, and audio visual equipment.
This model complies with RoHS standards.
The coil power consumption is 100mW.
