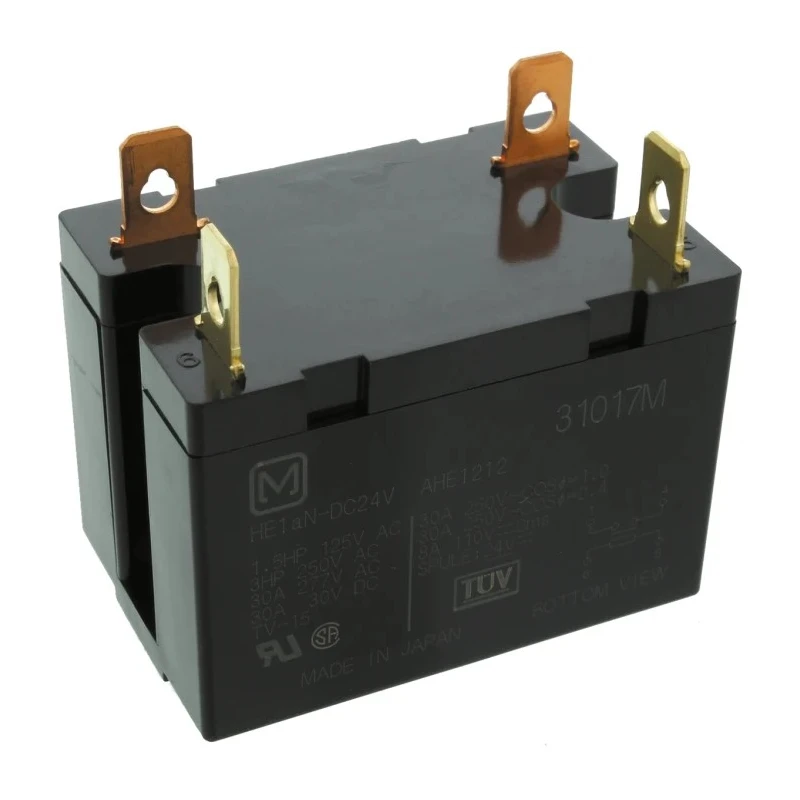

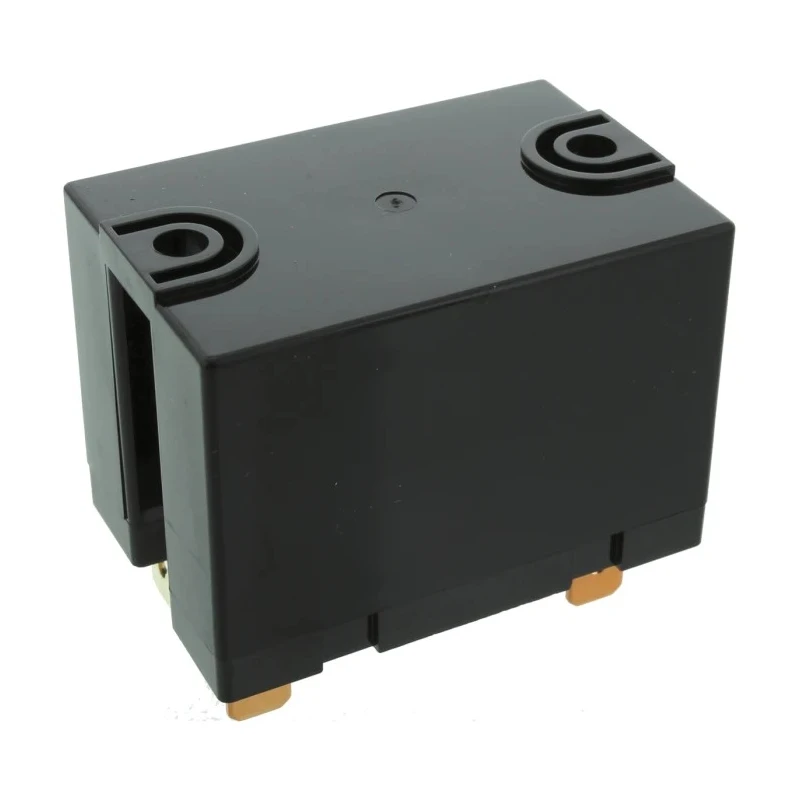

Panasonic PCB Power Relay 24V DC Coil 30A Switching Current SPST HE1AN-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 35mm |
| Length | 50mm |
| Model | HE1AN-DC24V |
| Width | 33mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -50°C |
| Switching Current | 30A |
| Terminal type | Through Hole |
| Typical Applications | Machine tools, Moulding equipment, Air conditioners, Heating equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS, TUV, CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5648Brand: PanasonicManufacturers Part No.: HE1AN-DC24VDistrelec Article No.: 13711146 |
| Coil Resistance | 300Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.92W |
Key Features
- This power relay is designed for PCB mounting with through-hole terminals.
- The coil resistance is 300 ohms ensuring efficient operation at 1.92W coil power.
- It can switch both AC (up to 277V) and DC voltages (up to 30V) reliably.
- The relay operates between -50°C and 55°C, suitable for varied industrial environments.
- Contact material is silver alloy with a low contact resistance of 100 milliohms to ensure durability.
- Compact dimensions of 50mm length, 33mm width, and 35mm height support space-saving designs.
- High surge resistance of over 10,000V protects against transient voltages.
- Typical applications include machine tools, moulding equipment, air conditioners, and heating equipment.
Product Description
Panasonic HE1AN-DC24V PCB Power Relay is a high-capacity relay equipped with a 24V DC coil and a switching current rating of 30A. This SPST (Single Pole Single Throw) relay is designed for PCB mounting and features through-hole terminals that facilitate secure installation in electronic assemblies.
The relay coil has a resistance of 300 ohms and consumes 1.92W of power, ensuring reliable activation. It is capable of switching DC voltages up to 30V and AC voltages up to 277V, making it versatile across different industrial applications.
Operating in a temperature range from -50°C to 55°C, the HE1AN-DC24V can withstand harsh environmental conditions. Its silver alloy contacts with a minimal contact resistance of 100 milliohms provide excellent conductivity and long service life.
With compact dimensions (50mm length, 33mm width, and 35mm height) and advanced surge resistance of more than 10,000V, this relay ensures protection and reliability in demanding industrial environments.
Typical uses include integration into machine tools, moulding equipment, air conditioners, and heating equipment, where high performance and durability are essential. This relay complies with international standards and safety certifications such as VDE, RoHS, TUV, CSA, and UL, reflecting quality and regulatory adherence.
This power relay supports high switching capacity and long operational life. Surge voltage tolerance exceeds 10,000V, ensuring robustness. Pre-tension and kick-off mechanism prevents contact welding. Ideal for office, industrial, and home appliance equipment.
Compact PCB mount design suitable for space-constrained applications. Explore more Power Relays and automation components at EnvMart for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic HE1AN-DC24V power relay has a switching current rating of 30A.
This relay operates with a coil voltage of 24V DC and consumes 1.92W of power.
The relay operates effectively between -50°C and 55°C, making it suitable for various industrial environments.
It is designed for PCB mounting and features through-hole terminals for secure installation.
The dimensions of this relay are 50mm in length, 33mm in width, and 35mm in height.
The contacts of this relay are made from silver alloy, which ensures low contact resistance and durability.
It can switch AC voltages up to 277V and DC voltages up to 30V.
The contact resistance is rated at 100 milliohms, providing excellent conductivity.
This model complies with several standards including VDE, RoHS, TUV, CSA, and UL.
Typical applications include machine tools, moulding equipment, air conditioners, and heating equipment.
The relay has a high surge resistance of over 10,000V, protecting against transient voltages.
The coil resistance of this relay is 300 ohms, ensuring efficient operation.
