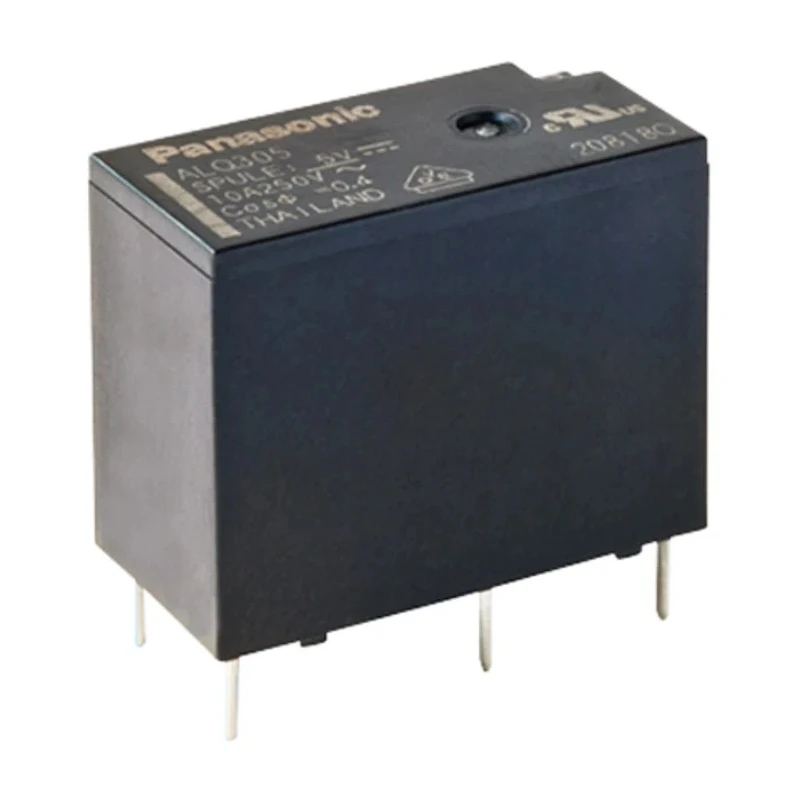

Panasonic PCB Power Relay 24V dc Coil, 10A Switching Current, SPST ALQ3F24
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 15.6mm |
| Length | 20mm |
| Model | ALQ3F24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Ambient Temperature | - 40°C to +85°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, VDE |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 200mW |
| Switching Power | 150W |
| High surge voltage | 8000 V |
| High breakdown voltage | 4000 V |
Key Features
- Compact size with high switching capacity for industrial applications.
- Operates reliably within ambient temperature range from -40°C to +85°C.
- High surge voltage tolerance of 8000 V and breakdown voltage of 4000 V for robustness.
- Silver alloy contact material and 100mΩ contact resistance ensure efficient electrical performance.
- Designed for PCB mounting with PCB pin terminals for easy integration.
- Coil resistance of 2.9kΩ with coil power consumption of 200mW.
- Supports switching AC voltage up to 250V and DC voltage up to 30V with 150W switching power.
- Suitable for use in appliances, industrial equipment, robotics, and power supply systems.
Product Description
Panasonic ALQ3F24 is a PCB power relay featuring a 24V dc coil and a 10A switching current capability with SPST contact configuration. This relay belongs to the ALQ (LQ) series, known for its compact size and robust performance under demanding conditions.
The relay operates within a wide ambient temperature range from -40°C to +85°C, making it suitable for various industrial and commercial applications such as refrigeration, cooking ovens, washing machines, air conditioners, motor control, robotics, and power supply circuits.
It offers high surge voltage endurance up to 8000 V and a substantial breakdown voltage of 4000 V, assuring durability and reliability. The contact material is silver alloy, providing low contact resistance of 100mΩ to ensure efficient electrical conduction.
The installation is designed for PCB mounting with PCB pin terminals, aiding straightforward integration into printed circuit boards. Electrical specifications include a coil resistance of 2.9kΩ, coil power consumption of 200mW, with switching power rated at 150W. It supports switching voltages of up to 250V AC and 30V DC.
This relay conforms to RoHS and VDE standards, underscoring its compliance with relevant quality and safety regulations. Manufactured in Thailand, it combines high-performance characteristics in a compact form factor suitable for automation, HVAC, manufacturing, and various industrial sectors.
Compact size with high switching capacity for industrial applications. Operates reliably within ambient temperature range from -40°C to +85°C. High surge voltage tolerance of 8000 V and breakdown voltage of 4000 V for robustness.
Silver alloy contact material and 100mΩ contact resistance ensure efficient electrical performance. Designed for PCB mounting with PCB pin terminals for easy integration. Coil resistance of 2.9kΩ with coil power consumption of 200mW.
Supports switching AC voltage up to 250V and DC voltage up to 30V with 150W switching power. Suitable for use in appliances, industrial equipment, robotics, and power supply systems.
This Panasonic ALQ3F24 power relay is an ideal component for electrical control and signal conditioning applications. Explore more products in the Power Relays category at EnvMart for diverse industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ALQ3F24 relay has a switching current capacity of 10A.
This power relay operates with a coil voltage of 24V DC.
The dimensions of this relay are 20mm in length, 10mm in width, and 15.6mm in height.
The relay operates reliably within an ambient temperature range from -40°C to +85°C.
The Panasonic ALQ3F24 features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance of this relay is 2.9kΩ.
This relay supports switching AC voltage up to 250V and DC voltage up to 30V.
The contact material in the Panasonic ALQ3F24 relay is silver alloy, which ensures low contact resistance.
The coil power consumption for this model is 200mW.
The ALQ3F24 relay has a high surge voltage tolerance of 8000 V and a breakdown voltage of 4000 V.
This relay conforms to RoHS and VDE standards, indicating compliance with relevant quality and safety regulations.
The relay is designed for PCB mounting with PCB pin terminals for easy integration into printed circuit boards.
