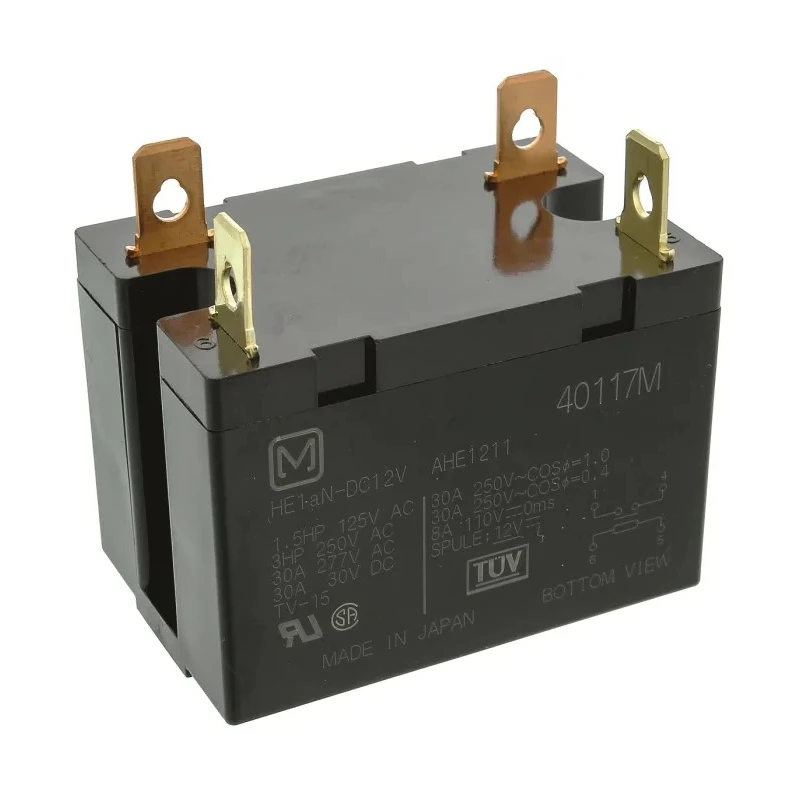

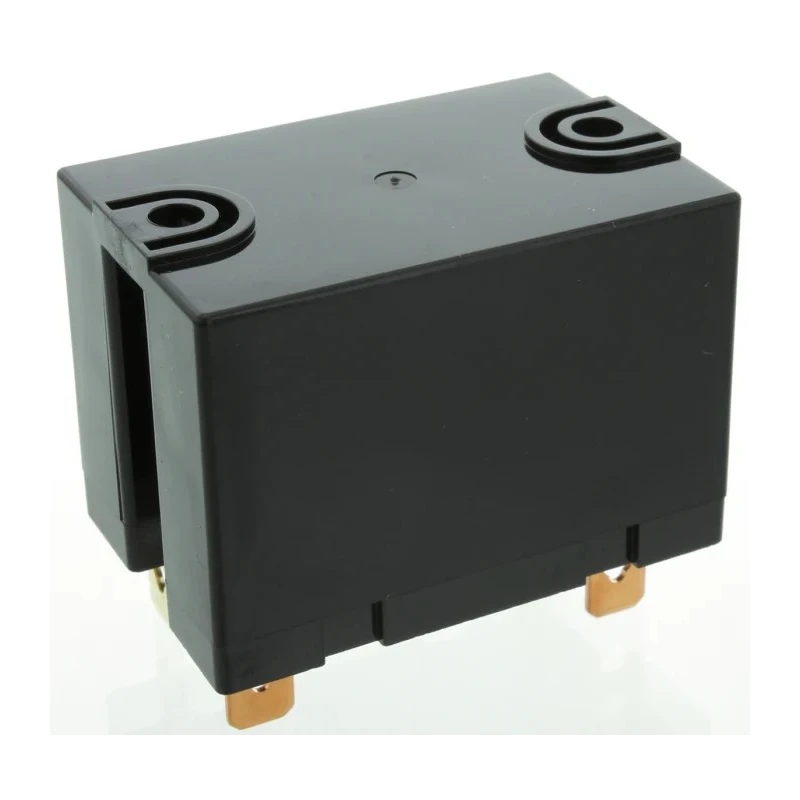

Panasonic PCB Power Relay, 12V DC Coil, 30A Switching Current, SPST HE1AN-DC12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 35mm |
| Length | 50mm |
| Model | HE1AN-DC12V |
| Width | 33mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -50°C |
| Switching Current | 30A |
| Terminal type | Through Hole |
| Typical Applications | Machine tools, Moulding equipment, Air conditioners, Heating equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, TUV, RoHS, UL, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5645Brand: PanasonicManufacturers Part No.: HE1AN-DC12VDistrelec Article No.: 13711145 |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.92W |
Key Features
- High capacity and long-life HE series power relay designed for PCB mounting.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching.
- Rated coil voltage of 12V DC and coil power consumption of 1.92W.
- Switching capabilities include 30A current at 30V DC and 277V AC voltage.
- Robust silver alloy contacts with low 100mΩ contact resistance ensure efficient conduction.
- Compact dimensions of 50mm length, 33mm width, and 35mm height.
- Wide operating temperature range from -50°C to 55°C for industrial environments.
- Through hole terminal type ensures durable and secure PCB mounting.
Product Description
Panasonic HE1AN-DC12V is a high capacity PCB mount power relay featuring a 12V DC coil and a maximum switching current of 30A, configured as SPST (Single Pole Single Throw). This relay belongs to the HE series known for its long life and excellent surge resistance, making it suitable for demanding industrial and home appliance applications.
Constructed with silver alloy contacts and equipped with a pre-tension and kick-off mechanism, the relay offers excellent resistance to contact welding and electrical surges above 10,000V. The coil power consumption is modest at 1.92W, and coil resistance is 75Ω, balancing efficiency and performance.
The relay is compact with dimensions measuring 50mm in length, 33mm in width, and 35mm in height, and uses through-hole terminals for reliable PCB installation. It operates effectively within a wide temperature range from -50°C to 55°C, suitable for various operating environments.
It meets international safety and quality standards including CSA, TUV, RoHS, UL, and VDE, ensuring dependable operation in industrial automation, office equipment, machine tools, molding equipment, air conditioners, and heating systems. Designed and manufactured in Japan, it guarantees quality and performance consistency.
High capacity and long life power relay from Panasonic's HE series. Single side stable type with surge voltage capability exceeding 10,000V. Silver alloy contacts reduce contact resistance and improve reliability. Wide operating temperature range supports diverse industrial applications.
Certifications include CSA, TUV, RoHS, UL, and VDE ensuring compliance and safety. Explore more Power Relays and electrical automation components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 30A.
This model has a coil voltage of 12V DC.
The dimensions of the relay are 50mm in length, 33mm in width, and 35mm in height.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay operates within a temperature range of -50°C to 55°C.
It uses through-hole terminals for secure PCB mounting.
The contact material is silver alloy, which helps reduce contact resistance.
This relay meets several certifications including CSA, TUV, RoHS, UL, and VDE.
The coil power consumption is 1.92W.
It is suitable for applications such as machine tools, molding equipment, air conditioners, and heating systems.
The contact resistance is rated at 100mΩ.
This relay is manufactured in Japan.
