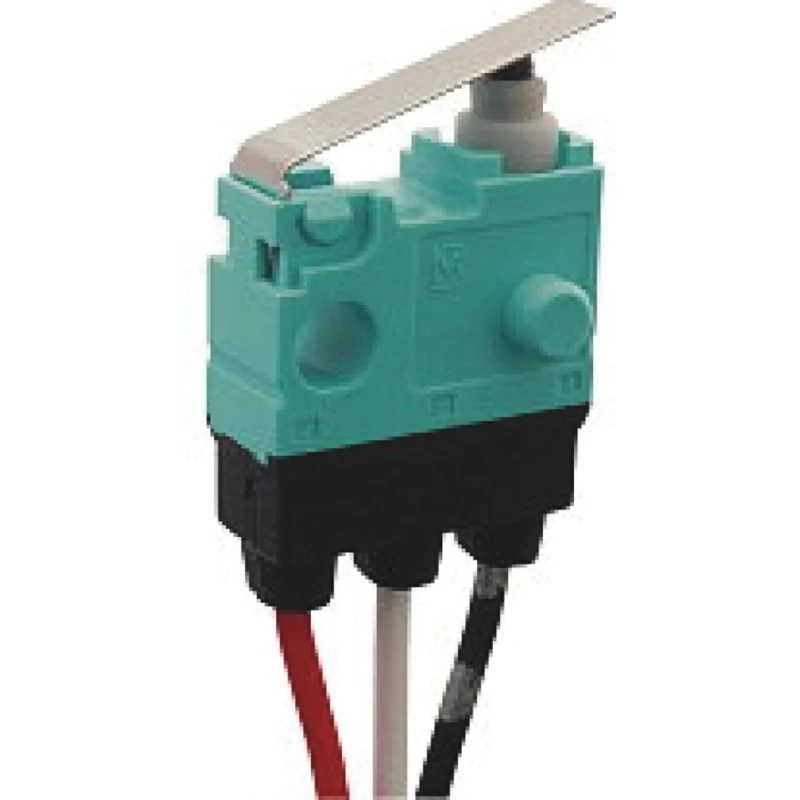

Panasonic Leaf Lever Ultra Miniature Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP67 ASQ17417
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ17417 |
| Depth | 8.3mm |
| IP Rating | IP67 |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Leaf Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-0202Brand: PanasonicManufacturers Part No.: ASQ17417 |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.7N |
| Microswitch Type | Ultra Miniature |
Key Features
- The switch features a solder terminal type for secure electrical connections.
- Its leaf lever actuator enables easy and precise operation.
- Designed for ultra miniature applications with a depth of 8.3mm.
- Supports operating temperatures ranging from -40°C to 85°C.
- Offers an operating force of 1.7N ensuring responsive switching action.
- Constructed for industrial and automotive environments with IP67 rated protection against dust and water ingress.
- SPDT contact configuration allows for versatile switching applications.
- Manufactured in Japan adhering to RoHS standards for environmental compliance.
Product Description
Panasonic ASQ17417 Leaf Lever Ultra Miniature Micro Switch is a high-performance switch designed for industrial and automotive applications. This ultra miniature switch utilizes a leaf lever actuator and solder terminal type to ensure precise and reliable operation.
The switch supports a contact current of 100mA and a contact DC voltage of 30 V dc. It features a sliding contact system which delivers a high overtravel of 2.5mm at optimum contact force, reducing bounce and hysteresis for smooth switching performance.
With an IP67 protection rating, the ASQ17417 is highly resistant to dust and water, making it suitable for harsh and demanding environments. The operating force of 1.7N offers easy actuation while ensuring reliability.
The device operates efficiently within a temperature range of -40°C to 85°C, providing durability in diverse climatic conditions. Its compact depth of 8.3mm enables integration into space-constrained designs.
Compliant with RoHS directives and manufactured in Japan, this ASQ series micro switch ensures quality and environmental safety. SPDT contact configuration offers flexibility for various switch control tasks.
The switch’s leaf lever actuator design facilitates accurate mechanical response and operational convenience. Solder terminals provide secure and lasting electrical connections critical for industrial automation systems.
Robust construction ensures longevity even in automotive and industrial automation environments. IP67 rating protects against temporary immersion and ingress of dust, enhancing reliability and performance. Compact ultra miniature size offers installation advantages in electronic control modules and instrumentation.
This Panasonic micro switch is ideal for applications in electrical, automation, industrial machinery, automotive systems, and other sectors requiring precise, reliable low-current switching in challenging environments.
Browse EnvMart for more Panasonic Micro Switches and electrical automation components optimized for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 85°C.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The operating force required for actuation is 1.7N, ensuring responsive switching action.
The depth of this ultra miniature micro switch is 8.3mm, making it suitable for space-constrained applications.
This micro switch has an IP67 rating, providing protection against dust and water ingress.
It uses solder terminals for secure electrical connections.
The minimum operating temperature for this model is -40°C, allowing it to function in extreme conditions.
The contact current rating for this micro switch is 100mA.
This micro switch is compliant with RoHS standards for environmental safety.
It features a leaf lever actuator, which enables easy and precise operation.
This micro switch is manufactured in Japan.
This micro switch is suitable for applications in electrical, automation, industrial machinery, and automotive systems.
