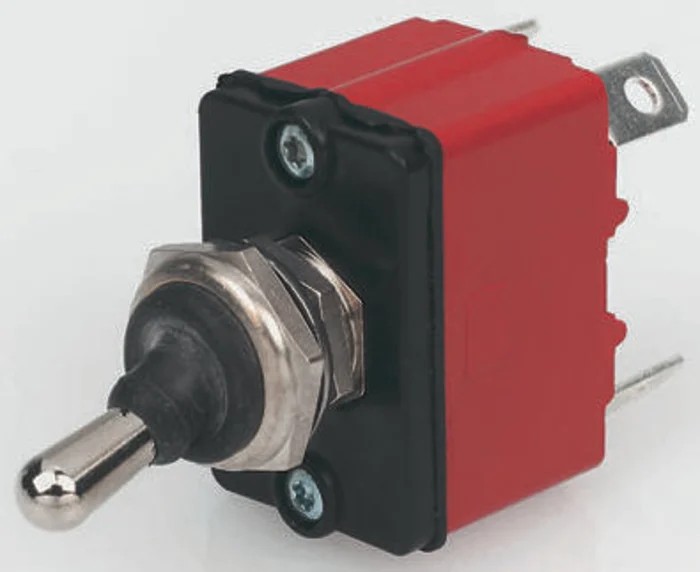

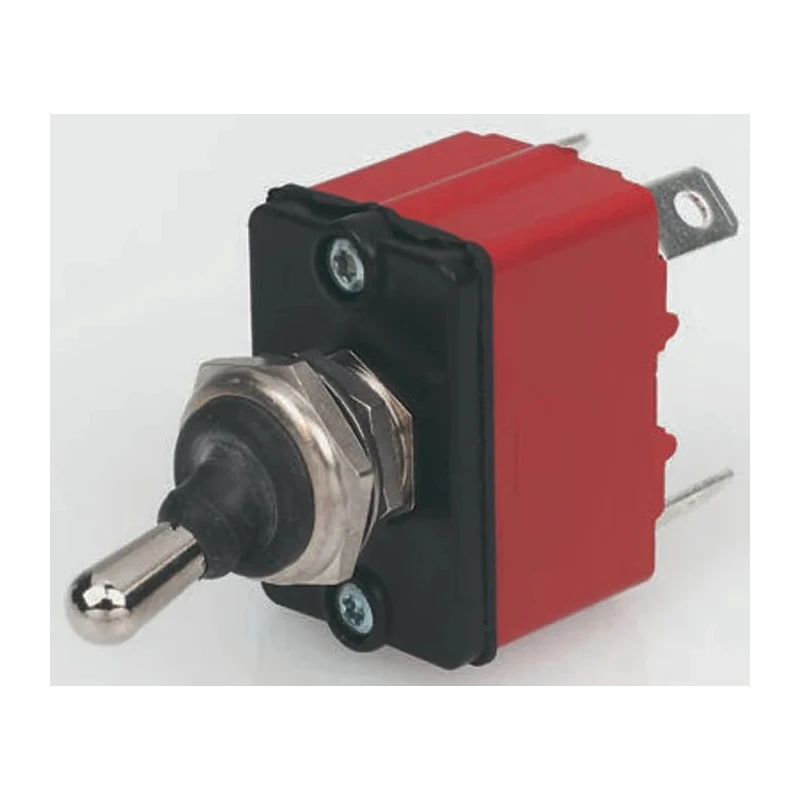

APEM Toggle Switch Panel Mount On-Off-On SPST Tab Terminal 24 V dc 28 V ac 3638NF/2
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 3638NF/2 |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 3600 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Tab |
| Standards/Approvals | NFVDE, CECC, CSA, UL, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 692-8440Brand: APEMManufacturers Part No.: 3638NF/2 |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 12A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 28V ac |
| Actuator Material | Brass |
Key Features
- Sealed toggle switch with IP67 rating for protection against dust and water.
- Operates with a SPST contact configuration and On-Off-On switch operation.
- Designed with brass actuator and phenolic case for durability.
- Panel cutout size of 12.2 mm with a 17.5 mm actuator length.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Mechanical life of 10,000 operations ensuring reliable performance.
- Features panel mount type with tab terminal connections for easy installation.
- Switch contact current rating of 12 A for robust electrical applications.
Product Description
APEM 3638NF/2 Toggle Switch is a high-quality panel mount switch designed for On-Off-On SPST applications with tab terminal connections. It is suitable for use in electrical, industrial automation, control systems, and other commercial environments requiring durable and reliable switching solutions. The switch supports 24 V dc and 28 V ac contact voltages and a contact current of 12 A. Its brass actuator and phenolic case provide enhanced mechanical resilience and longevity.
This toggle switch features a sealed design with IP67 protection rating, making it resistant to dust ingress and water exposure, ideal for challenging industrial settings. The operating temperature range from -40°C to 85°C ensures dependable performance across diverse environmental conditions. The mechanical life is rated for 10,000 operations, supporting long-term use.
The panel cutout size is 12.2 mm, accommodating a 17.5 mm actuator length for ergonomic toggle action. Compact physical dimensions (36 mm height, 12 mm width, and 14 mm length) enable installation in space-restricted panels. Terminal type is tab for straightforward connection to wiring harnesses.
IP67 rated sealed toggle switch suitable for external and harsh environments. Robust brass actuator construction with phenolic case for durability. SPST contact configuration with On-Off-On switch operation. Ideal for control panels, electrical equipment, and automation systems.
Supports 24 V dc and 28 V ac contact voltages with 12 A contact current. Temperature range from -40°C to 85°C for versatility in different climates. Mechanical life of 10,000 operations assures prolonged reliable switching.
Compact size with 12.2 mm panel cutout and efficient panel mount design. Compliant with NFVDE, CECC, CSA, UL, and RoHS standards.
The APEM 3638NF/2 is manufactured in France to high quality standards, making it suitable for industrial, laboratory, construction, and commercial electrical applications. It delivers consistent performance in stringent operating conditions. For more toggle switches, browse the Toggle Switch category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has an IP67 rating, providing protection against dust ingress and water exposure.
It has a contact current rating of 12 A, suitable for robust electrical applications.
This model supports a contact voltage of 24 V dc and 28 V ac.
The mechanical life is rated for 10,000 operations, ensuring reliable performance over time.
The switch has a height of 36 mm, a width of 12 mm, and a length of 14 mm.
The panel cutout size required for this switch is 12.2 mm.
The actuator length is 17.5 mm and is made of brass.
It operates within a temperature range of -40°C to 85°C.
This model features tab terminal connections for easy installation.
The switch complies with NFVDE, CECC, CSA, UL, and RoHS standards.
It has an SPST contact configuration with an On-Off-On switch operation.
This toggle switch is manufactured in France.
