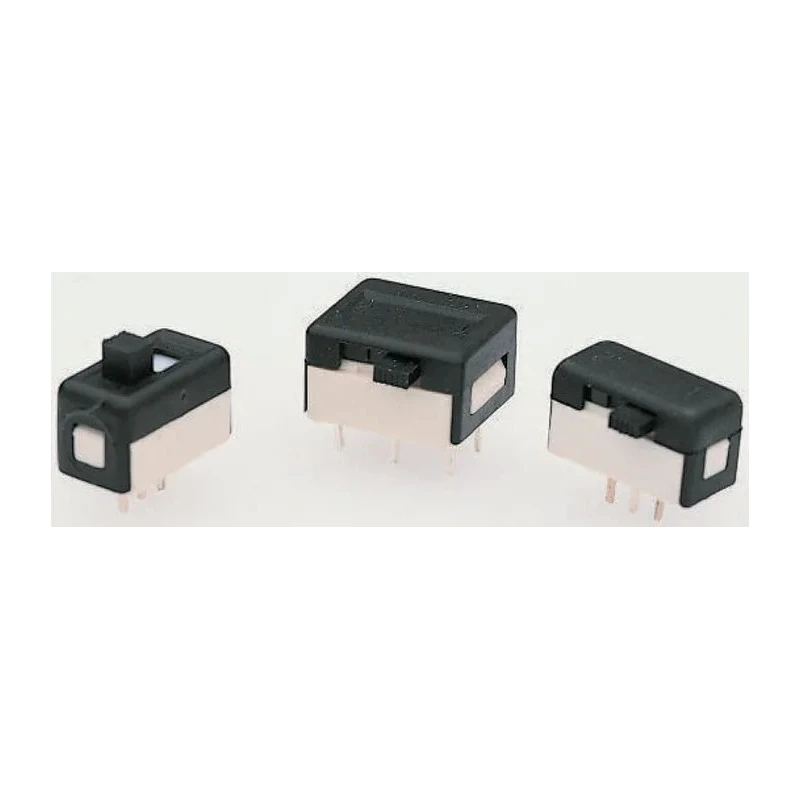

APEM PCB Slide Switch SPDT On-Off-On 100mA Fibreglass Reinforced Polyamide 25139NLDH

Free Delivery in India | Lowest Global Shipping Charges

APEM PCB Slide Switch SPDT On-Off-On 100mA Fibreglass Reinforced Polyamide 25139NLDH

Name: APEM PCB Slide Switch SPDT On-Off-On 100mA Fibreglass Reinforced Polyamide 25139NLDH
Brand: APEM
SKU: 351535
Price: 453.28 INR
Availability: InStock



Category PCB Slide Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Length	14.1mm
Model	25139NLDH
Depth	8.1mm
Width	7.5mm
Mount Type	PCB
Series	25000N
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-Off-On
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	692-6318PBrand: APEMManufacturers Part No.: 25139NLDH
Switch Operation	On-Off-On
Contact DC Voltage	30V dc
Switch Contact Current	100mA
Mechanical Life	20000Operations
Electrical Life	10000 cycles
Actuator Material	Fibreglass Reinforced Polyamide

Key Features

Single Pole Double Throw (SPDT) contact configuration provides versatile switching options.
Mounts directly on PCB with through-hole terminals for secure and easy installation.
Switch operation featuring an On-Off-On configuration ensures precise control states.
Constructed with a Fibreglass Reinforced Polyamide actuator and PBT case for high durability.
Supports a maximum switch contact current of 100mA suitable for low power applications.
Designed to withstand mechanical life of 20,000 operations ensuring long-term reliability.
Electrical life rated for 10,000 cycles maintaining consistent performance.
Operates safely within a wide temperature range from -40°C to 85°C.

Product Description

APEM 25139NLDH PCB Slide Switch is a miniature slide switch designed for electrical and electronic applications requiring precise switching control. Featuring a Single Pole Double Throw (SPDT) contact configuration with On-Off-On operation, it enables three distinct switch states ideal for complex circuit functions. The switch is engineered with a Fibreglass Reinforced Polyamide actuator and high-temperature PBT thermoplastic casing that provides excellent durability and resistance to mechanical stress.

Designed to mount directly on printed circuit boards (PCB) via through-hole terminals, this slide switch offers easy and reliable installation. It supports a switch contact current of 100mA and a DC voltage rating of 30V, making it suitable for low power signal switching especially in compact and sensitive electronic assemblies.

The switch is rated for a mechanical life of 20,000 operations and an electrical life of 10,000 cycles, assuring extended operational reliability in industrial and commercial applications. Its compact size, measuring 14.1mm in length, 7.5mm in width, and 8.1mm in depth, allows integration into space-limited designs.

Operating temperature ranges from -40°C to 85°C, enabling the switch to function reliably under varied environmental conditions, including industrial, automation, instrumentation, and control systems.

This component complies with UL standards and is manufactured in France, guaranteeing compliance with recognized safety and quality benchmarks. Single Pole Double Throw (SPDT) contact configuration with On-Off-On operation.

Fibreglass Reinforced Polyamide actuator for enhanced durability. Compact PCB mount through-hole terminals for secure installation. Supports 100mA switch contact current at 30V DC voltage. Mechanical life span of 20,000 operations and electrical life of 10,000 cycles.

Dimensions: 14.1mm length, 7.5mm width, 8.1mm depth. Wide operating temperature range from -40°C to 85°C. UL safety standard compliant. Manufactured in France ensuring high-quality standards.

Ideal for electronics design, industrial control panels, instrumentation, and automation systems requiring dependable miniature slide switches. Explore further components and related electrical switches at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum switch contact current for this model is 100mA, making it suitable for low power applications.

It operates safely within a temperature range from -40°C to 85°C, allowing reliable function under varied environmental conditions.

This model features a Single Pole Double Throw (SPDT) contact configuration with an On-Off-On operation, providing versatile switching options.

The dimensions of this switch are 14.1mm in length, 7.5mm in width, and 8.1mm in depth, making it compact for integration into space-limited designs.

It is designed to mount directly on printed circuit boards (PCB) using through-hole terminals for secure and easy installation.

The mechanical life of this switch is rated for 20,000 operations, ensuring long-term reliability in various applications.

The electrical life is rated for 10,000 cycles, maintaining consistent performance throughout its operational lifespan.

It features a Fibreglass Reinforced Polyamide actuator and a high-temperature PBT thermoplastic casing, providing durability and resistance to mechanical stress.

This model supports a DC voltage rating of 30V, suitable for low power signal switching applications.

Yes, it complies with UL standards, ensuring recognition of safety and quality benchmarks.

It is ideal for use in electronics design, industrial control panels, instrumentation, and automation systems requiring precise switching control.

This switch is manufactured in France, ensuring adherence to high-quality standards.
