APEM PCB Slide Switch DPDT Latching 100mA Fibreglass Reinforced Polyamide 25146NLDH

Free Delivery in India | Lowest Global Shipping Charges

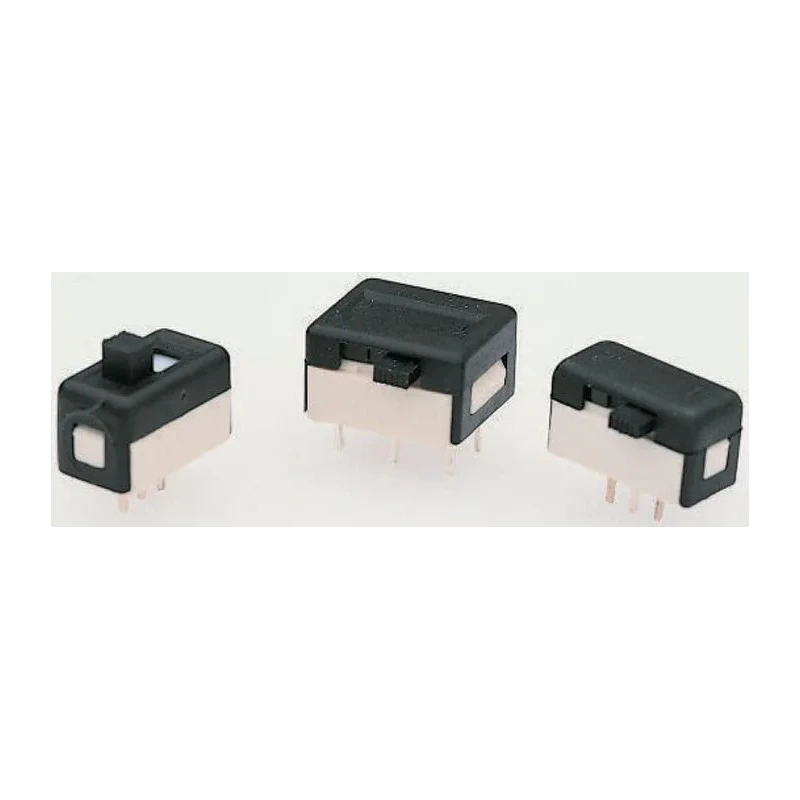

APEM PCB Slide Switch DPDT Latching 100mA Fibreglass Reinforced Polyamide 25146NLDH

Name: APEM PCB Slide Switch DPDT Latching 100mA Fibreglass Reinforced Polyamide 25146NLDH
Brand: APEM
SKU: 351532
Price: 673.31 INR
Availability: InStock



Category PCB Slide Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Length	14.1mm
Model	25146NLDH
Depth	8.1mm
Width	7.5mm
Mount Type	PCB
Series	25000N
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	692-6315PBrand: APEMManufacturers Part No.: 25146NLDH
Switch Operation	Latching
Contact DC Voltage	30V dc
Switch Contact Current	100mA
Mechanical Life	20000Operations
Electrical Life	10000 cycles
Actuator Material	Fibreglass Reinforced Polyamide

Key Features

DPDT contact configuration provides double-pole, double-throw switching.
Latching switch operation ensures maintained contact until manually changed.
Rated for a switch contact current of 100mA at 30V DC.
Constructed with a fibreglass reinforced polyamide actuator for enhanced durability.
Compact dimensions of 14.1mm length, 7.5mm width, and 8.1mm depth.
Mechanical life rated at 20,000 operations and electrical life at 10,000 cycles.
Maximum operating temperature of 85°C and minimum operating temperature of -40°C.
Mount type is PCB through hole for secure circuit board connection.

Product Description

APEM 25146NLDH PCB Slide Switch DPDT Latching 100mA with fibreglass reinforced polyamide actuator is engineered for precise electrical control in industrial and electronic applications. It supports a maximum contact current of 100mA and operates safely at a contact DC voltage of 30V.

The switch features a double-pole double-throw (DPDT) contact configuration with latching operation, providing stable and reliable switching states. Designed for PCB mounting with through-hole terminals, it ensures secure and easy integration into printed circuit boards.

This switch is constructed from robust materials, including a fibreglass reinforced polyamide actuator and a PBT high-temperature thermoplastic case, which enhance mechanical strength and durability. It has a compact form factor with dimensions of 14.1mm (length), 7.5mm (width), and 8.1mm (depth), making it suitable for space-constrained installations.

Its electrical life spans 10,000 cycles, and the mechanical life rating is 20,000 operations, suitable for long-term use in demanding environments. Operating temperature range from -40°C to 85°C allows deployment in varied climatic conditions.

The product meets UL standards, ensuring compliance with safety and quality requirements. This miniature slide switch belongs to the 25000N series, known for high reliability and sealing capabilities that prevent flux ingress during soldering processes.

DPDT contact configuration provides versatile switching. Latching operation maintains contact state until switched. Rated for 100mA contact current and 30V DC voltage. Fibreglass reinforced polyamide actuator ensures durability.

Compact dimensions fit small electronic assemblies. Mechanical life of 20,000 operations and electrical life of 10,000 cycles. Wide operating temperature range from -40°C to 85°C. UL certified for safety and quality assurance.

Sealed terminals prevent flux ingress during soldering.

This APEM PCB Slide Switch is widely used in electronics manufacturing, automation systems, instrumentation, control panels, and other industrial equipment requiring reliable manual switching mechanisms.
