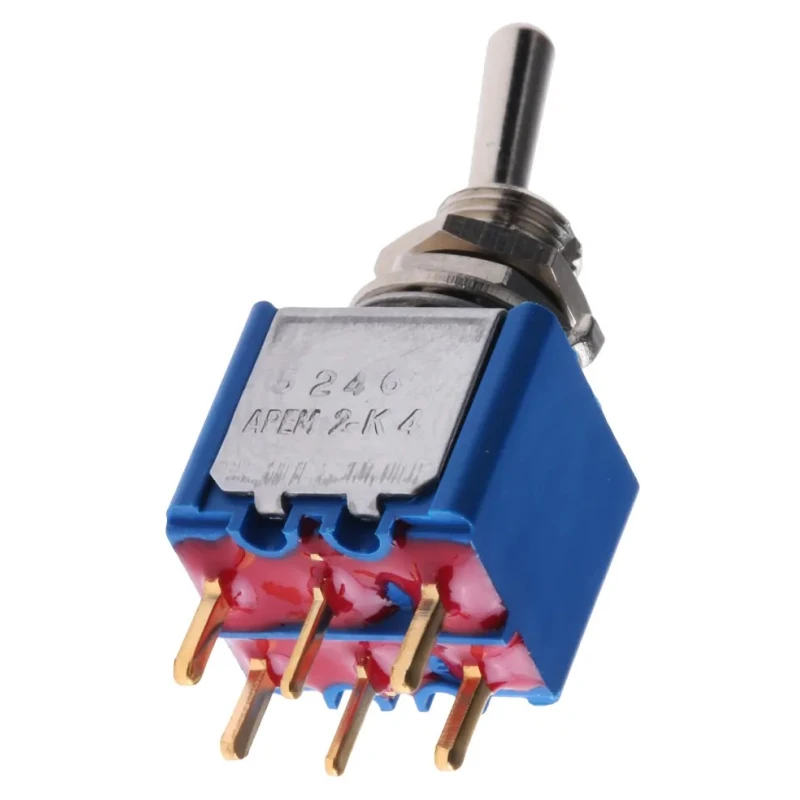

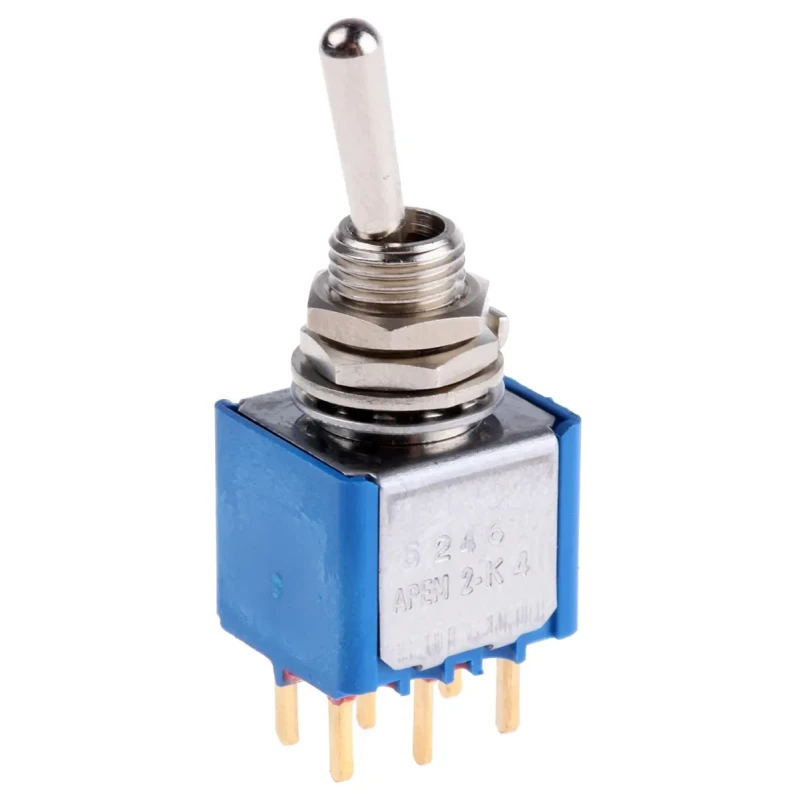

APEM Toggle Switch PCB Mount On-On DPST 24 V DC 250 V AC Nickel Plated Brass Actuator 5246CDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5246CDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 692-5318Brand: APEMManufacturers Part No.: 5246CDB |
| Switch Operation | On-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- This toggle switch is designed for PCB mounting with a DPST contact configuration.
- Switch operation is On-On providing double pole switching.
- It supports a contact current of 400mA for precise control.
- The actuator length measures 10.5 mm and is made of nickel-plated brass for durability.
- Panel cutout size required is 6.5 mm, compatible with various designs.
- Operating temperature range from -40°C to 85°C ensures broad environmental suitability.
- Switch terminals are PC type, facilitating easy PCB integration.
- Mechanical life is rated at 100,000 operations, ensuring long service life.
Product Description
APEM 5246CDB Toggle Switch is a high-quality PCB mount switch designed for industrial and electrical applications requiring reliable double pole switching. It features an On-On DPST contact configuration capable of handling 24 V DC and 250 V AC voltages with a maximum contact current of 400 mA. The actuator is made of nickel-plated brass, providing robust mechanical performance.
This switch has a panel cutout size of 6.5 mm and compact overall dimensions of 36 mm height, 14 mm length, and 12 mm width, enabling integration into diverse electronic assemblies and control panels. It is designed to withstand operating temperatures ranging from -40°C to 85°C, making it suitable for harsh industrial environments.
The mechanical life of 100,000 operations ensures extended functional reliability, while the PC terminal type allows for secure PCB mounting. Conformance to CECC, CSA, NFVDE, RoHS, and UL certifications guarantees the switch meets international safety and quality standards.
Typical use cases include electrical automation, industrial machinery control, HVAC systems, and instrumentation panels where reliable switching is critical. The nickel plated brass actuator enhances durability and user tactile feedback.
This toggle switch is designed for PCB mounting with a DPST contact configuration. Switch operation is On-On providing double pole switching. It supports a contact current of 400mA for precise control. The actuator length measures 10.5 mm and is made of nickel-plated brass for durability.
Panel cutout size required is 6.5 mm, compatible with various designs. Operating temperature range from -40°C to 85°C ensures broad environmental suitability. Switch terminals are PC type, facilitating easy PCB integration.
Mechanical life is rated at 100,000 operations, ensuring long service life. The switch complies with CECC, CSA, NFVDE, RoHS, and UL standards for safety and quality. Compact dimensions of 36 mm height, 14 mm length, and 12 mm width suit installation constraints.
Explore more APEM Toggle Switches and electrical components in EnvMart's Electronics & Electricals category for your industrial automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this toggle switch is 400 mA.
This model supports a contact voltage of 24 V DC and 250 V AC.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
The required panel cutout size for this toggle switch is 6.5 mm.
The actuator length is 10.5 mm and it is made of nickel-plated brass.
The mechanical life of this toggle switch is rated at 100,000 operations.
This switch features PC type terminals for easy PCB integration.
The overall dimensions are 36 mm in height, 14 mm in length, and 12 mm in width.
It complies with CECC, CSA, NFVDE, RoHS, and UL standards.
The contact configuration is DPST (Double Pole Single Throw).
This model provides an On-On switch operation for double pole switching.
Typical applications include electrical automation, industrial machinery control, HVAC systems, and instrumentation panels.
