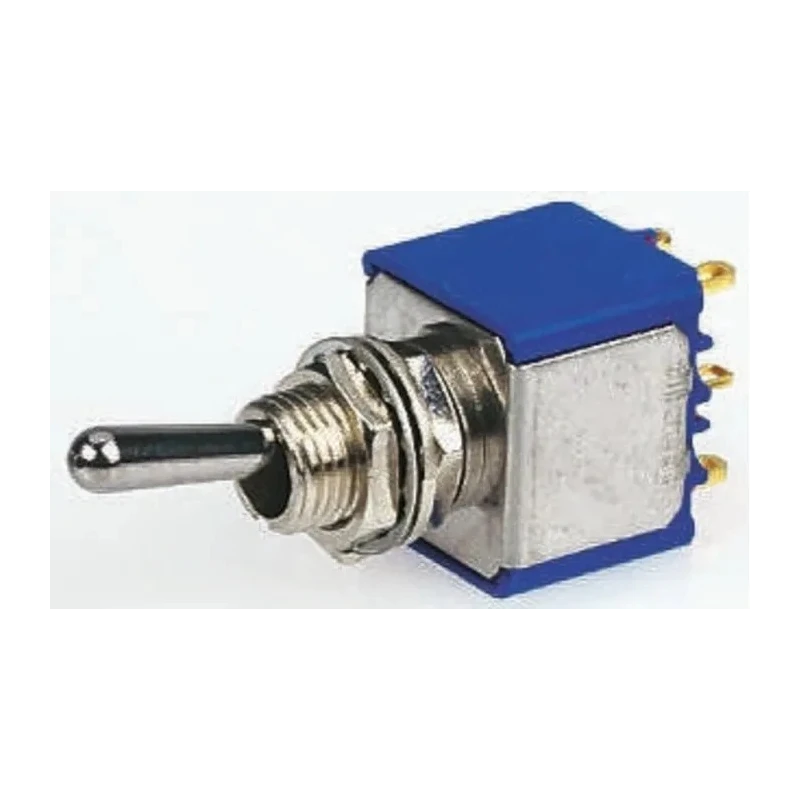

APEM Toggle Switch Panel Mount On-Off-On DPST Solder Lug Terminal 24 V dc 250 V ac 5648CDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5648CDB |
| Width | 12mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 692-5198Brand: APEMManufacturers Part No.: 5648CDB |
| Switch Operation | On-Off-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- This panel mount toggle switch features a DPST contact configuration for dual pole switching.
- The switch operation is On-Off-On with a mechanical life of 100,000 operations.
- It supports a switch contact current of 400 mA, suitable for control circuits.
- The actuator is brass, measuring 10.5 mm in length, with a panel cutout size of 6.5 mm.
- Operating temperature ranges from -40°C to a maximum of 85°C.
- It has CECC, CSA, NFVDE, RoHS, and UL certification standards compliance.
- The switch uses solder lug terminals for reliable electrical connection.
- Manufactured in France ensuring high-quality standards and durability.
Product Description
APEM 5648CDB is a robust Toggle Switch designed for panel mounting with an On-Off-On operation and DPST (Double Pole Single Throw) contact configuration. It is equipped with solder lug terminals suitable for secure and reliable connections. Rated for 24 V dc and 250 V ac, this switch is ideal for a wide range of electrical, automation, and control applications.
The actuator is made of brass and measures 10.5 mm in length, fitting into a 6.5 mm panel cutout, providing durable mechanical performance. The switch body is made from Diallyl Phthalate, combining durability with electrical insulation. The operating temperature range from -40°C to 85°C makes it suitable for harsh environmental conditions.
This toggle switch meets multiple international standards including CECC, CSA, NFVDE, RoHS, and UL, confirming its compliance and safety. The mechanical life is rated at 100,000 operations, ensuring long-term reliability in industrial usage.
Compactly sized at 36 mm height, 14 mm length, and 12 mm width, the switch is part of the respected 5000 series from APEM, known for quality and performance. The product originates from France, emphasizing superior manufacturing standards.
This toggle switch features a DPST contact configuration for double pole switching. Switch operation sequence: On-Off-On with momentary (On) position noted. Rated for 400 mA switch contact current to support low-power control circuits.
Brass actuator and diallyl phthalate case provide durability and insulation. Panel cutout size is 6.5 mm, facilitating easy installation. Suitable for industrial automation and electrical equipment panel control. Complies with UL, CSA, CECC and RoHS certifications for quality assurance.
Designed for harsh working environments with a wide temperature rating (-40° to 85°C). Supports 24 V dc and 250 V ac contact voltages.
APEM toggle switches are preferred in industrial automation, manufacturing, and control systems requiring reliable and precise electrical switching mechanisms. This product combines mechanical robustness with high electrical performance to deliver consistent functionality. Explore more Toggle Switches and panel mount switches for various industrial needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPST (Double Pole Single Throw) contact configuration, allowing for dual pole switching.
It is rated for 24 V dc and 250 V ac, making it suitable for various electrical applications.
The maximum operating temperature for this switch is 85°C, allowing it to function in high-temperature environments.
The mechanical life of this toggle switch is rated at 100,000 operations, ensuring long-term reliability.
The required panel cutout size for installation is 6.5 mm.
The switch contact current rating is 400 mA, suitable for low-power control circuits.
The actuator is made of brass, providing durability and reliable performance.
The dimensions of this model are 36 mm in height, 14 mm in length, and 12 mm in width.
This switch complies with several certifications, including CECC, CSA, NFVDE, RoHS, and UL, ensuring safety and quality standards.
It uses solder lug terminals, which provide secure and reliable electrical connections.
The minimum operating temperature for this toggle switch is -40°C, making it suitable for harsh environmental conditions.
The switch operation sequence is On-Off-On, with a momentary (On) position noted.
