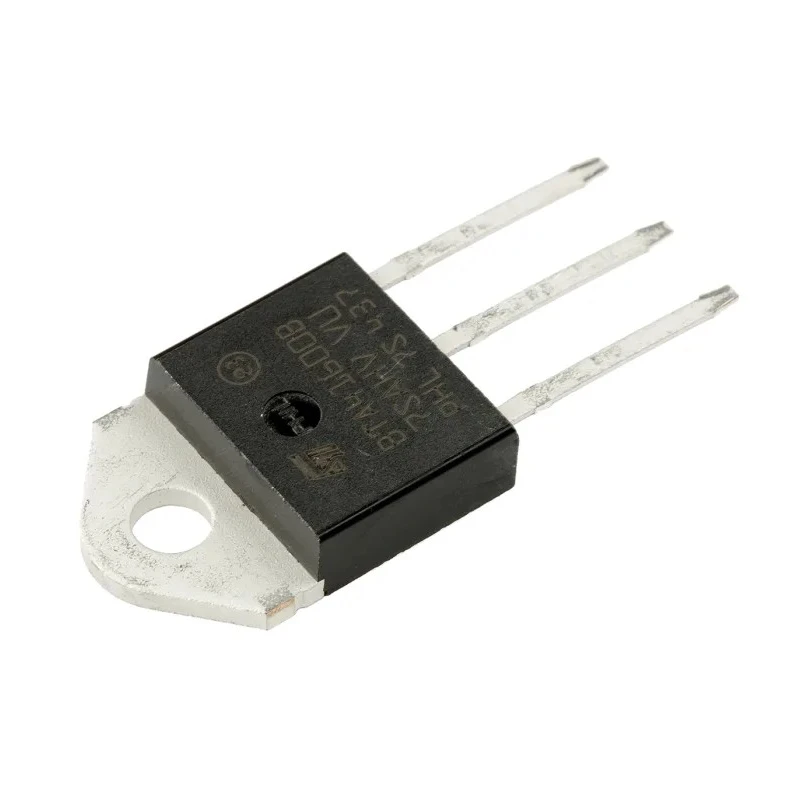

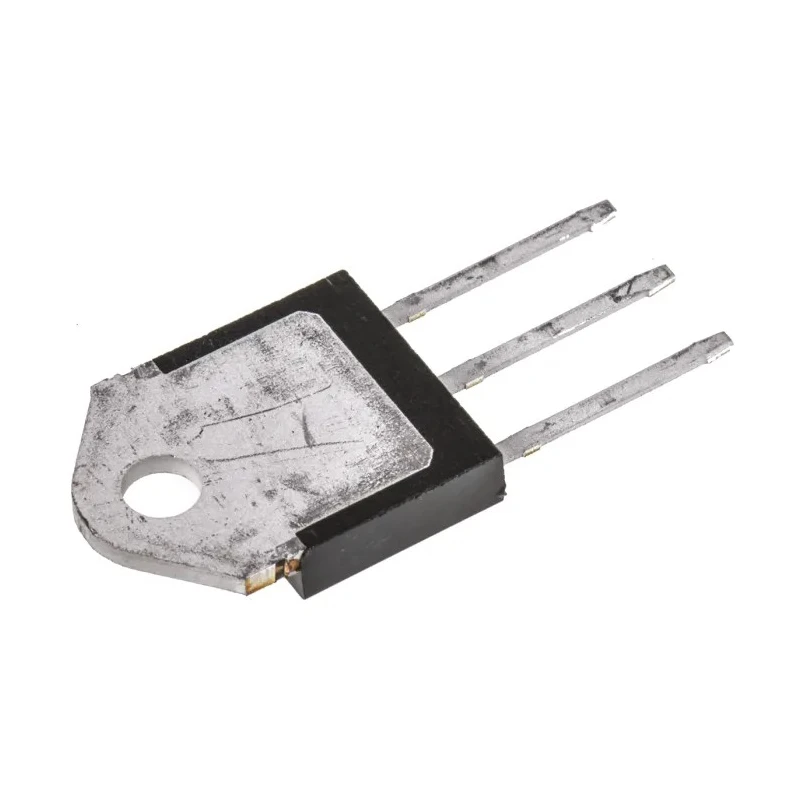

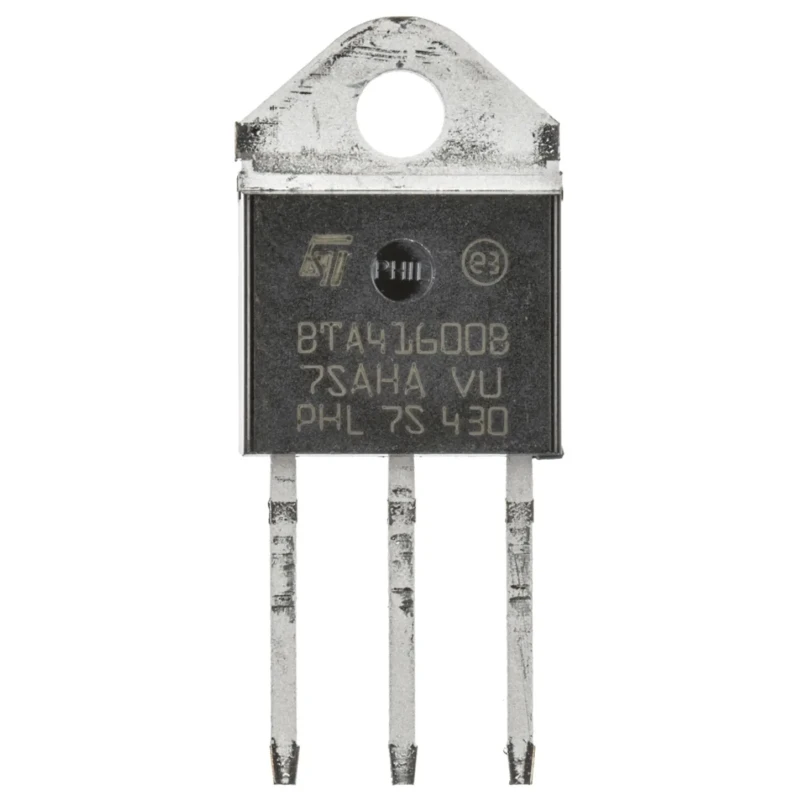

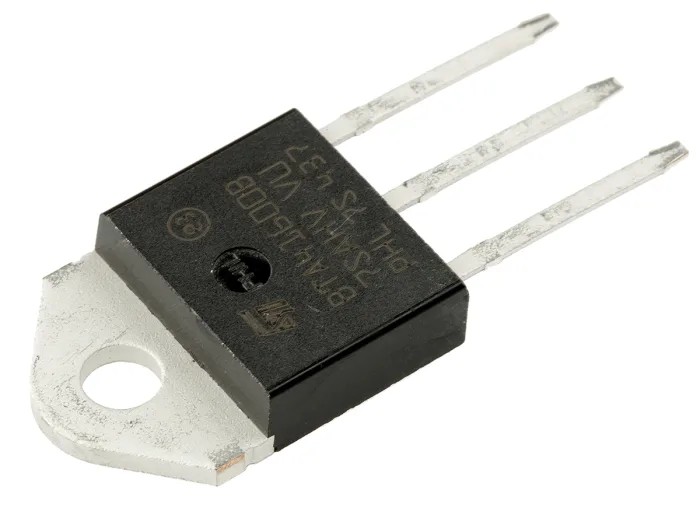

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA41-600BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 12.85mm |
| Length | 15.5mm |
| Model | BTA41-600BRG |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 40A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 420A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 80mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current is 40 A ensuring robust conduction capacity.
- Surge current rating of 420 A supports transient overloads without damage.
- Single configuration device designed for switching applications.
- Operating temperature ranges from -40°C to 125°C for versatile environments.
- Compact dimensions with length 15.5 mm, width 4.6 mm, and height 12.85 mm.
- Maximum gate trigger current of 100 mA optimized for reliable triggering.
- Peak gate power dissipation is 1 W ensuring thermal stability.
- No automotive certification; suitable for general industrial applications.
Product Description
STMicroelectronics BTA41-600BRG is a through hole mounted TRIAC designed for efficient AC switching and control, supporting a maximum repetitive peak reverse voltage of 600 V and a rated average on-state current of 40 A. It features a gate trigger voltage of 1.3 V with a maximum trigger current of 100 mA, making it suitable for reliable triggering in industrial electronic circuits.
This TRIAC operates within a temperature range of -40°C to 125°C and dissipates peak gate power up to 1 W, providing stable performance under demanding thermal conditions. The compact dimensions (15.5 mm length, 4.6 mm width, 12.85 mm height) and a 3-pin configuration facilitate integration in various control applications.
The surge current rating of 420 A allows the device to withstand short transient surges, enhancing durability in industrial and commercial electronics. The package type is TOP with a through hole mounting style, commonly used for robust PCB installations in power and control circuits.
This component is intended for applications including industrial automation, motor controls, lighting regulation, and other AC load switching tasks where precise and reliable AC power control is required.
Rated average on-state current is 40 A ensuring robust conduction capacity. Surge current rating of 420 A supports transient overloads without damage. Single configuration device designed for switching applications. Operating temperature ranges from -40°C to 125°C for versatile environments.
Compact dimensions with length 15.5 mm, width 4.6 mm, and height 12.85 mm. Maximum gate trigger current of 100 mA optimized for reliable triggering. Peak gate power dissipation is 1 W ensuring thermal stability. No automotive certification; suitable for general industrial applications.
Through hole mount type with TOP package style for easy PCB integration. Repetitive peak reverse voltage is 600 V for high voltage operation. Explore more industrial semiconductors like TRIACs, thyristors, and other power management devices at EnvMart for your electronic and electrical design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 40 A, ensuring robust conduction capacity.
The maximum repetitive peak reverse voltage of the BTA41-600BRG is 600 V, suitable for high voltage operation.
This TRIAC has a surge current rating of 420 A, allowing it to support transient overloads without damage.
The dimensions of this model are 15.5 mm in length, 4.6 mm in width, and 12.85 mm in height.
The maximum gate trigger current for the BTA41-600BRG is 100 mA, optimized for reliable triggering.
This model operates within a temperature range of -40°C to 125°C, making it versatile for various environments.
The BTA41-600BRG uses a through hole mounting style, which is common for robust PCB installations.
The peak gate power dissipation for the BTA41-600BRG is 1 W, ensuring thermal stability during operation.
This TRIAC is designed as a single configuration device, suitable for various AC switching applications.
It is intended for applications including industrial automation, motor controls, lighting regulation, and AC load switching tasks.
The maximum holding current for this model is 80 mA, which is important for maintaining the on-state of the TRIAC.
The peak on-state voltage for this TRIAC is 1.55 V, which is relevant for its operation in circuits.
