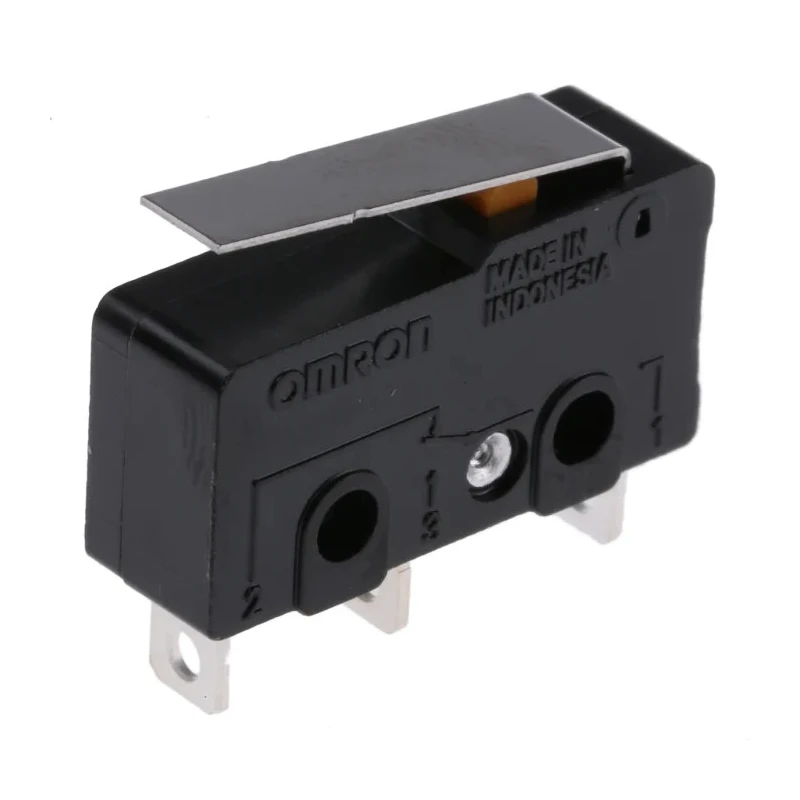

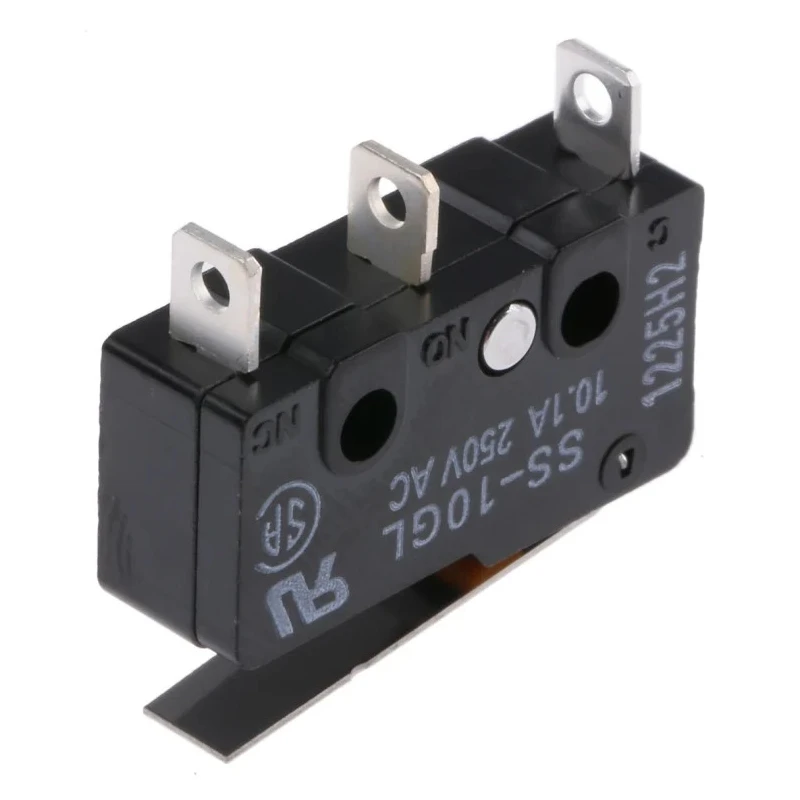

Omron Subminiature Hinge Lever Micro Switch Solder Terminal 10.1A, 250V AC, SPDT, IP40 SS-10GL

Omron SS-10GL is a subminiature hinge lever micro switch designed for industrial and commercial electrical applications requiring precise switching control. It features solder terminal type connections and a SPDT contact configuration, allowing versatile usage in electrical circuits with an AC voltage rating of 250 volts and a contact current rating of 10.1 amperes.

The hinge lever actuator enables reliable actuation with a minimal operating force of 0.49 newtons. This switch is suitable for environments with IP40 ingress protection, providing protection against solid objects greater than one millimeter while not rated for water resistance. It operates efficiently within a temperature range from -25 to 85 degrees Celsius, suitable for varied ambient conditions.

The subminiature size of the SS-10GL supports integration into compact assemblies and machinery controls. It boasts a mechanical lifespan of up to 10 million operations, assuring dependable long-term performance. This model conforms to RoHS directives, reflecting compliance with environmental safety standards.

Common industrial and laboratory applications include automation systems, electrical control panels, HVAC equipment, and manufacturing machinery where precise switch actuation is critical. Its robust construction and reliable switching characteristics make it ideal for use in electrical devices requiring frequent actuation with consistent reliability.

The switch operates with a hinge lever actuator allowing precise mechanical control. Solder terminal connections provide secure and durable electrical contact points. Rated for a contact current of 10.1 amperes at 250 volts AC ensuring robust switching capability.

SPDT contact configuration offers versatile switching options in circuits requiring single pole double throw functionality. IP40 ingress protection ratings make it suitable for environments with light dust exposure. Low operating force of 0.49N grants sensitive and reliable switch activation.

Functional temperature range from -25°C to 85°C supports wide ambient conditions. Compact subminiature design fits in space-constrained equipment layouts. 10 million mechanical actuation cycles ensure long service life suitable for industrial usage.

Compliance with RoHS regulations ensures environmentally responsible manufacturing.

For industrial automation, electrical equipment manufacturing, and laboratory instrumentation, the Omron SS-10GL Micro Switch offers a robust, efficient, and long-lasting solution. Browse more high-quality switches in our Electronics & Electricals, Switches & Sockets category at EnvMart.
