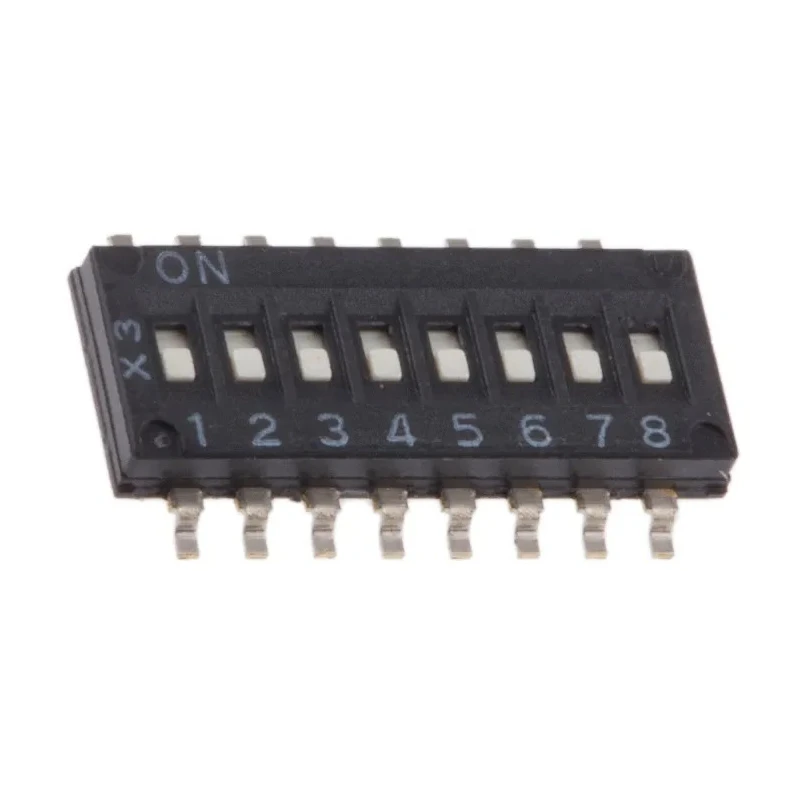

Omron Ultra Low Profile Half Pitch Surface Mount Slide Rotary Coded DIP Switch A6H-8101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | A6H-8101 |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000 operations |
| Omron Slide Rotary Coded DIP Switch Surface MountBrand | Omron |
Key Features
- This switch features a slide actuator type that allows precise rotary encoding.
- It offers a contact resistance of 200 milliohms ensuring reliable electrical connections.
- The insulation resistance is rated at 100 megaohms minimum at 250V DC.
- Mechanical life of the switch is rated at 1000 operations, providing durability for industrial use.
- This half pitch design reduces mounting space by approximately 63%, suitable for compact electronic devices.
- The low profile height is 1.55 mm, contributing to slim PCB assembly designs.
- The switch is RoHS compliant, ensuring adherence to environmental standards.
- Available with or without tape seal options for surface mounting flexibility.
Product Description
Omron A6H-8101 Slide Rotary Coded DIP Switch is a precision engineered component featuring ultra low profile half pitch design suitable for surface mount technology applications in electronics and electrical engineering.
This surface mount switch significantly reduces mounting footprint by 63% due to its half pitch dimension, with an extremely low profile height of 1.55 mm. It is designed for slide actuator operation, ideal for rotary encoding and DIP switch applications.
Key electrical specs include a contact resistance of 200 mΩ and an insulation resistance of 100 MΩ minimum at 250 V DC, which ensures dependable signal integrity and minimal power loss. The switch offers a mechanical life of 1000 operations, making it fit for industrial and commercial automation systems.
Available in versions with or without tape seal for versatile PCB assembly. The product complies with RoHS directives, ensuring environmentally safe disposal and usage.
This Rotary Coded DIP Switch is used extensively in industrial automation, electrical control panels, manufacturing equipment, and other embedded systems requiring reliable and space-efficient switching solutions.
This slide type rotary coded DIP switch provides precise switching control for electrical circuits. Its half pitch and low profile design facilitates high-density PCB layouts and compact device designs. The component supports surface mount assembly techniques common in modern electronics manufacturing.
It reduces installation space, helping optimize overall system size without sacrificing performance. The switch’s construction meets stringent RoHS standards, supporting green manufacturing initiatives. Explore a wide variety of Rotary Coded DIP Switches and other electrical switches at EnvMart to find the perfect fit for your industrial or laboratory automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the A6H-8101 switch is 200 milliohms, ensuring reliable electrical connections.
The insulation resistance is rated at a minimum of 100 megaohms at 250V DC for the A6H-8101 switch.
This switch has a mechanical life rated at 1000 operations, making it suitable for industrial applications.
The half pitch design reduces the mounting space by approximately 63%, which is beneficial for compact electronic devices and high-density PCB layouts.
The A6H-8101 features a slide actuator type, which allows for precise rotary encoding.
Yes, the A6H-8101 switch is RoHS compliant, adhering to environmental standards for safe disposal and usage.
The A6H-8101 switch has a low profile height of 1.55 mm, contributing to slim PCB assembly designs.
This model is used extensively in industrial automation, electrical control panels, manufacturing equipment, and other embedded systems requiring reliable switching solutions.
Yes, the A6H-8101 is available in versions with or without tape seal options for surface mounting flexibility.
The A6H-8101 switch supports surface mount assembly techniques, which are common in modern electronics manufacturing.
The low profile design of 1.55 mm facilitates high-density PCB layouts and compact device designs, optimizing overall system size without sacrificing performance.
The A6H-8101 switch is manufactured in India.
