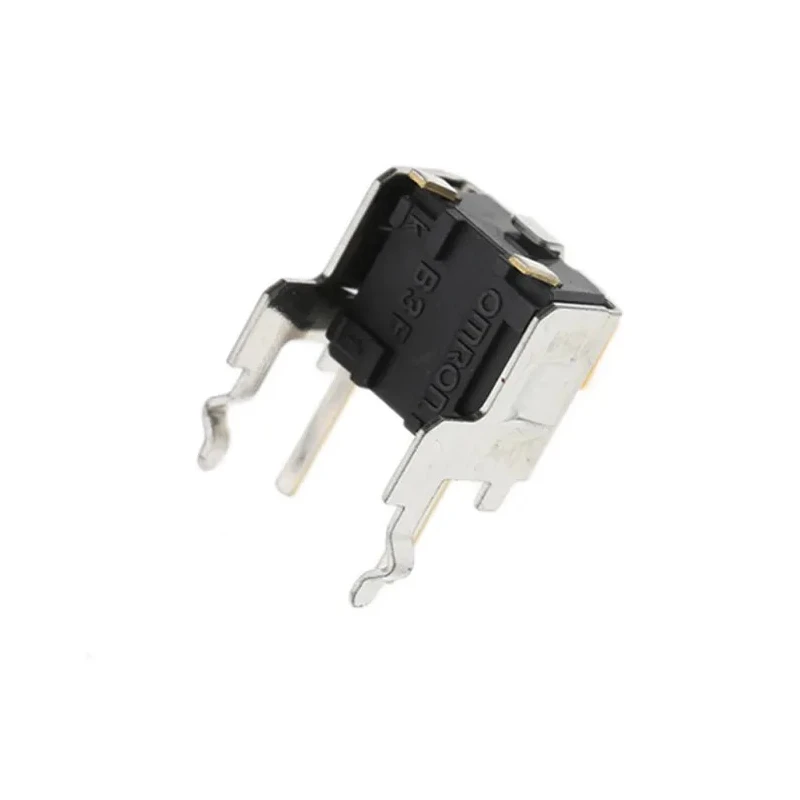

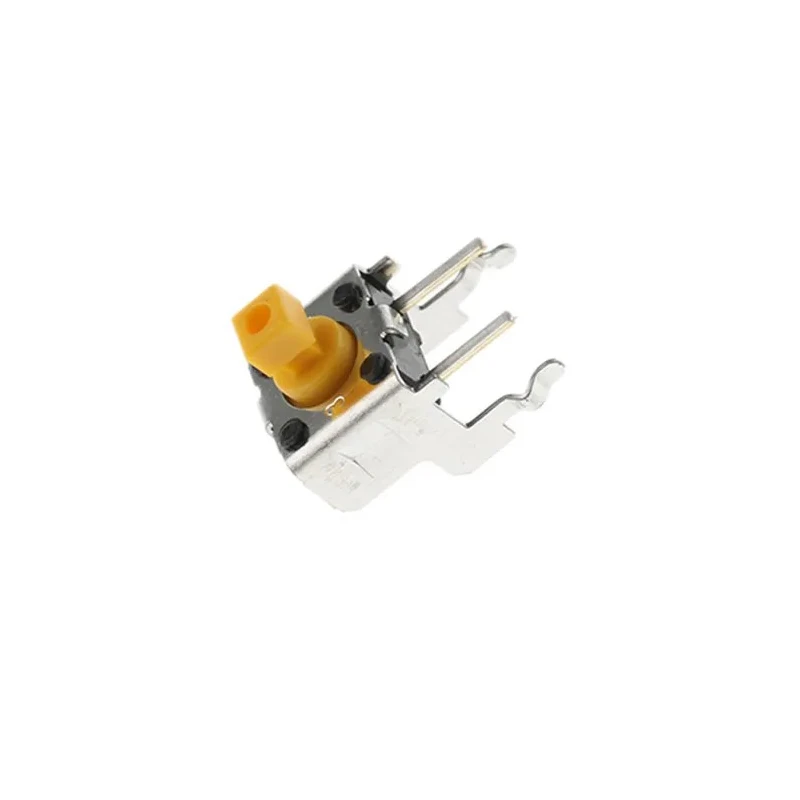

Omron Tactile Switch Yellow Plunger SPST-NO 50mA 24V dc Through Hole B3F-3152
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 6.15mm |
| Length | 6mm |
| Model | B3F-3152 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Actuator Colour | Yellow |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 1.47N |
| Mechanical Life | 300000Operations |
| Aratas Orange Tactile Switch Plunger, SPST 50mA 24 V dc, Through HoleBrand | Omron |
Key Features
- Compact 6mm x 6mm dimensions with 6.15mm height for easy PCB integration.
- Operating temperature range from -25°C to 70°C for diverse environments.
- Plunger style actuator with yellow color for clear visual identification.
- SPST-NO contact configuration supports single pole single throw normally open operation.
- Switch contact current rating of 50mA at 24V dc ensures low power switching.
- Mount type is through hole providing secure and reliable PCB connection.
- Operating force of 1.47N gives tactile feedback for reliable actuation.
- Mechanical life rated at 300,000 operations for long service life.
Product Description
Omron B3F-3152 tactile switch with a yellow plunger actuator is designed for low current DC applications, rated at 50mA and 24 V dc. This switch features a compact footprint with a 6mm by 6mm body size and 6.15mm height, suitable for through hole mounting on printed circuit boards.
The switch provides a reliable SPST-NO (single pole single throw normally open) contact configuration, ideal for keyboard and keypad switch applications in industrial automation, electrical controls, and consumer electronics.
Operable within a temperature range from -25°C up to 70°C, this tactile switch offers dependable performance in varied environments. The plunger-style actuator with a yellow color enhances visual indication and ease of use. The device requires an operating force of 1.47N, providing a tactile response during actuation.
Durability is ensured with a mechanical life capable of 300,000 operations, and the product complies with RoHS standards, confirming environmentally safe manufacturing practices. Although it features an IP00 ingress protection rating, this switch is robust for enclosed or protected equipment designs.
Compact 6mm x 6mm dimension and plunger style actuator provide easy mounting and reliable operation. SPST-NO contact configuration suitable for signal switching in control panels and instrumentation. Operating force of 1.47N ensures good tactile feedback.
Rated for 50mA at 24V dc supporting low power circuit applications. Mechanical life of 300,000 actuations for extended durability. Operating temperature from -25°C to 70°C supports various industrial environments. Yellow actuator color allows quick identification in assemblies.
Through hole mount offers secure connection on PCB assemblies. RoHS compliant ensuring lead-free and environmentally friendly construction.
This Omron tactile switch is manufactured in Japan, reflecting high quality and reliability standards. Ideal for industrial automation systems, electrical control boards, instrumentation, and consumer electronic devices requiring precise tactile input switches.
Explore more Tactile Switch solutions and electrical components at EnvMart to complement your automation and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this switch is SPST-NO, which stands for single pole single throw normally open.
The operating temperature range for the B3F-3152 is from -25°C to 70°C, making it suitable for various environments.
This model has a compact dimension of 6mm x 6mm and a height of 6.15mm, allowing for easy PCB integration.
The mechanical life of the Omron B3F-3152 is rated at 300,000 operations, ensuring long service life.
The operating force required for actuation of this switch is 1.47N, providing tactile feedback during use.
The switch is rated for a contact current of 50mA at a voltage of 24V dc, suitable for low power switching applications.
This tactile switch features a through hole mount type, providing a secure connection on printed circuit boards.
The actuator style is plunger, and it features a yellow color for clear visual identification.
Yes, this model is RoHS compliant, indicating that it adheres to environmentally safe manufacturing practices.
The B3F-3152 has an IP00 ingress protection rating, meaning it is not protected against water or dust ingress.
This tactile switch is manufactured in Japan, reflecting high quality and reliability standards.
This tactile switch is suitable for keyboard and keypad applications in industrial automation, electrical controls, and consumer electronics.
