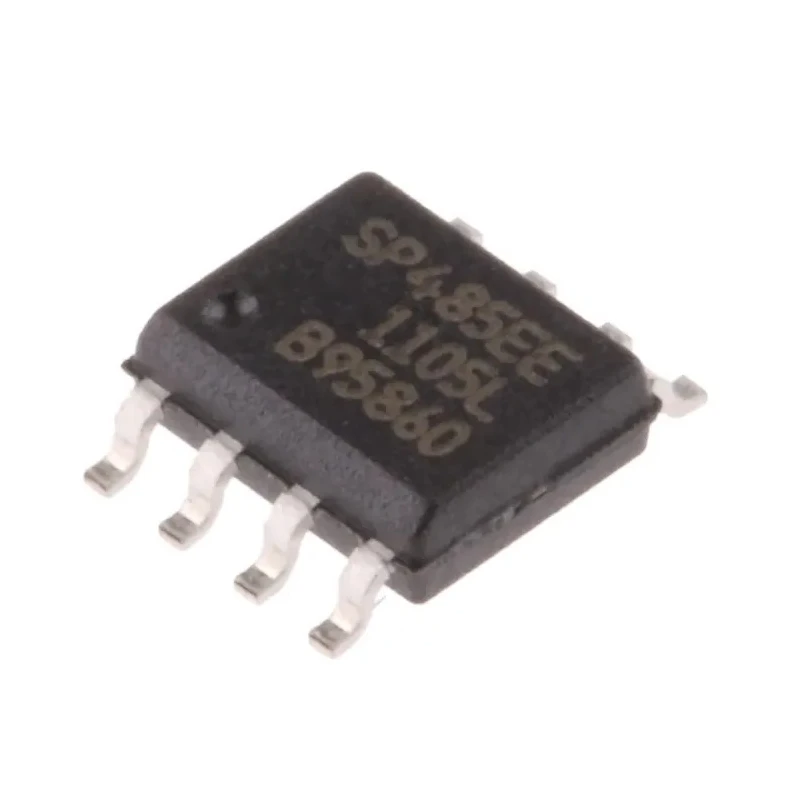

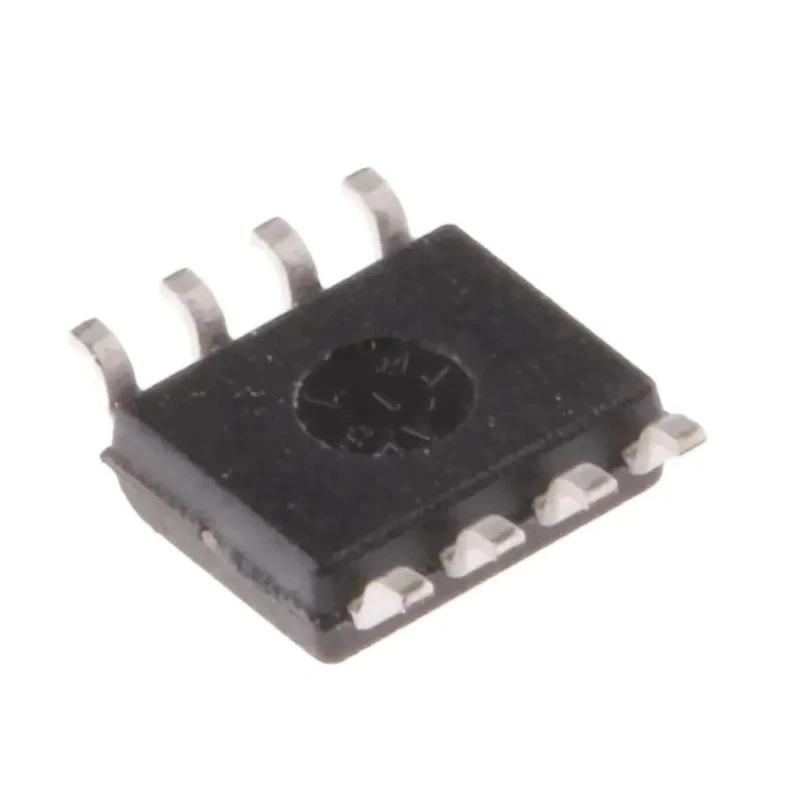

MaxLinear SP485EEN-L Line Transceiver Differential 8-Pin SOIC BiCMOS Logic Family 4.75-5.25V New SP485EEN-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | SP485EEN-L |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SP485E |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | BiCMOS |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum Propagation Delay Time @ CL | 60ns |
| Supply Current | 900μA |
Key Features
- Designed for robust RS-485 and RS-422 communication applications.
- Provides reliable differential signal transmission and reception.
- Compact 8-pin SOIC surface-mount package ensures easy PCB integration.
- Wide operating temperature range from -40°C to 85°C for versatile environments.
- Low supply current of 900μA optimizes power consumption.
- Maximum propagation delay time of 60ns for fast signal processing.
- Exhibits a single channel for line transceiver operation.
Product Description
MaxLinear SP485EEN-L is a precision line transceiver IC designed with BiCMOS technology for differential input and output signals. Housed in an 8-pin SOIC surface-mount package, this device operates efficiently between 4.75V and 5.25V supply voltages, making it suitable for a wide range of electronic communication applications including RS-485 and RS-422 interfaces.
The transceiver offers a maximum propagation delay time of 60 nanoseconds, enabling swift and reliable data communication over long cable lengths. It supports a single communication channel, optimized for use in industrial control, automation, and instrumentation systems.
With its wide temperature tolerance from -40°C up to 85°C, the SP485EEN-L is suitable for harsh and varied environmental conditions often encountered in industrial, commercial, and automotive electronics.
The device is designed for surface mounting, packaged in an 8-pin SOIC form factor with compact dimensions - 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height - facilitating integration on densely packed PCBs.
Its low supply current of 900 microamperes ensures energy-efficient operation, which is critical in power-sensitive applications. The SP485EEN-L supports differential line signaling, providing enhanced noise immunity and reliable data integrity in demanding communication environments.
Designed for robust RS-485 and RS-422 differential communication applications. Compact 8-pin SOIC surface-mount package for efficient board space usage. Wide ambient operating temperature range with excellent thermal stability.
Low power consumption with 900μA typical supply current. Fast switching with 60ns maximum propagation delay. BiCMOS technology combining bipolar and CMOS transistor benefits. Single channel transceiver supports reliable data transmission.
Ideal for industrial automation, control systems, building security, and automotive data communication. This line interface IC falls under the series SP485E and does not hold specific automotive or industry certifications.
Explore more line transceiver ICs and semiconductor components on EnvMart for your electronic design and system integration needs.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently between 4.75V and 5.25V supply voltages.
The maximum propagation delay time is 60 nanoseconds, enabling fast signal processing.
It has a wide operating temperature range from -40°C to 85°C, suitable for various environments.
This unit is housed in an 8-pin SOIC surface-mount package, facilitating easy PCB integration.
It supports a single communication channel for line transceiver operation.
The typical supply current is 900 microamperes, optimizing power consumption.
It utilizes BiCMOS technology, combining the benefits of bipolar and CMOS transistors.
The dimensions are 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height.
It is designed for robust RS-485 and RS-422 communication applications, including industrial control and automation.
This line transceiver provides differential output, enhancing noise immunity and data integrity.
Yes, it is suitable for harsh environments due to its wide temperature tolerance from -40°C to 85°C.
The input type is differential, which is essential for reliable communication in noisy environments.
