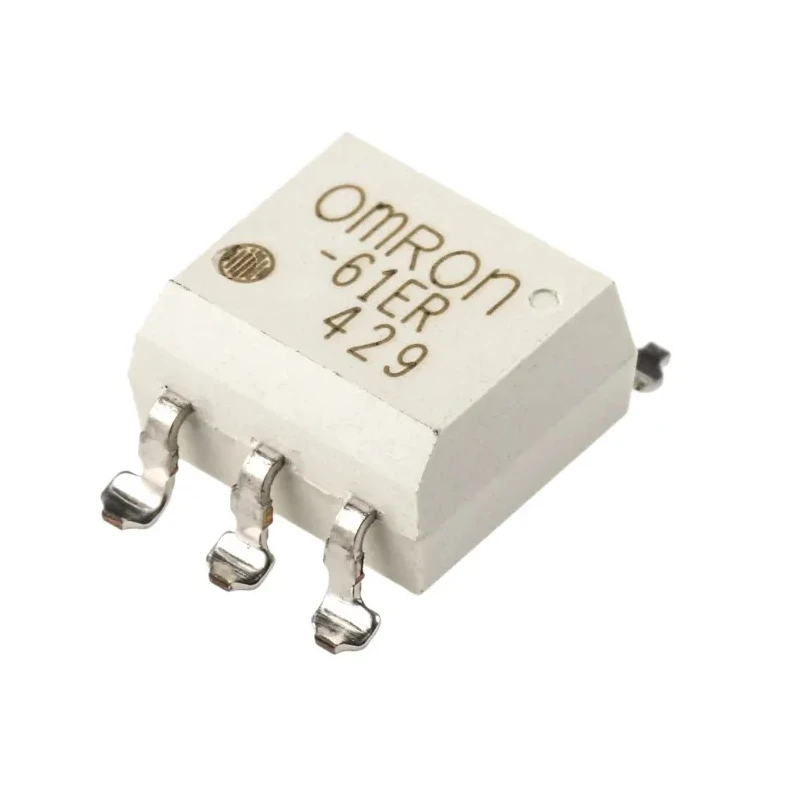

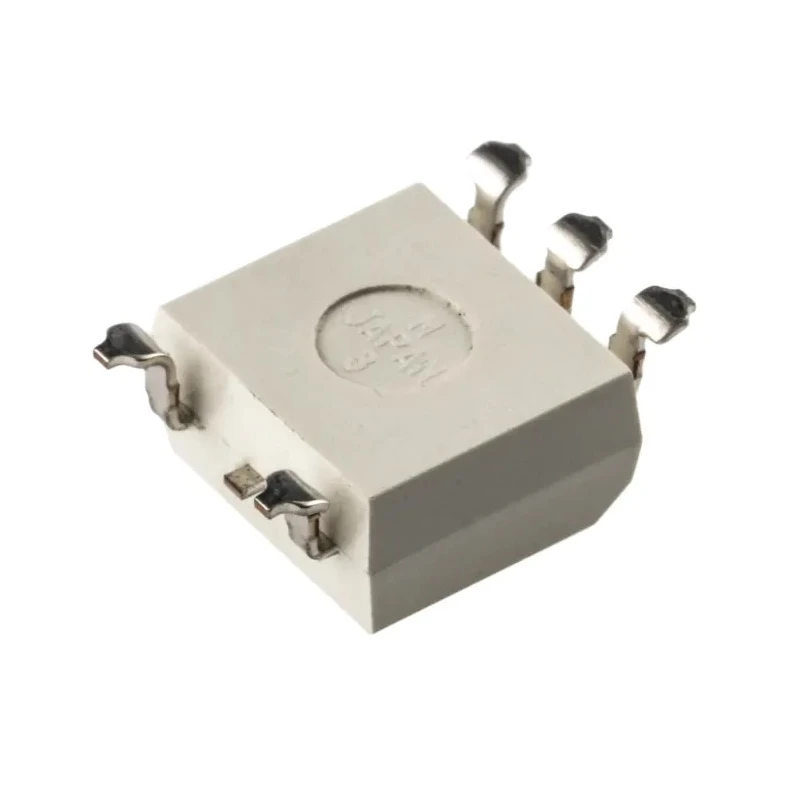

Omron Solid State Relay Surface Mount PCB Terminal 60V AC Load 2.5A 1.5V Control G3VM

Omron G3VM-61ER is a general purpose MOSFET Solid State Relay (SSR) designed for reliable, maintenance-free switching of analogue and digital signals. It operates with a maximum load voltage of 60V AC and a load current up to 2.5A. The surface mount SSR comes in a compact DIP6 dual in-line package with PCB terminal connections, offering easy integration into electronic circuits.

This SSR features a normally open contact configuration (SPST-NO) and a MOSFET output for low power loss and high efficiency. The relay exhibits minimal off-state leakage current of 30mA, and a maximum resistance of 0.65 Ω when ON, providing excellent conduction properties. The device switches rapidly with typical turn ON and OFF times of 1.5 ms and 0.4 ms respectively, suitable for high-speed industrial and telecommunications applications.

The G3VM-61ER is built with robust insulation and shock resistance to withstand harsh industrial conditions. It incorporates a photo-LED input for optical isolation and status output for monitoring operation. The relay is RoHS compliant and made in Japan for assured reliability and quality.

Operating reliably in ambient temperatures from -20°C to 85°C, this SSR series is ideal for home appliances, security equipment, and measurement instruments that require silent, fast switching of low-level AC signals. Its compact form factor (7.1mm x 6.4mm x 3.7mm) makes it suitable for dense PCB layouts.

Surface mount MOSFET SSR for general purpose switching. Supports 2.5A maximum load current at 60V AC load voltage. Low ON resistance and low leakage current for energy efficiency. High-speed switching useful in telecom and security applications.

Robust build with high dielectric strength of 2500 Vrms between I/O. Compact DIP6 dual in-line package with PCB terminals. RoHS compliant, manufactured in Japan. Wide operating temperature range: -20°C to 85°C. Photo-LED input and status output provided for control and monitoring.

This product is categorized under Solid State Relays in our electronics and electricals section and suits applications in industrial automation, electronics manufacturing, and security systems. Explore more quality relays and contactors from Omron at EnvMart for your specific needs.
