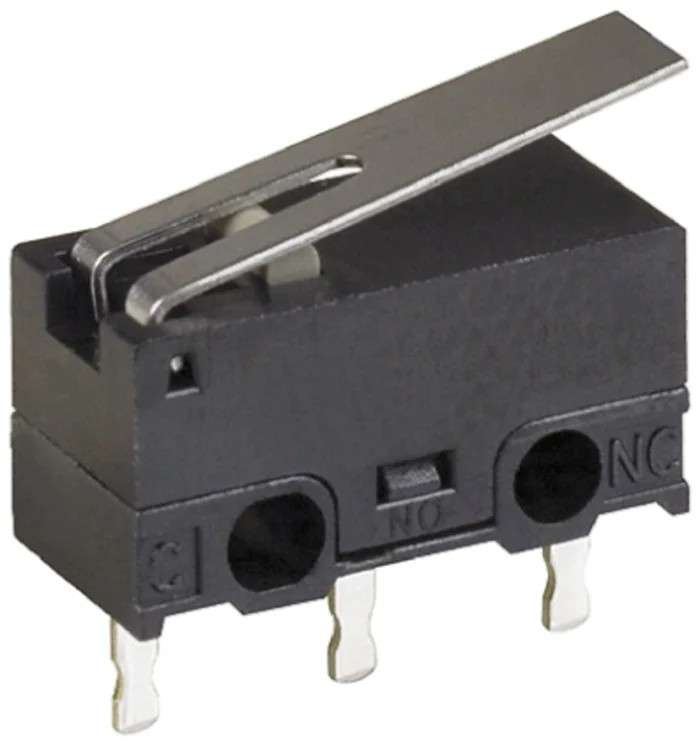

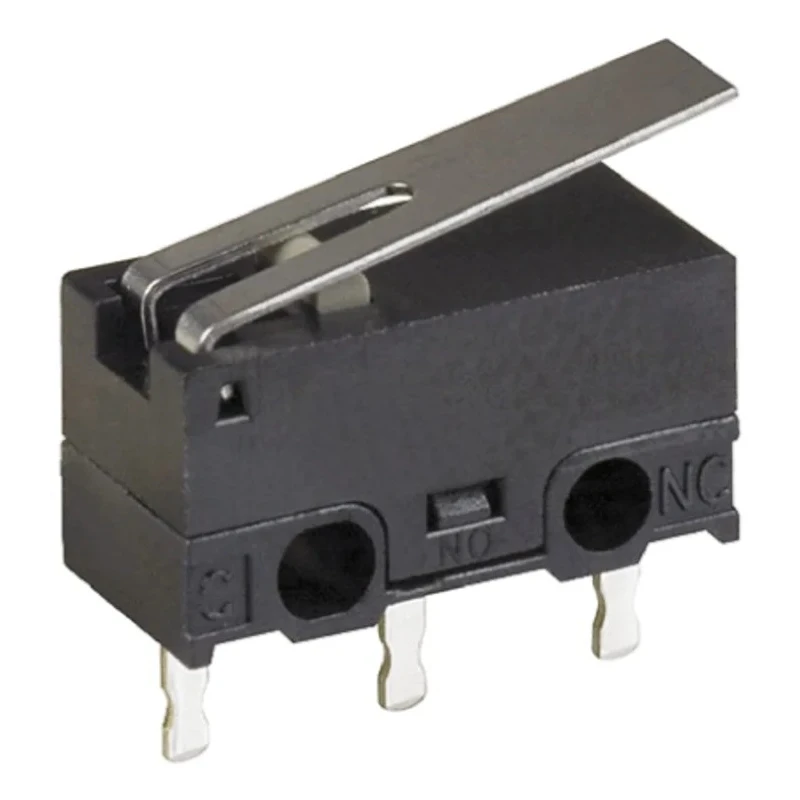

Omron Ultra Subminiature Hinge Lever Micro Switch, Solder Terminal, 1A, 30V dc, SPDT, IP40 D2F-FL

Omron D2F-FL Ultra Subminiature Hinge Lever Micro Switch is engineered for precise and reliable switching performance in electrical and automation applications. This microswitch features a hinge lever actuator and solder terminals, facilitating easy integration into various electronic devices and control circuits.

Designed with SPDT contact configuration, the switch supports complex circuit requirements by allowing switching between two output lines. It operates at a switch contact current of 1A and contact voltage of 30V dc, making it suitable for low voltage and current applications.

The device offers an IP40 ingress protection rating, protecting against solid objects larger than 1 mm while providing adequate environmental resistance. Its low operating force of 0.25N enables smooth actuation with minimal user effort, enhancing sensitivity for precision equipment.

With a mechanical life of one million operations, this ultra subminiature switch promises long service life, reducing downtime and maintenance costs. The compact size of 12.8 mm length makes it viable for designs where space conservation is critical.

Omron D2F-FL complies with RoHS environmental standards and holds UL and CSA approvals, ensuring adherence to international quality and safety benchmarks. Manufactured in Japan, it reflects superior craftsmanship and reliability.

This micro switch is widely applicable in household appliances, audio equipment, communication devices, industrial automation systems, and HVAC controls. Its snap action mechanism ensures swift and dependable switching response for critical industrial, laboratory, and commercial uses.

Features a hinge lever actuator for precise control and reliable snap action. Solder terminal type designed for robust and secure electrical connections. Contact rating of 3A at 125V ac for silver contacts; 0.1A at 30V dc for gold contacts.

Durable with a mechanical life expectancy of 1,000,000 operations. Compact ultra subminiature size, 12.8 mm length fitting tight spaces. Operating temperature range from -25°C to 65°C suitable for various environments. Single Pole Double Throw (SPDT) contact configuration for multiple switching needs.

Manufactured in Japan with RoHS compliance and international approvals.
