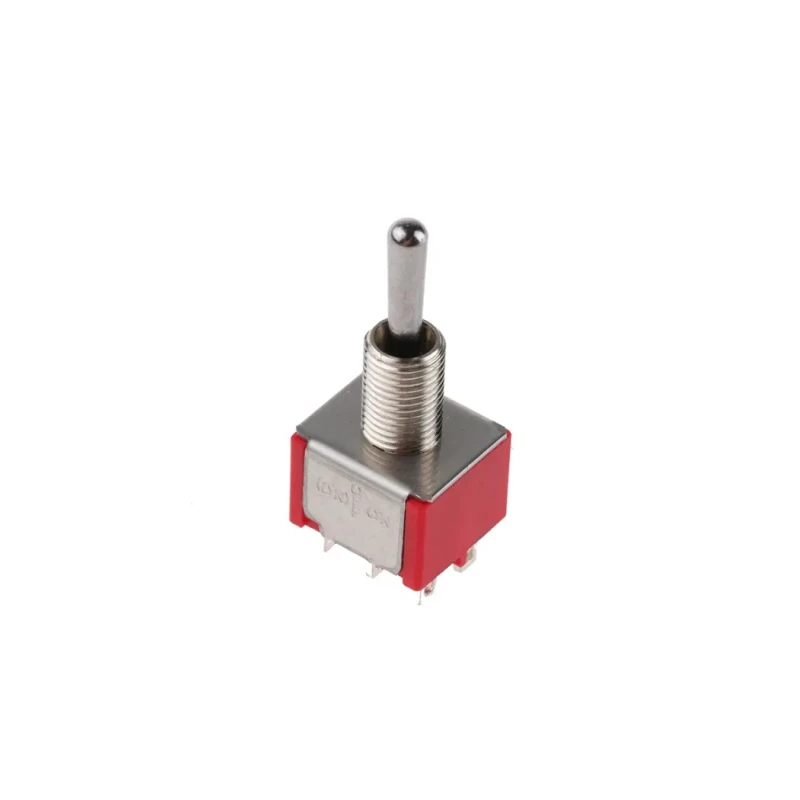

TE Connectivity Panel Mount Toggle Switch On-Off-(On) DPDT Solder Terminal 28 V dc 240 V ac 2-1825139-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP55 |
| Width | 0.45in |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | EN, RoHS, IEC, UL, cULus |
| Switch Operation | On-Off-(On) |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Phenolic |
Key Features
- This switch supports a contact current rating of 5 A for reliable electrical performance.
- Mount type is panel with solder terminal connection for secure installation.
- It is rated IP55 for protection against dust and low-pressure water jets.
- The actuator is constructed of phenolic material with a length of 10.41 mm for durability.
- The switch operates within a temperature range of -30°C to 85°C, suitable for various industrial environments.
- Mechanical life expectancy is 6000 cycles ensuring long service life with durable epoxy sealed terminals.
- The stainless steel frame with brass tin plated solder support provides robust mechanical strength.
- The panel cutout size required is 6.35 mm with overall dimensions of 0.50 inches length and 0.45 inches width.
Product Description
TE Connectivity 2-1825139-4 is a high-quality panel mount toggle switch designed for industrial and electrical applications requiring On-Off-(On) DPDT functionality. It supports both 28 V dc and 240 V ac contact voltages, making it versatile for automation, control systems, and electrical panels.
The switch is designed with solder terminals and a stainless steel frame for durability and easy assembly in control panels. It also offers an IP55 rating, providing effective protection against dust ingress and water jets for enhanced reliability in harsh environments.
Equipped with a phenolic actuator measuring 10.41 mm in length, this toggle switch ensures precise switching action. It withstands wide operating temperatures from -30°C up to 85°C, making it suitable for varied industrial climates.
Mechanical life of 6000 cycles guarantees long-lasting performance. The epoxy sealed terminals prevent contamination and ensure electrical safety. The compact dimensions of approximately 0.50 inches length and 0.45 inches width optimize panel space usage.
This toggle switch is ideal for use in electrical, automation, manufacturing, and industrial control systems requiring reliable switching within moderate voltage and current ratings.
This panel mount toggle switch offers a dependable DPDT contact configuration with On-Off-(On) operation. Rated for 5 A current carrying capacity, it supports a broad range of electrical loads. Its robust construction includes epoxy sealed terminals and stainless steel frame.
Rated IP55 for dust and water resistance, suitable for challenging industrial conditions. Phenolic actuator enhances mechanical reliability with a precise switching length of 10.41 mm. Wide temperature range operation from -30°C to 85°C for versatile environment use.
Compact size with 6.35 mm panel cutout dimension aids easy installation. Designed for high cycle durability with a mechanical life of 6000 cycles. Explore more high-quality Toggle Switches and related electrical components in the Electronics & Electricals category on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a contact current rating of 5 A, providing reliable electrical performance for various applications.
It is rated for contact voltages of 28 V dc and 240 V ac, making it versatile for different electrical systems.
This toggle switch operates within a temperature range of -30°C to 85°C, suitable for various industrial environments.
The switch has an IP55 rating, providing protection against dust ingress and low-pressure water jets.
The overall dimensions are approximately 0.50 inches in length and 0.45 inches in width, with a required panel cutout size of 6.35 mm.
It has a mechanical life expectancy of 6000 cycles, ensuring long service life in applications.
This model features solder terminals for secure installation in control panels.
The actuator is constructed of phenolic material, which enhances its durability and mechanical reliability.
It complies with EN, RoHS, IEC, UL, and cULus standards, ensuring it meets various regulatory requirements.
The switch is designed for panel mounting, facilitating easy integration into control systems.
This toggle switch features a DPDT (Double Pole Double Throw) configuration with On-Off-(On) operation.
The switch is manufactured in India, reflecting its origin in the production process.
