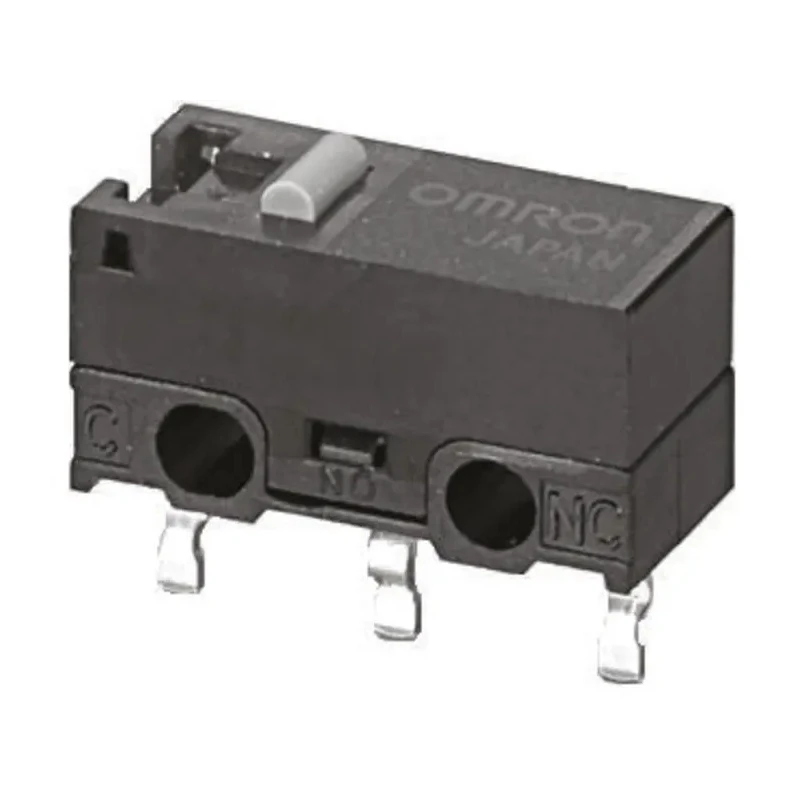

Omron Ultra Subminiature Pin Plunger Micro Switch PCB Terminal 3A 30V dc SPDT IP40 D2F-T

Omron D2F-T ultra subminiature pin plunger micro switch offers reliable snap action switching ideal for use in home appliances, audio equipment, and communications devices. Operating at 3A contact current at 30V dc with single-pole double-throw (SPDT) contact configuration, this microswitch is designed for low voltage applications requiring precise actuation and reliable switching performance.

This microswitch employs a pin plunger actuator type and PCB terminal for straightforward mounting on printed circuit boards. It provides an operating force of 1.47N, ensuring smooth and consistent actuation. The device is rated IP40 for ingress protection, offering dust protection suitable for many industrial and commercial environments.

Designed as part of the D2F series, the switch endures up to 1,000,000 mechanical operations, providing extended service life. It operates efficiently within an ambient temperature range of -25°C to 65°C, making it suitable for varied environmental conditions. The switch contacts are silver rated at 3A @125Vac and gold rated at 0.1A @30Vdc, offering versatility in different electrical circuits.

This product is RoHS compliant and carries UL and CSA approvals, ensuring conformance with international safety and environmental regulations. Manufactured in Japan, it reflects Omron's commitment to quality and reliability.

The compact size, listed at a length of 12.8mm, supports integration within tight spatial constraints in industrial automation, HVAC control panels, manufacturing equipment, and electrical instrumentation. Its ultra subminiature design facilitates use in precision control applications where space-saving components are critical.

Designed with ultra subminiature form factor for compact applications. Features a pin plunger actuator ensuring precise actuation. PCB terminal type provides easy circuit board integration. Operates reliably within temperature range of -25°C to 65°C.

Provides IP40 ingress protection rating against solid objects. Has a mechanical life of 1,000,000 operations ensuring durability. Contact rating includes 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.

Complies with RoHS and approved by UL and CSA standards.

This micro switch is extensively used in industrial automation, electrical control panels, HVAC systems, consumer electronics, and communication devices due to its durability, compact size, and reliable switching performance. Explore more Micro Switch options at EnvMart to meet diverse industrial application requirements.
