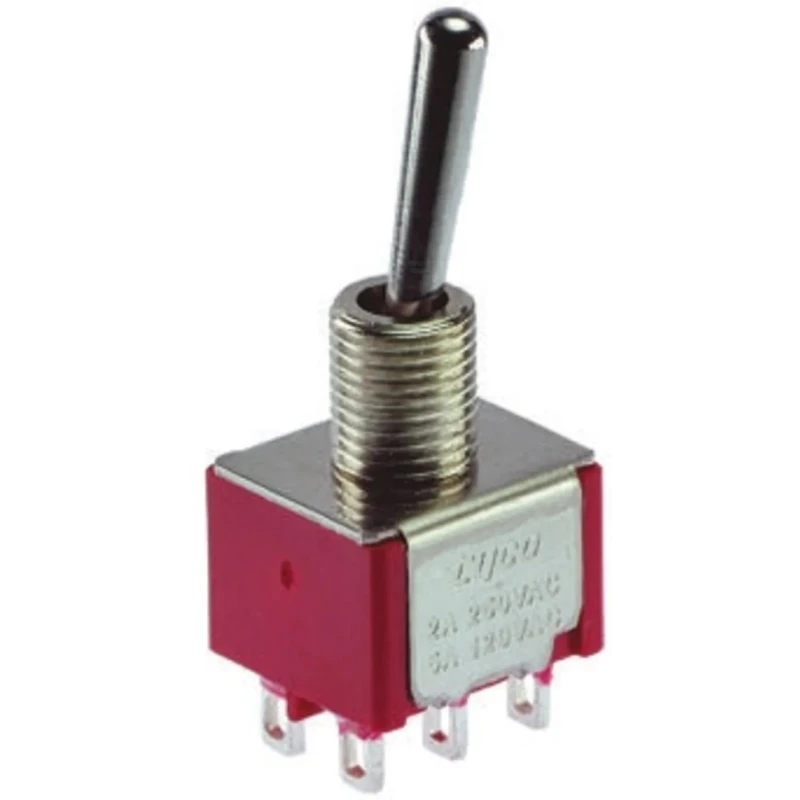

TE Connectivity Panel Mount Toggle Switch On-Off-On DPDT 28 V DC 125 V AC Gemini A Series 1-1825139-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch supports 28 V DC and 125 V AC voltage ratings.
- It features solder terminal connections to ensure secure and lasting electrical contact.
- The Gemini A series switch is epoxy sealed and constructed with a stainless steel frame and phenolic actuator for durability.
- Panel cutout size measures 6.35 mm enabling easy mounting on standard panels.
- The switch operates reliably across a temperature range from -30°C to 85°C.
- Compact dimensions with length 0.5 in, width 0.45 in, and height 0.35 in.
- The actuator length is 10.41 mm facilitating ergonomically tactile control.
- This toggle switch complies with RoHS standards for environmental safety.
Product Description
TE Connectivity 1-1825139-0 Panel Mount Toggle Switch is a dual pole double throw (DPDT) switch featuring On-Off-On operation and solder terminal connections. It is engineered for industrial and automation use where reliable switching and robust construction are critical.
This Gemini A series toggle switch supports 28 V DC and 125 V AC voltage ratings with a 5 A contact current capacity. The epoxy sealed terminals and stainless steel frame with brass tin-plated solder supports ensure long service life and resistance to environmental effects.
The phenolic actuator offers a durable tactile interface, with actuator length measured at 10.41 mm for effective user control. The panel cutout size is 6.35 mm, enabling mounting on standard electrical panels. This compact switch measures 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height, making it suitable for integration in constrained spaces.
Designed to operate reliably in extreme conditions, it withstands temperatures as low as -30°C and up to 85°C. Its RoHS compliance assures environmentally safe materials and manufacturing processes.
Typical use cases include industrial automation, electrical control systems, instrumentation, and panel mounted electrical operations requiring precise On-Off switching. This toggle switch supports 28 V DC and 125 V AC voltage ratings.
Epoxy sealed terminals ensure protection against dust and moisture. Stainless steel frame with brass tin plated solder support for enhanced durability. Panel cutout size of 6.35 mm for standard mounting compatibility. Operating temperature range from -30°C up to 85°C.
Compact dimensions with 0.5 in length, 0.45 in width, and 0.35 in height. On-Off-On switch configuration for versatile control. 5 A contact current suitable for low power electrical circuits. Complies with RoHS environmental standards.
Phenolic actuator ensures long lasting switch operation. Discover more quality Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch supports voltage ratings of 28 V DC and 125 V AC.
It has a contact current capacity of 5 A, suitable for low power electrical circuits.
The switch operates reliably across a temperature range from -30°C to 85°C.
This model measures 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
The panel cutout size for this switch is 6.35 mm, allowing for easy mounting on standard panels.
It features solder terminal connections to ensure secure and lasting electrical contact.
The switch has a stainless steel frame and a phenolic actuator, providing durability and a tactile interface.
Yes, it complies with RoHS standards for environmental safety.
This toggle switch features an On-Off-On configuration, allowing versatile control.
Typical applications include industrial automation, electrical control systems, and instrumentation requiring precise On-Off switching.
This model is part of the Gemini A series, designed for industrial and automation use.
The actuator length is 10.41 mm, facilitating effective user control.
