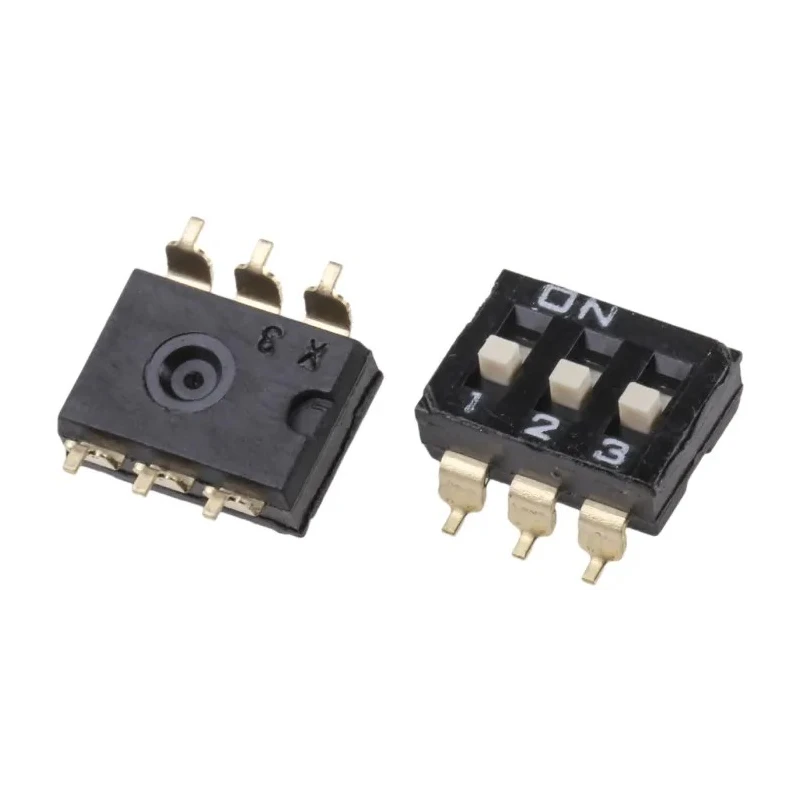

Omron Slide Rotary Coded DIP Switch Surface Mount A6S-3104-H

Omron A6S-3104-H Slide Rotary Coded DIP Switch is a surface mount rotary switch featuring a slide type actuator and gold plated contacts for enhanced electrical performance and durability.

Designed to DIL standards, this DIP switch supports automatic mounting with IC insertion machines, making it suitable for high-efficiency manufacturing environments. The slide actuators are available as sealed tape versions for additional protection.

Key electrical specifications include a contact resistance of 200mΩ max and insulation resistance of 100MΩ minimum at 250Vdc, which assures reliable switching and insulation quality. It has a mechanical life rating of 1000 operations, indicating durable performance for cycle-intensive applications.

Constructed with RoHS compliance, this switch adheres to environmental safety and sustainability standards. The gold plated contacts improve contact reliability, reducing corrosion and electrical noise.

This switch is designed for surface mount applications, compliant with DIL standards. Contact resistance is a maximum of 200mΩ ensuring reliable electrical performance. Insulation resistance is at least 100MΩ at 250Vdc for safety and durability.

The mechanical life expectancy is rated for 1000 operations. Gold plated contacts contribute to improved corrosion resistance and contact reliability. Switches are flat actuator type, optimized for automatic mounting with IC insertion machines.

The product is RoHS compliant, ensuring environmental safety.

This rotary coded DIP switch is broadly used in electronics, electrical automation, industrial controls, and PCB assembly processes. It is ideal for manufacturing automation, equipment controls, and high-density electronic circuit designs.
