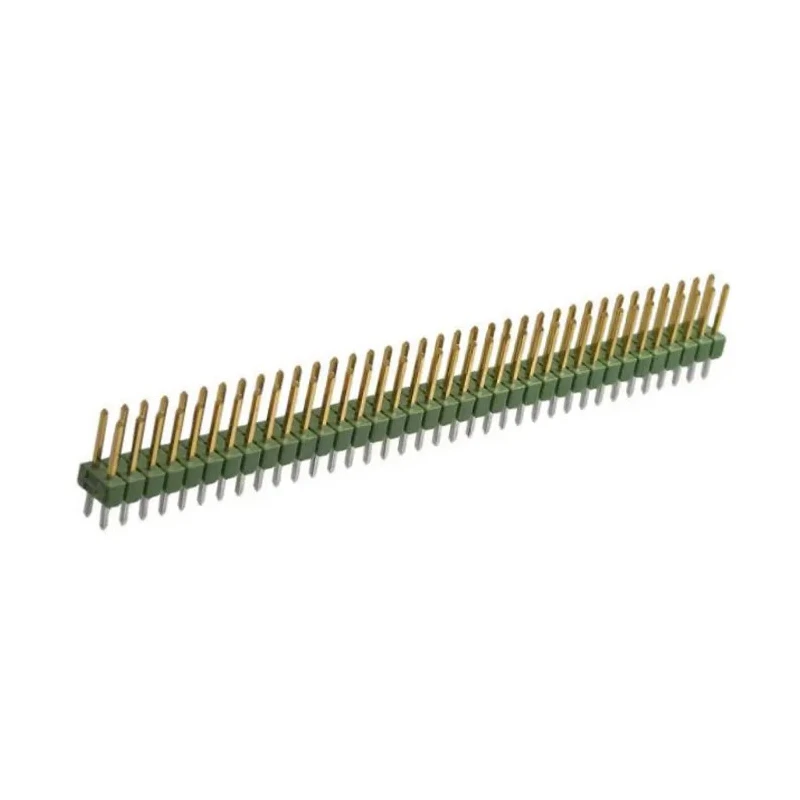

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 72 Contacts, 2.54 mm Pitch, 2 Row 3-826632-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 72 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features 72 gold-plated brass male contacts for optimal conductivity.
- Housed in durable Polybutylene Terephthalate material ensuring long-term stability.
- Supports a current rating of 3A suitable for various industrial applications.
- Allows through-hole mounting with a straight orientation and a 2.54 mm row pitch.
- Operates reliably from -65°C up to 105°C in demanding environments.
- Includes solder termination with 3.2 mm tail pin length and 6.7 mm mating pin length for secure connections.
- Unshrouded design enables versatile use and easy breakaway to required sizes.
- Ideal for automotive, industrial, telecommunications, medical, and computer equipment.
Product Description
TE Connectivity 3-826632-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a precision-engineered component featuring 72 gold-plated brass male contacts arranged in two rows with a 2.54 mm pitch. This unshrouded pin header is manufactured with high-quality Polybutylene Terephthalate housing to provide mechanical robustness and electrical insulation.
Designed for through-hole mounting with a straight orientation, it ensures strong, reliable connections in board-to-board and wire-to-board systems. The device supports a continuous current of 3 amps, making it suitable for a wide range of electrical and electronic applications.
The header operates effectively within a temperature range from -65°C to 105°C, suitable for harsh industrial and automotive environments. Tail pins have a length of 3.2 mm for solder termination, and mating pins extend to 6.7 mm to ensure secure and stable mating with complementary connectors.
The AMPMODU MOD II system is versatile and cost-effective, allowing the breakaway header to be sized precisely for the application, reducing waste and installation time. This makes it highly appropriate for use in industrial controls, telecommunications, medical instrumentation, storage equipment, and various consumer appliances.
Multiple rows of gold-plated brass contacts for high conductivity and low resistance. Durable housing material for extended lifecycle and resistance to environmental stress. Wide operating temperature range for diverse applications.
Unshrouded design facilitates easy modification and accessibility. Through-hole mount compatible with standard PCB assembly processes. Reliable solder termination for mechanical and electrical stability. Compatible with various AMPMODU connectors ensuring system interoperability.
This AMPMODU MOD II pin header represents a reliable and economical solution for signal interconnectivity in complex industrial and commercial electronic assemblies. EnvMart offers this component to meet demanding design requirements with assured quality and performance.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a continuous current rating of 3A, making it suitable for various electrical and electronic applications.
The contacts in this model are arranged with a pitch of 2.54 mm, allowing for standard PCB assembly processes.
The housing is made of Polybutylene Terephthalate, and the contacts are made of brass with gold plating for optimal conductivity.
It operates reliably within a temperature range from -65°C to 105°C, suitable for demanding environments.
This pin header features 72 male contacts arranged in two rows.
It uses solder termination with a tail pin length of 3.2 mm for secure connections.
This model is unshrouded, which allows for versatile use and easy breakaway to required sizes.
It supports both board-to-board and wire-to-board connector systems, enhancing its application versatility.
The mating pins have a length of 6.7 mm, ensuring stable mating with complementary connectors.
The country of origin for this pin header is India.
It is ideal for applications in automotive, industrial, telecommunications, medical, and computer equipment.
