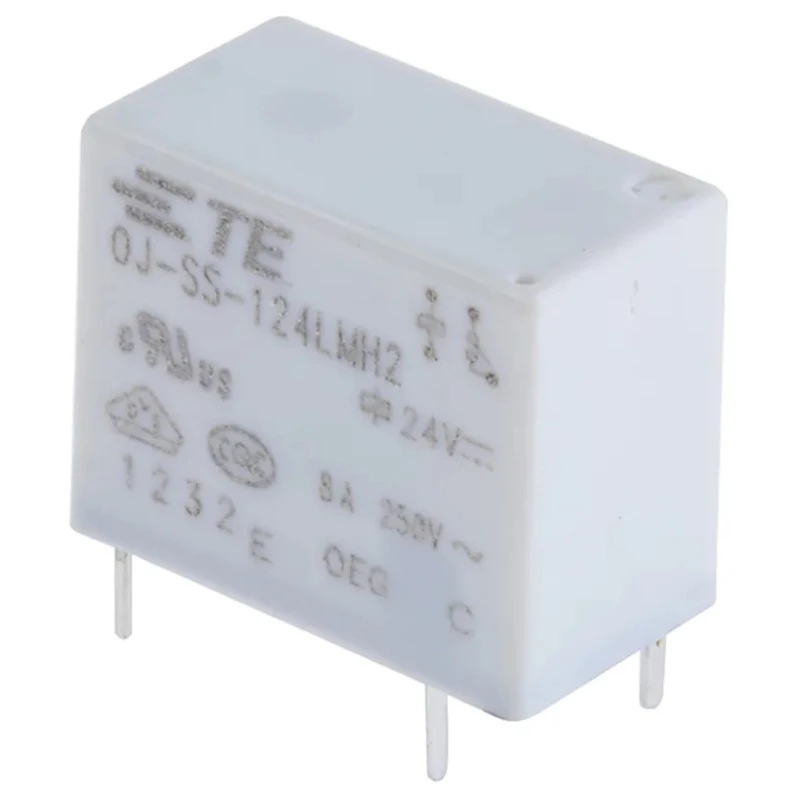

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current SPST OJ-SS-124LMH2,005

TE Connectivity presents the OJ-SS-124LMH2,005 PCB Power Relay, engineered for reliable switching performance in electrical and automation applications. This relay operates with a 24V DC coil voltage and supports an 8A switching current with a SPST contact arrangement, making it ideal for power control on printed circuit boards.

The solder terminal mount type ensures seamless PCB integration and robust mechanical stability. The relay boasts a compact form factor, measuring 14.7mm in height, 18.2mm in length, and 10.2mm in width, optimizing space on crowded circuit layouts.

Designed to operate within a broad temperature range from -30°C to 85°C, this relay accommodates diverse environmental conditions. Its coil resistance of 2.9kΩ and coil power of 200mW enable efficient power consumption during actuation.

The contact material is a silver alloy, ensuring excellent electrical conductivity and long operational life with minimal wear. The relay’s isolation voltage is rated at 4000Vac between coil and contacts, guaranteeing safe and reliable operation in high voltage circuits.

This product conforms to RoHS directives, affirming its compliance with environmental safety standards. Manufactured in China, it offers consistent quality for industrial, laboratory, and commercial electrical control systems.

This power relay operates with a coil voltage of 24V DC. It provides a single pole single throw (SPST) contact configuration. The relay supports switching currents up to 8 Amperes. Designed for PCB mounting with solder terminals for easy assembly.

Its maximum operating temperature is 85°C, suitable for various environments. The coil power consumption is low at 200mW, facilitating efficient operation. The contact material is silver alloy ensuring durability and reliable conductivity.

The relay dimensions are compact at 14.7mm height, 18.2mm length, and 10.2mm width. It complies with RoHS standards for environmental safety. The product is manufactured in China and provides isolation between coil and contact with 4000Vac.

This TE Connectivity PCB Power Relay is ideal for integration into industrial automation, power supplies, HVAC control systems, and other applications requiring dependable electrical switching. Explore the full range of TE Connectivity Power Relays and related electrical components on EnvMart.
