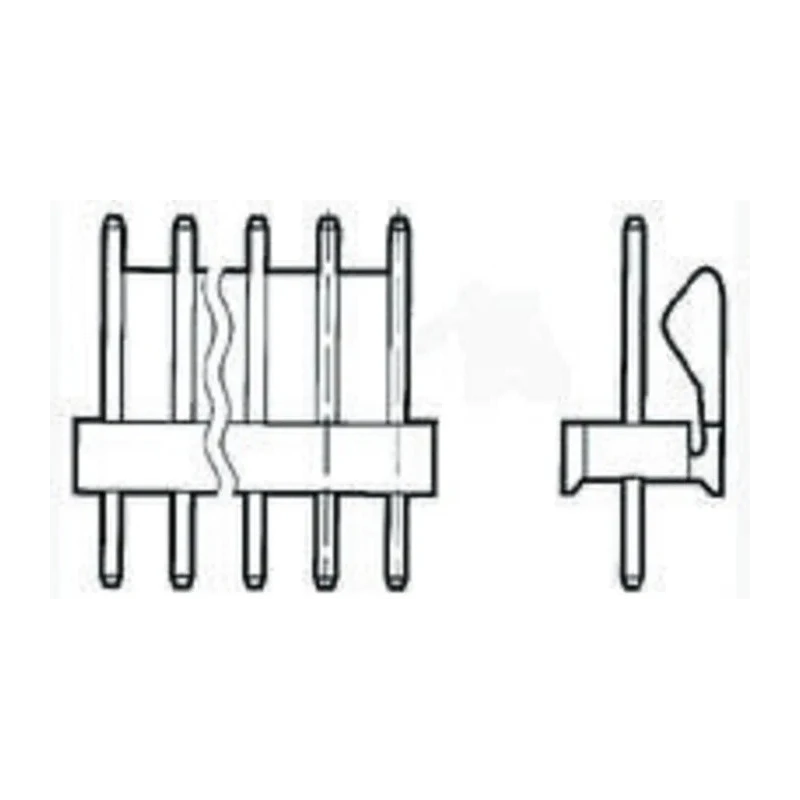

TE Connectivity MTA-156 Series Straight Through Hole Pin Header 7 Contact 3.96 mm Pitch 1 Row Unshrouded 640388-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7A |
| Model | 640388-7 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 10.16mm |
Key Features
- Constructed with glass filled polyester housing for durability and insulation.
- Capable of carrying up to 7A current at a voltage rating of 600V.
- Contacts made from copper alloy with tin plating provide excellent conductivity and corrosion resistance.
- Compatible with MTA-156 IDC connectors offering cost-effective mass termination solutions.
- Designed with friction lock mechanism ensuring secure mating connections and end-to-end stackability.
- Through hole mounting type supports robust PCB attachment.
- Suitable for a wide temperature range from -55°C to 105°C for varied industrial applications.
- Male contact gender with tail pin length of 3.18 mm and mating pin length of 10.16 mm.
Product Description
TE Connectivity 640388-7 MTA-156 Series Straight Through Hole Pin Header is designed for reliable mass termination of wires using MTA-156 IDC connectors. Its 3.96 mm pitch and 7 contacts in a single row make it ideal for wire-to-board applications requiring secure electrical connections.
The housing is made of glass filled polyester, delivering mechanical strength and electrical insulation suitable for industrial and electronic assembly environments. Copper alloy contacts plated with tin ensure stable electrical conductivity and protection against corrosion over extended use.
This pin header supports a continuous current up to 7A and a voltage rating of 600V, allowing its application in a variety of power and signal circuits. The unshrouded, straight orientation design is adapted to through-hole mounting on printed circuit boards, providing mechanical stability.
The MTA-156 connector system, employing IDC technology, significantly reduces assembly time and cost by enabling one-step mass termination without wire stripping. Its friction lock mechanism guarantees secure mating with compatible connectors, and the end-to-end stackable feature allows flexibility in installation length.
Operating reliably between temperatures of -55°C and 105°C, this header is suited for automotive body systems, chassis systems, driver information units, safety and security equipment, as well as computing appliances such as desktops, notebooks, servers, and storage devices.
Constructed with glass filled polyester housing for durability and insulation. Capable of carrying up to 7A current at a voltage rating of 600V. Contacts made from copper alloy with tin plating provide excellent conductivity and corrosion resistance.
Compatible with MTA-156 IDC connectors offering cost-effective mass termination solutions. Designed with friction lock mechanism ensuring secure mating connections and end-to-end stackability. Through hole mounting type supports robust PCB attachment.
Suitable for a wide temperature range from -55°C to 105°C for varied industrial applications. Male contact gender with tail pin length of 3.18 mm and mating pin length of 10.16 mm. Set contains: 1 Piece of TE Connectivity MTA-156 Series pin header.
Explore more from our comprehensive catalogue of high-quality PCB connectors at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can carry a maximum current of 7A.
The voltage rating for this pin header is 600V.
It supports through-hole mounting, which provides robust attachment to printed circuit boards.
The housing is constructed from glass filled polyester, which provides durability and insulation.
The pitch size of the contacts is 3.96 mm.
This pin header has 7 contacts arranged in a single row.
It operates reliably within a temperature range of -55°C to 105°C.
The contacts are plated with tin, which provides excellent conductivity and corrosion resistance.
The tail pin length is 3.18 mm, and the mating pin length is 10.16 mm.
Yes, it is compatible with MTA-156 IDC connectors, allowing for cost-effective mass termination solutions.
The contacts in this model are male.
It is suitable for various applications including automotive body systems, chassis systems, and computing appliances such as desktops and servers.
