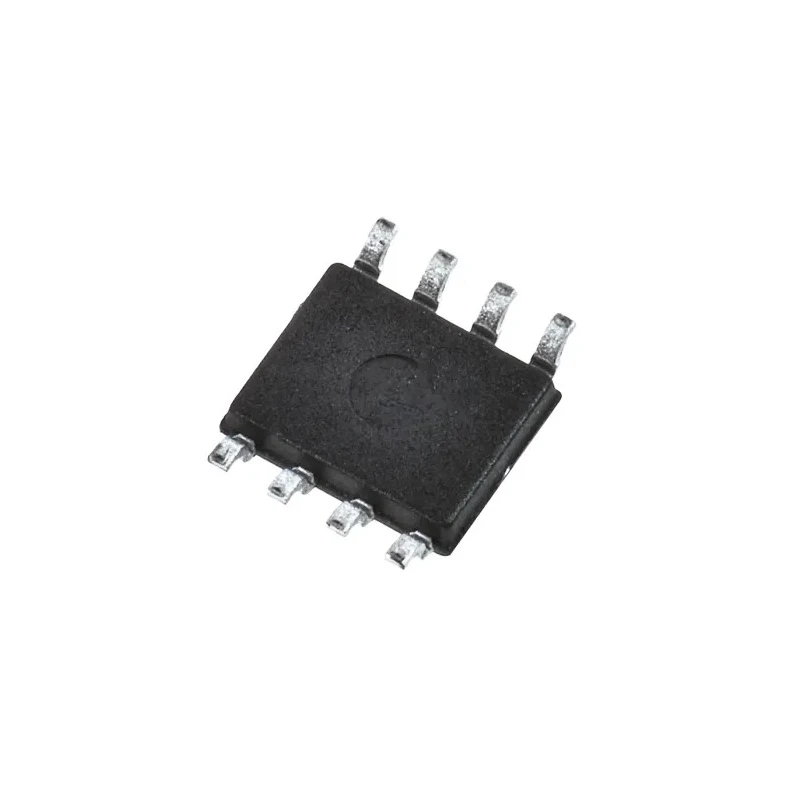

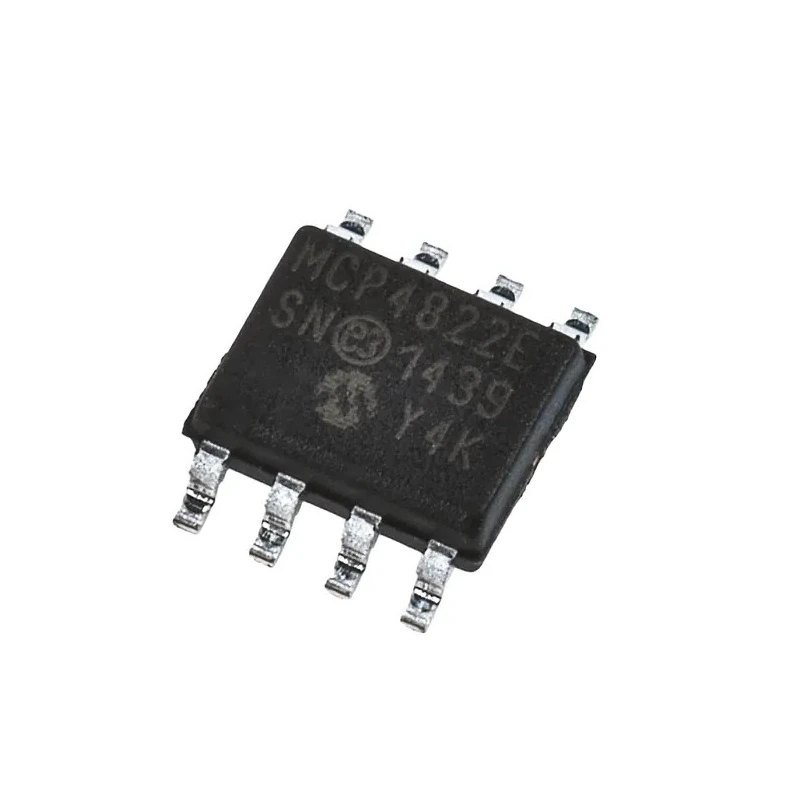

Microchip 12 bit 2-Channel SPI, Microwire Digital to Analogue Converter SOIC 8-Pin MCP4822-E/SN

The Microchip MCP4822-E/SN is a high-precision 12 bit Digital to Analogue Converter (DAC) featuring two output channels and a SPI / Microwire compatible interface. Housed in an 8-pin SOIC surface mount package, this DAC offers resistor string architecture which ensures accurate and reliable analogue voltage outputs. Operating within a supply voltage range of 5 to 5.5 volts, it includes an internal voltage reference, simplifying the design integration by eliminating the need for external voltage references.

Designed for industrial and electronic applications, it supports temperatures from -40°C to 125°C, making it suitable for demanding environments. Its fast settling time of 4.5 microseconds guarantees swift conversion response where timing is critical. The compact form factor measures 4.9 mm in length, 6 mm in width, and 1.7 mm in height, allowing for space-saving designs in modern PCBs.

The device is primarily implemented in electronic circuits requiring precise digital to analogue conversion such as instrumentation, control systems, and audio applications. Despite its lack of formal automotive certification, its comprehensive temperature range and robust specifications position it for wide industry adoption.

Utilizes resistor string architecture for precise analogue output. Features 2 output channels for multi-signal generation. Interface supports SPI and Microwire communication protocols. Compact 8-pin SOIC surface mount package for efficient PCB integration.

Internal voltage reference ensures consistent output performance. Operating voltage range from 5V up to 5.5V for flexible power supply options. Wide ambient temperature operation ranging -40°C to 125°C. Fast settling time of 4.5 microseconds ensures timely signal conversion.

Provides analogue voltage outputs suitable for varied electronic applications. Designed for industrial, electronic, and laboratory usage scenarios.

This Microchip DAC model MCP4822-E/SN serves a critical role in converting digital signals into stable analogue voltages used in precise control and measurement systems. The reliable performance paired with a well-known brand ensures availability for engineers and technicians deploying advanced electronic designs.

Browse more high-quality Digital to Analogue Converters and Microchip products in EnvMart’s comprehensive semiconductor offerings for industrial-grade electronics.
