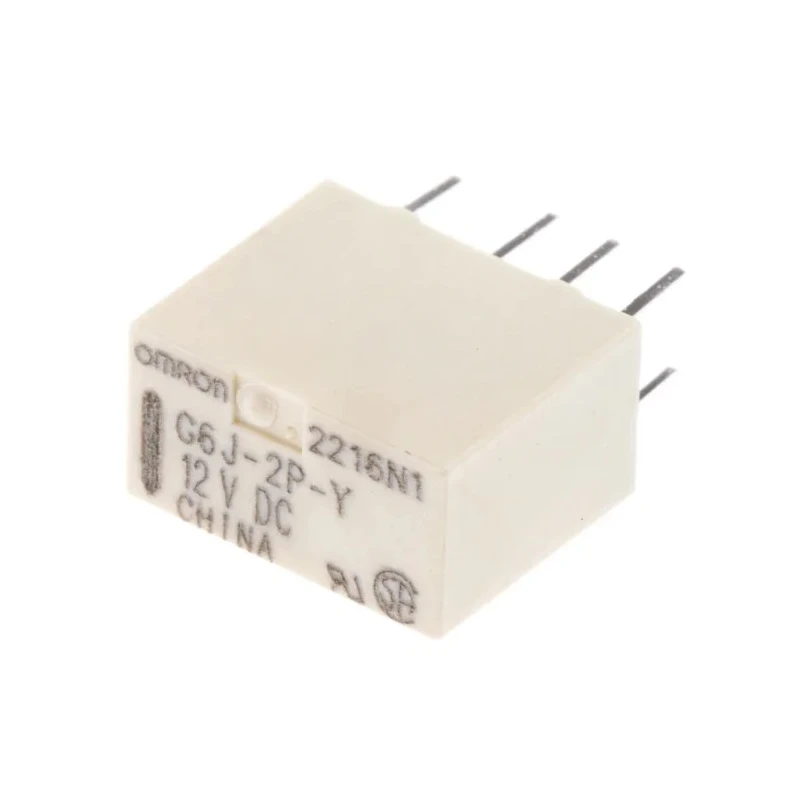

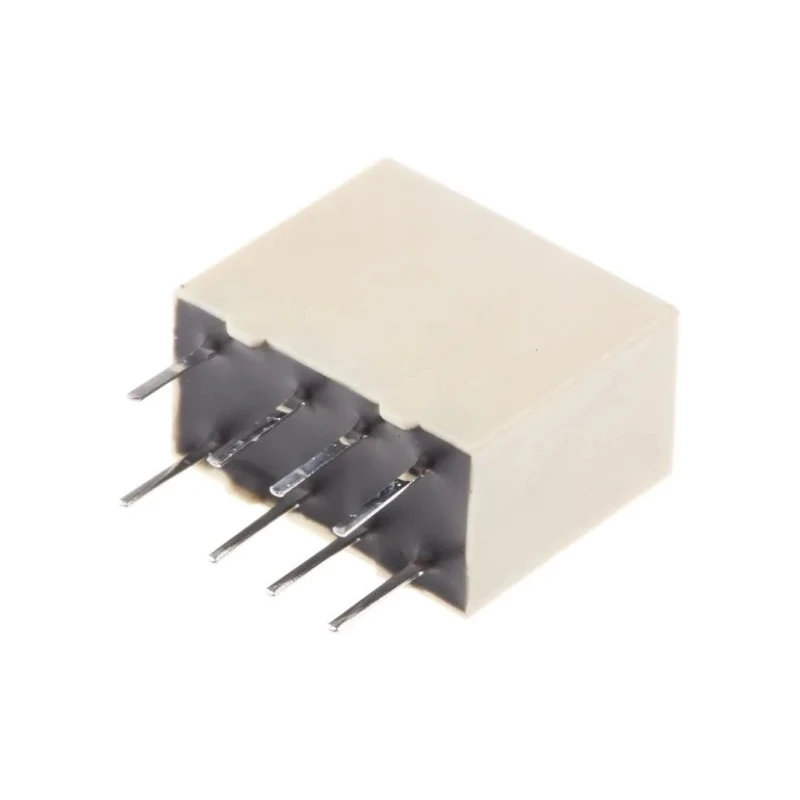

Omron PCB Signal Relay 12V DC Coil 1A Switching Current DPDT G6J-2P-Y DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9mm |
| Length | 10.6mm |
| Model | G6J-2P-Y DC12 |
| Width | 5.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6J |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 976Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
| Omron PCB Mount Non-Latching Relay, 12V dc Coil, 1A Switching Current, DPDTBrand | Omron |
Key Features
- Ultra compact and slim design ideal for PCB mounting applications.
- Fully sealed relay ensuring durability and protection against environmental factors.
- Operating temperature range from -40°C to 85°C for versatile industrial use.
- Gold plated contacts enhance conductivity and resistance to wear.
- Coil power consumption is low at 140mW, improving energy efficiency.
- Complies with RoHS standards for environmental safety.
- Conforms to North American Telcordia and FCC specifications for impulse withstand voltage.
- Suitable for signal relay applications in electronics, automation, telecom, and control systems.
Product Description

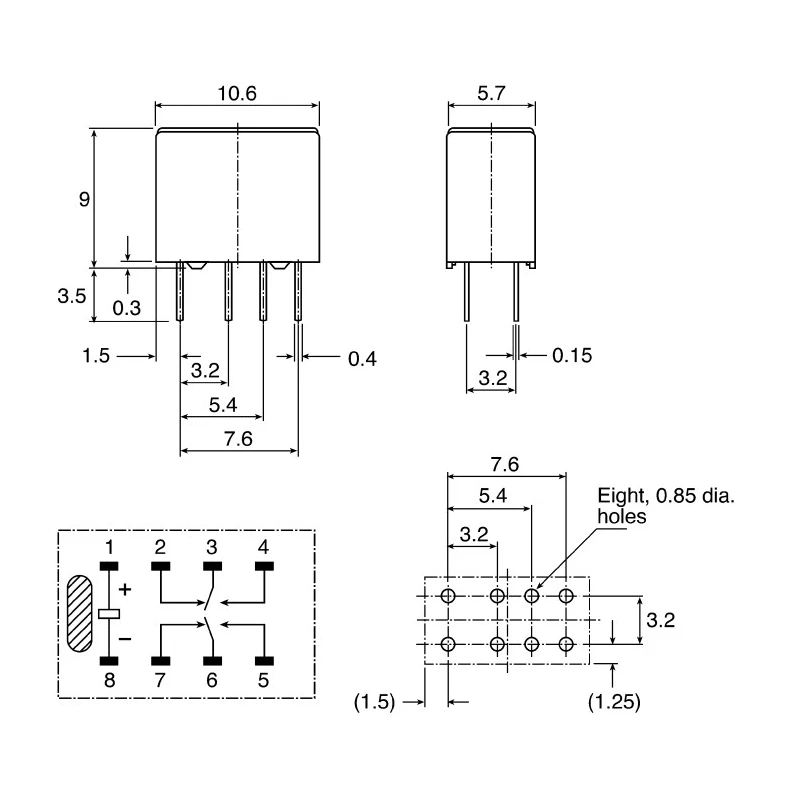

Omron G6J-2P-Y DC12 PCB Signal Relay is a precision-engineered component designed for industrial and electronic signal switching applications. It features a 12V DC coil voltage with a switching current of 1A, configured as DPDT (Double Pole Double Throw) contacts. The relay's ultra-compact and slim form factor, with dimensions 10.6mm length, 9mm height, and 5.7mm width, makes it ideal for PCB mounting in tight spaces.
This fully sealed relay is built to withstand diverse operating environments, supporting a temperature range from -40°C to 85°C. Gold plated contact material ensures optimal conductivity and longevity, minimizing contact resistance.
The coil resistance of 976Ω and coil power of 140mW contribute to efficient energy use, helping reduce power consumption in electronic circuits. It is compliant with RoHS standards and meets North American Telcordia and FCC Part 68 certifications, providing assurance of quality and reliability.
Omron's G6J series relay is particularly suitable for use in telecommunications equipment, automation systems, testing instruments, and other industrial control systems where precision signal switching is critical. Its robustness and compliance with international standards make it a trusted choice for demanding applications.
Ultra compact and slim design ideal for PCB mounting applications. Fully sealed relay ensuring durability and protection against environmental factors. Operating temperature range from -40°C to 85°C for versatile industrial use.
Gold plated contacts enhance conductivity and resistance to wear. Coil power consumption is low at 140mW, improving energy efficiency. Complies with RoHS standards for environmental safety. Conforms to North American Telcordia and FCC specifications for impulse withstand voltage.
Suitable for Signal Relay applications in electronics, automation, telecom, and control systems. Explore the Electronics & Electricals category for more high-quality relays and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current of this relay is 1A.
The coil voltage for the G6J-2P-Y DC12 is 12V DC.
This model has dimensions of 10.6mm in length, 9mm in height, and 5.7mm in width.
It features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range is from -40°C to 85°C.
The coil resistance is 976Ω.
This relay is designed for PCB mounting.
It complies with RoHS standards and conforms to North American Telcordia and FCC specifications.
The coil power consumption is low at 140mW.
The contacts are made of gold-plated material, enhancing conductivity and wear resistance.
This relay is suitable for applications in electronics, automation, telecom, and control systems.
The maximum switching DC voltage is 110V and the maximum switching AC voltage is 125V.
