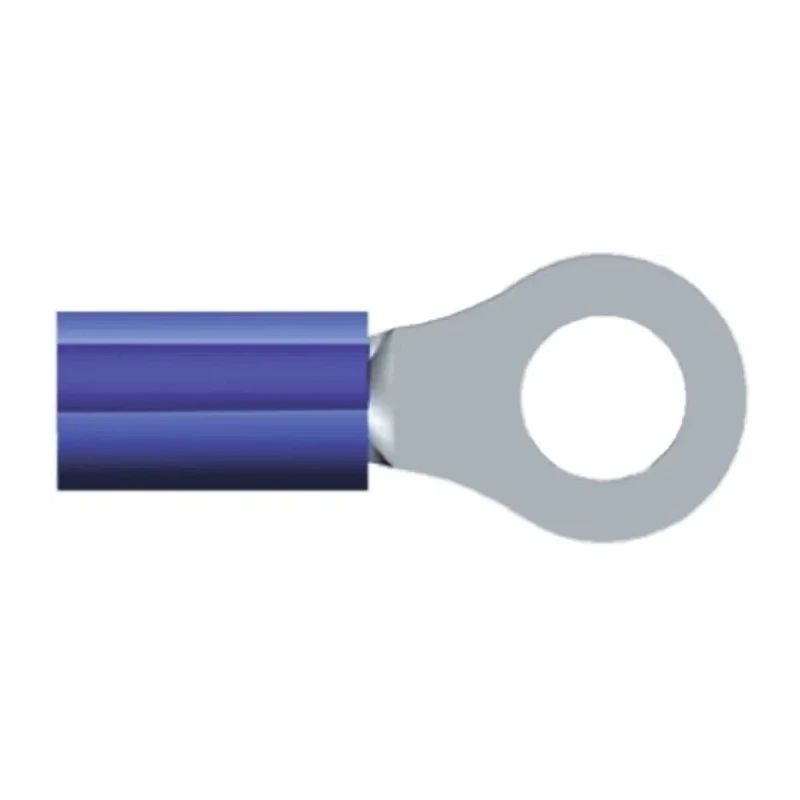

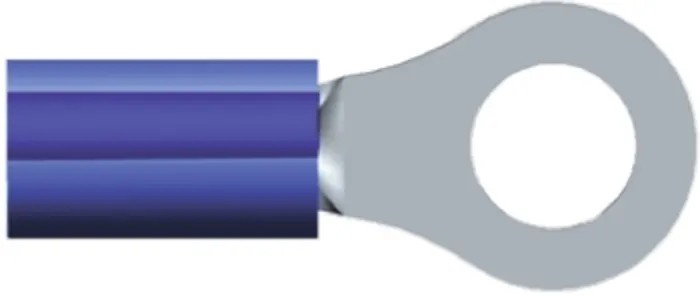

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG to 14 AWG Wire Size Blue 1-51864-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 23.01mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body ensuring reliable electrical performance.
- Nylon insulation sleeve is color-coded blue for easy wire size identification.
- Copper sleeve inside barrel provides enhanced wire insulation support and prevents fraying.
- Precision serrated barrel ensures maximum contact and tensile strength after crimping.
- Funnelled wire entry allows quick and easy wire insertion during assembly.
- Suitable for a broad range of applications including instruments, lighting, motors, aerospace, and panel boxes.
- Meets RoHS compliance and withstands maximum operating temperature of 105°C.
Product Description
TE Connectivity 1-51864-0 PIDG Insulated Ring Terminal is designed for wire sizes ranging from 16 AWG to 14 AWG with an M4 stud size and features a blue nylon insulation sleeve. This ring terminal provides a dependable and uniform crimp suitable for demanding electrical environments.
The terminal comprises a high conductivity copper body with a tin-plated contact surface, offering excellent electrical connectivity and corrosion resistance. The internal copper sleeve enhances wire insulation support and prevents wire strands from fraying, ensuring durability and safety.
The barrel includes serrations that provide high contact and tensile strength after crimping, enhancing mechanical stability. Its funnelled wire entry design facilitates rapid wire insertion, supporting high-volume manufacturing processes.
This Ring Terminal conforms to the RoHS directive, making it environmentally compliant, and has a maximum operating temperature rating of 105°C, suitable for various electrical assemblies.
Applications include instruments and control panels, lighting systems, power supplies, aerospace equipment, transportation, motors, appliances, and general electrical wiring tasks. Its versatile design meets or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements, assuring quality and reliability.
High conductivity copper construction ensures excellent electrical performance. Blue nylon insulation sleeve color-codes wire size and provides mechanical protection. Copper sleeve inside barrel supports wire insulation and prevents fraying.
Serrated barrel design offers strong tensile strength and uniform crimping. Funnelled wire entry improves wire insertion speed during production. RoHS compliant and rated for maximum operating temperature of 105°C. Suitable for industrial, aerospace, transportation, and general electrical applications.
EnvMart offers this product as part of its extensive range of electronic components and power connectors, providing quality and reliability for professional electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is designed for wire sizes ranging from 16 AWG to 14 AWG.
The stud size for this terminal is M4.
It features a high conductivity copper body with a tin-plated contact surface and a nylon insulation sleeve.
The maximum operating temperature is rated at 105°C.
This product is RoHS compliant, ensuring it meets environmental standards.
The overall length of this terminal is 23.01 mm.
The barrel includes precision serrations that provide strong tensile strength and ensure a uniform crimp after installation.
It is suitable for various applications including instruments, lighting systems, motors, aerospace equipment, and general electrical wiring tasks.
The inner ring diameter is 4.34 mm and the outer ring diameter is 7.92 mm.
The insulation material is nylon, which provides mechanical protection and is color-coded blue for easy identification.
The funnelled wire entry allows for quick and easy wire insertion, facilitating high-volume manufacturing processes.
The minimum wire size is 1 mm² and the maximum wire size is 2.6 mm².
